THERMALRIGHT

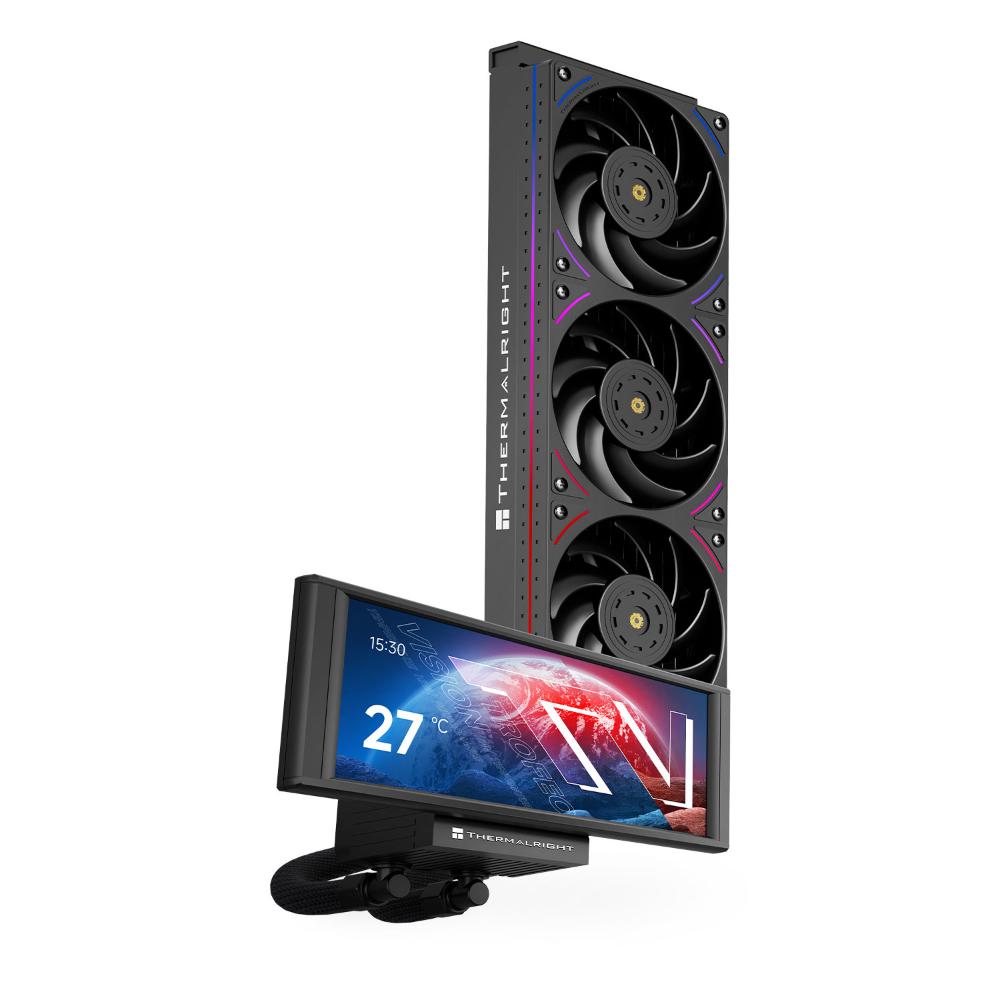

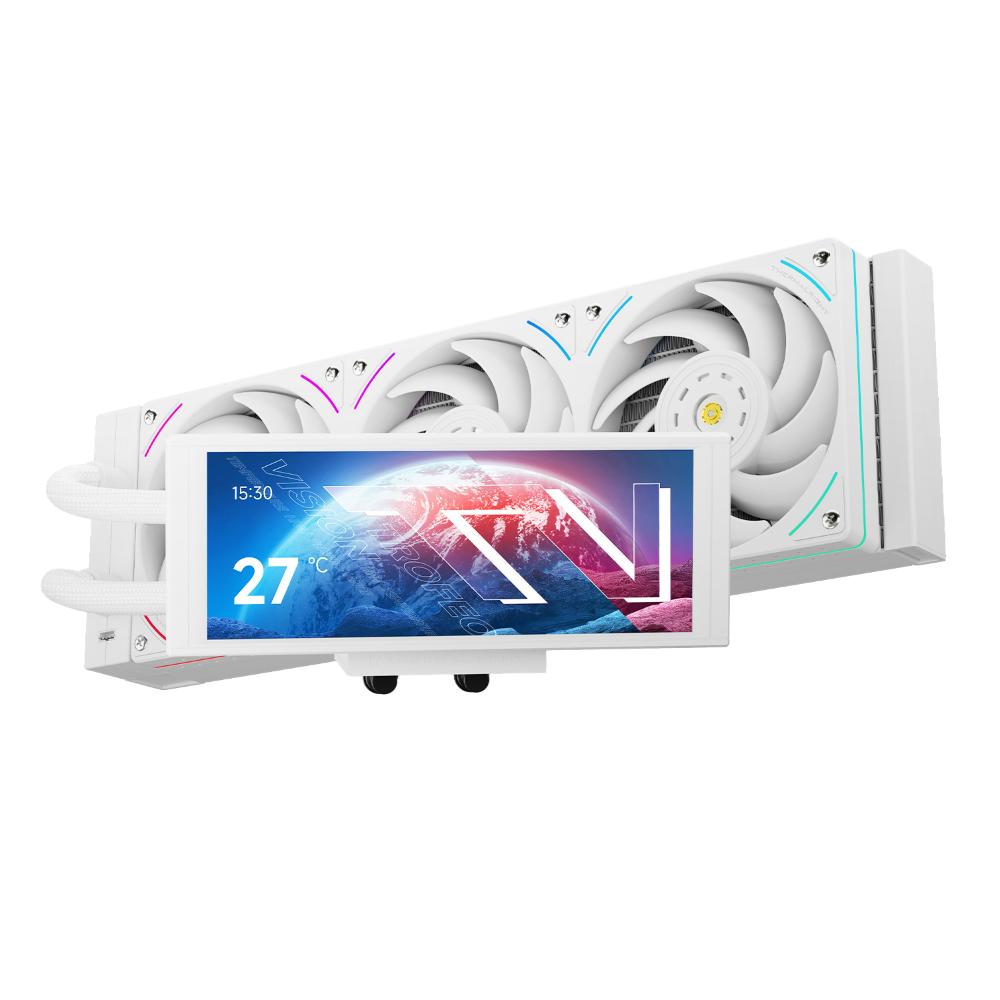

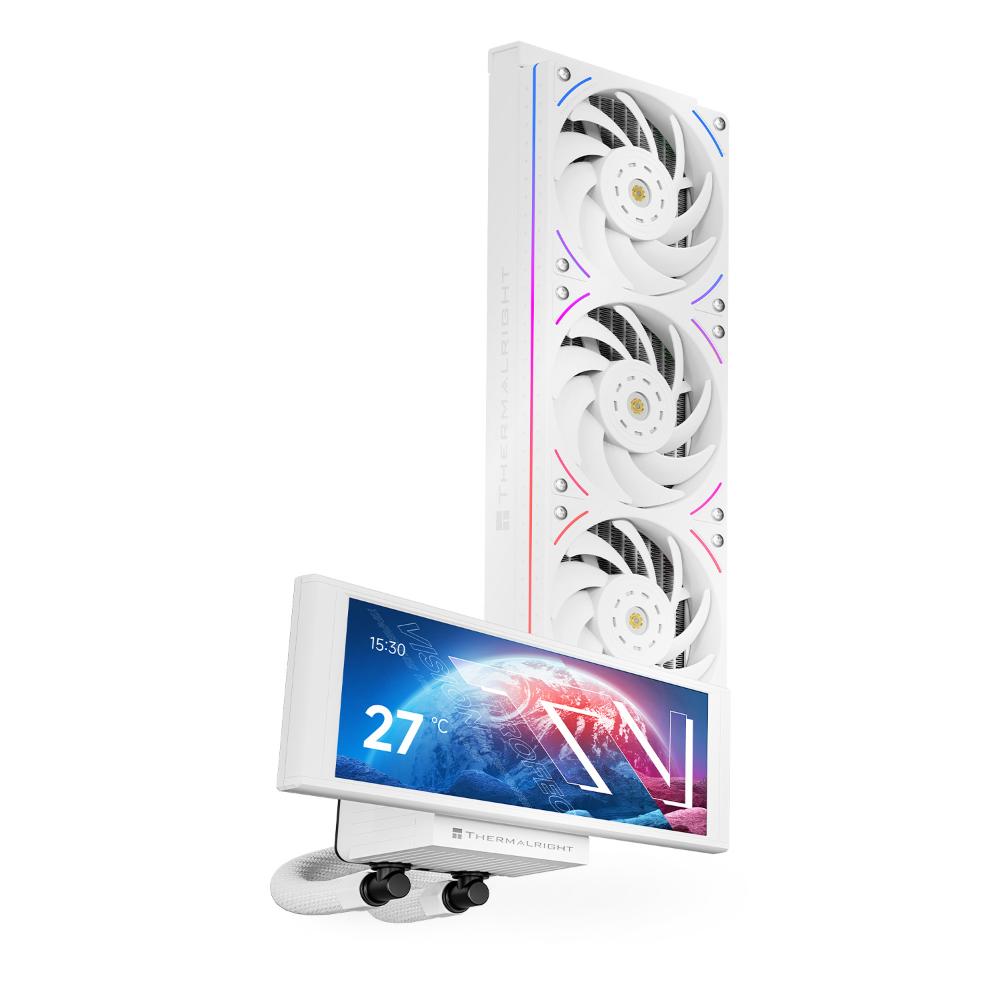

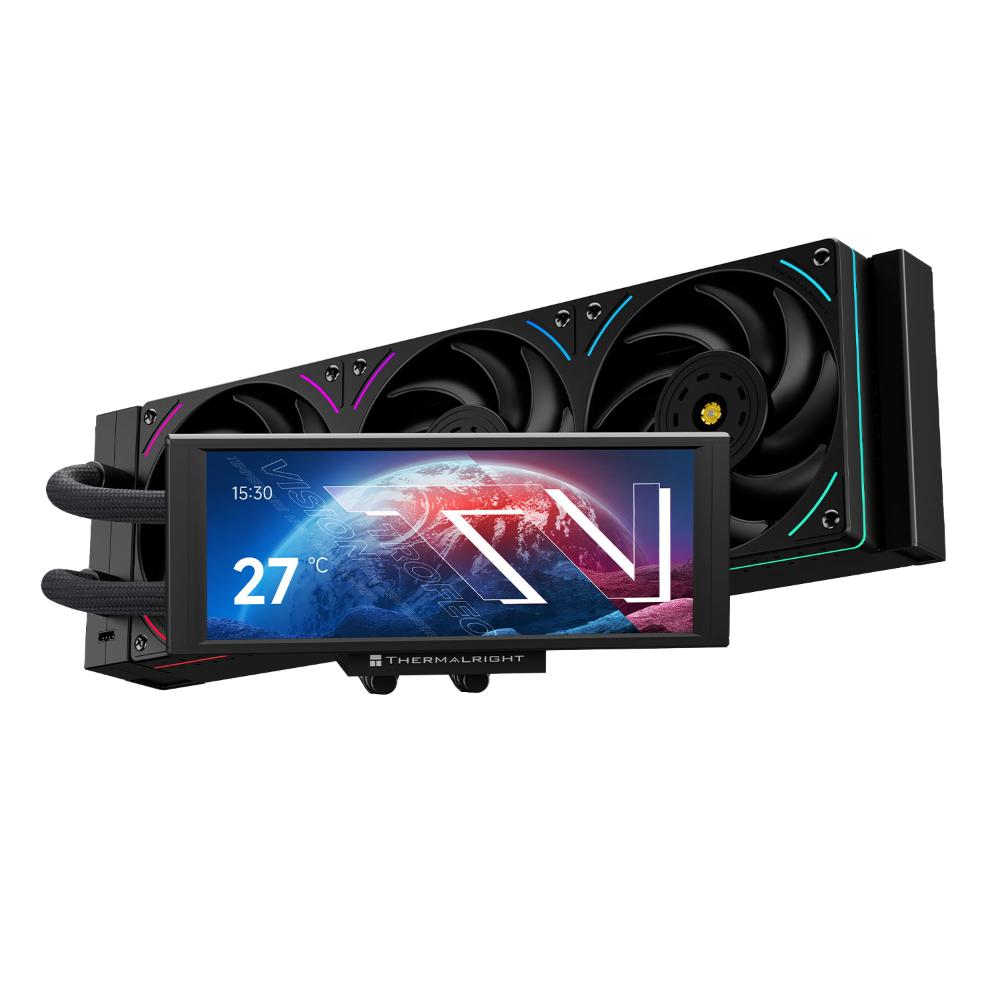

Thermalright Trofeo Vision 360 ARGB White & Black 360mm AIO Liquid CPU Cooler | 6.86" LCD Screen
Thermalright Trofeo Vision 360 ARGB White & Black 360mm AIO Liquid CPU Cooler | 6.86" LCD Screen
Couldn't load pickup availability
The Thermalright Trofeo Vision 360 ARGB White & Black is a premium 360mm all-in-one liquid CPU cooler featuring a large 6.86-inch LCD display, high-speed 6400RPM pump, aluminum radiator, and a TL-UB36W wireless-splicing fan assembly.
Designed for high-performance gaming and custom PC builds, the Trofeo Vision 360 combines a large-format 1280 × 480 LCD screen, high-airflow ARGB fans, PWM control, and broad Intel and AMD CPU compatibility in a distinctive white-and-black design.
Key Features
6.86-Inch Large-Format LCD Display
The Trofeo Vision 360 features an integrated 6.86-inch display with a 1280 × 480 resolution.
The large-format screen provides an expansive visual area on the pump assembly, making it a prominent feature of the cooling system and custom PC build.
High-Speed 6400RPM Pump
The pump is rated for up to 6400 RPM ±10%, providing high-speed coolant circulation through the 360mm liquid cooling system.
The pump assembly measures 187.2 × 81.7 × 81mm and operates at 12V DC through a 4-pin PWM connector.
360mm Aluminum Radiator
The cooler uses an aluminum radiator measuring 403 × 120 × 27mm, providing a large cooling surface for compatible 360mm radiator installations.
TL-UB36W Wireless-Splicing Fan Assembly
The Trofeo Vision 360 includes the TL-UB36W fan assembly, measuring 360 × 120 × 25mm.
The wireless-splicing design provides a streamlined fan configuration while reducing the need for multiple individual fan connections around the radiator.
High Airflow & Static Pressure
The TL-UB36W is rated for up to 2150 RPM ±10%, delivering maximum airflow of 69 × 3 CFM and maximum air pressure of 2.87 mm H₂O.
The fans have a maximum specified noise level of 27 dBA.
ARGB Lighting
The TL-UB36W fans feature a 3-pin 5V ARGB connector for connection to compatible ARGB lighting systems.
Fan speed is controlled through the 4-pin PWM connector.
S-FDB V2 Bearing
The TL-UB36W fan assembly uses an S-FDB V2 bearing, providing the specified bearing design for the included radiator fan system.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Thermalright Trofeo Vision 360 ARGB White & Black |
| Cooler Type | 360mm AIO Liquid CPU Cooler |
| Pump Dimensions | L187.2 × W81.7 × H81 mm |
| Pump Rated Speed | 6400 RPM ±10% MAX |
| Screen Size | 6.86-Inch |
| Screen Resolution | 1280 × 480 |
| Pump Rated Voltage | 12V DC |
| Pump Connector | 4-Pin PWM |
| Radiator Dimensions | L403 × W120 × H27 mm |
| Radiator Material | Aluminum |
| Fan Model | TL-UB36W |
| Fan Dimensions | L360 × W120 × H25 mm |
| Fan Rated Speed | 2150 RPM ±10% MAX |
| Fan Noise Level | 27 dBA MAX |
| Fan Airflow | 69 × 3 CFM MAX |
| Fan Air Pressure | 2.87 mm H₂O MAX |
| Fan Connector | 4-Pin PWM |
| ARGB Connector | 3-Pin 5V |
| Bearing Type | S-FDB V2 Bearing |
| Color | White & Black |
| Warranty | 2 Years |
LCD Display
The integrated 6.86-inch LCD screen features a 1280 × 480 resolution, providing a large visual interface directly on the pump assembly.
Its wide-format display gives the Trofeo Vision 360 a distinctive appearance within custom gaming and enthusiast PC builds.
Fan & Cooling System
The Trofeo Vision 360 combines a 360mm aluminum radiator with the TL-UB36W wireless-splicing fan assembly.
The cooling system provides:
- 403 × 120 × 27mm aluminum radiator
- TL-UB36W fan assembly
- Up to 2150 RPM ±10% fan speed
- 69 × 3 CFM maximum airflow
- 2.87 mm H₂O maximum air pressure
- 27 dBA maximum noise level
- 6400 RPM ±10% pump speed
- 4-pin PWM fan control
- 3-pin 5V ARGB lighting
- S-FDB V2 bearing
- Wireless-splicing fan design
Compatibility
Intel
- LGA115X
- LGA1200
- LGA1700
- LGA1851
- LGA2011
- LGA2066
AMD
- AM4
- AM5
Ideal For
The Thermalright Trofeo Vision 360 ARGB is suitable for:
- High-performance gaming PCs
- Enthusiast desktop systems
- Custom PC builds
- White and black themed gaming PCs
- ARGB gaming setups
- 360mm liquid cooling installations
- Builds featuring a large-format LCD display
- Performance-focused Intel and AMD systems
Package Contents
The supplied specifications do not provide a complete package-content list. Package contents should therefore be confirmed according to the specific retail package.
Warranty
2 YEARS WARRANTY
