Thermalright Wonder Vision 360 Turbo ARGB Black & White 360mm AIO Liquid CPU Cooler | 6.67" Display | 2400×1080 Resolution | 6400RPM Pump
Thermalright Wonder Vision 360 Turbo ARGB Black & White 360mm AIO Liquid CPU Cooler | 6.67" Display | 2400×1080 Resolution | 6400RPM Pump
Couldn't load pickup availability
The Thermalright Wonder Vision 360 Turbo ARGB Black & White is a high-performance 360mm all-in-one liquid CPU cooler featuring a large 6.67-inch display, high-speed 6400RPM pump, aluminum radiator, and three high-performance TL-K12-X28-R9 Turbo PWM fans.
Designed for demanding gaming PCs and custom desktop builds, the Wonder Vision 360 Turbo combines a 2400 × 1080 display, extremely high airflow, high static pressure, ARGB lighting, and broad Intel and AMD CPU compatibility.
Key Features
6.67-Inch High-Resolution Display
The Wonder Vision 360 Turbo features a large 6.67-inch display with a 2400 × 1080 resolution, providing a detailed visual interface integrated into the pump assembly.
The large-format screen gives the cooler a distinctive appearance within gaming and enthusiast PC builds.
High-Speed 6400RPM Pump
The pump is rated for up to 6400 RPM ±10%, providing high-speed coolant circulation through the 360mm liquid cooling system.
The pump measures 120.1 × 80 × 107mm, operates at 12V DC, and uses a 4-pin PWM connector.
360mm Aluminum Radiator
The cooler features an aluminum radiator measuring 403 × 120 × 27mm, providing a large cooling surface for compatible 360mm radiator installations.
TL-K12-X28-R9 Turbo Fans
The Wonder Vision 360 Turbo uses TL-K12-X28-R9 Turbo fans measuring 120 × 120 × 28mm.
Each fan reaches up to an impressive 3000 RPM ±10%, providing up to 120.38 CFM airflow and 4.93 mm H₂O air pressure.
High Static Pressure
With up to 4.93 mm H₂O air pressure, the TL-K12-X28-R9 Turbo fans are designed to provide strong airflow through the radiator's fin stack.
ARGB Lighting
The Turbo fans feature a 3-pin 5V ARGB connector, allowing the lighting system to connect to compatible ARGB platforms.
Fan speed is controlled through the 4-pin PWM connector.
Dual Ball Bearing
The TL-K12-X28-R9 Turbo fans use a Dual Ball Bearing design.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Thermalright Wonder Vision 360 Turbo ARGB Black & White |
| Cooler Type | 360mm AIO Liquid CPU Cooler |
| Pump Dimensions | L120.1 × W80 × H107 mm |
| Pump Rated Speed | 6400 RPM ±10% MAX |
| Screen Size | 6.67-Inch |
| Screen Resolution | 2400 × 1080 |
| Pump Rated Voltage | 12V DC |
| Pump Connector | 4-Pin PWM |
| Radiator Dimensions | L403 × W120 × H27 mm |
| Radiator Material | Aluminum |
| Fan Model | TL-K12-X28-R9 Turbo |
| Fan Dimensions | L120 × W120 × H28 mm |
| Fan Rated Speed | 3000 RPM ±10% MAX |
| Fan Noise Level | 44.7 dBA MAX |
| Fan Airflow | 120.38 CFM MAX |
| Fan Air Pressure | 4.93 mm H₂O MAX |
| Fan Connector | 4-Pin PWM |
| ARGB Connector | 3-Pin 5V |
| Bearing Type | Dual Ball Bearing |
| Color | Black & White |
| Warranty | 2 Years |

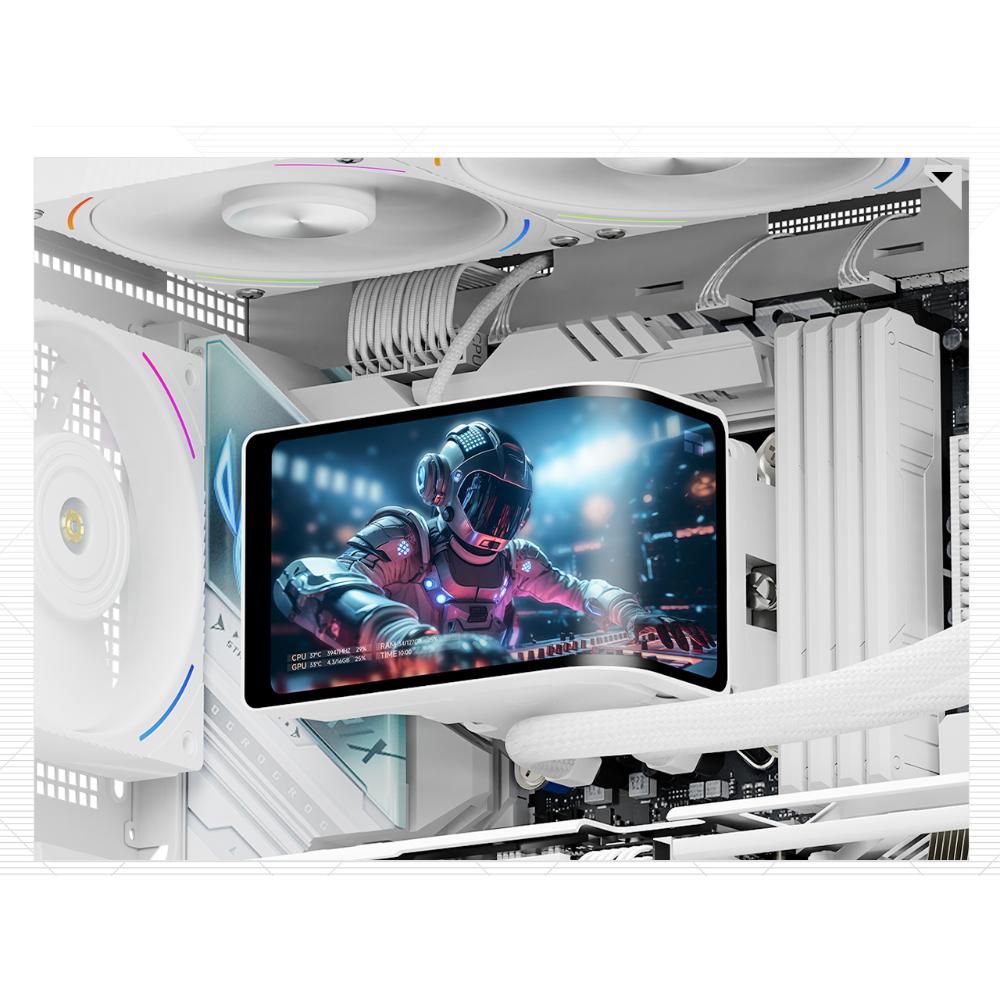

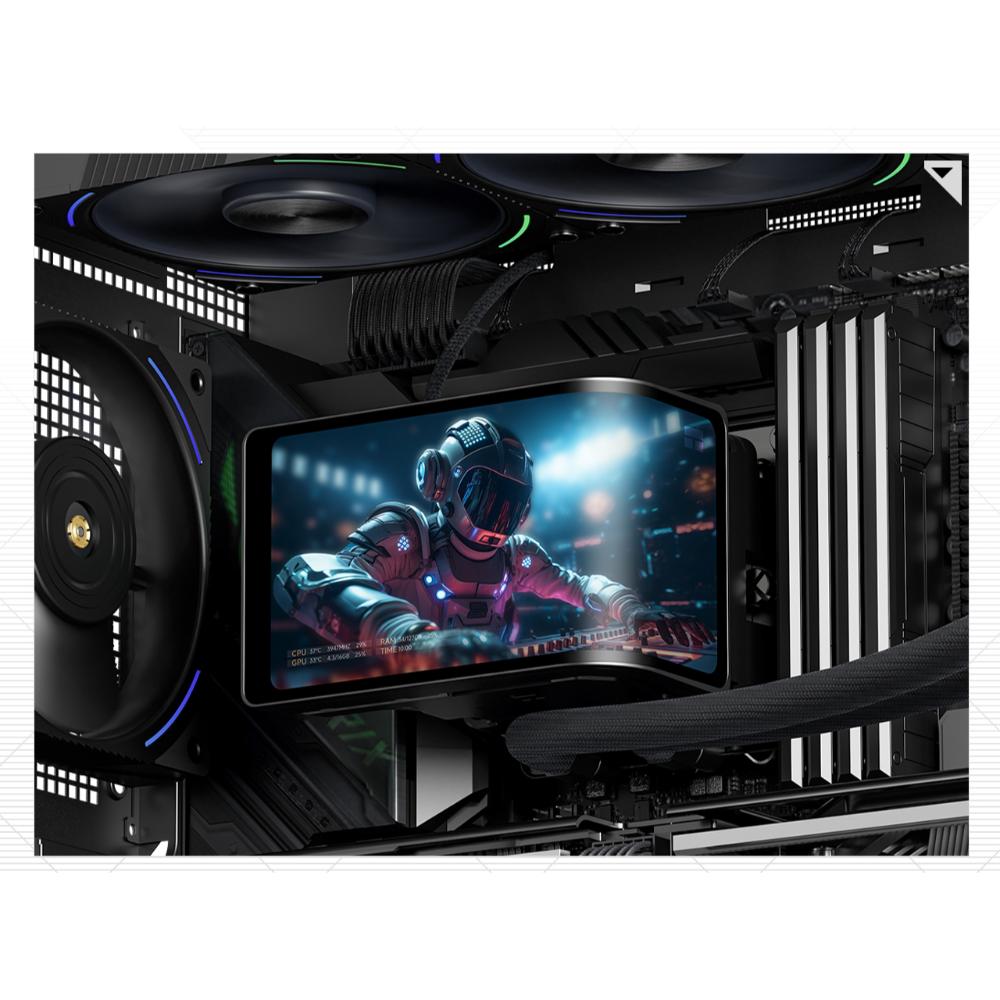

Display
The integrated 6.67-inch display features a 2400 × 1080 resolution, providing a large high-resolution visual interface on the pump assembly.
Its expansive display gives the Wonder Vision 360 Turbo a distinctive presence in custom gaming and enthusiast PC configurations.
Fan & Cooling System
The Wonder Vision 360 Turbo combines its 360mm aluminum radiator with high-performance TL-K12-X28-R9 Turbo fans.
The cooling system provides:
- 403 × 120 × 27mm aluminum radiator
- 6400 RPM ±10% maximum pump speed
- 3000 RPM ±10% maximum fan speed
- 120.38 CFM maximum airflow per fan
- 4.93 mm H₂O maximum air pressure
- 44.7 dBA maximum noise level
- 4-pin PWM fan control
- 3-pin 5V ARGB lighting
- Dual Ball Bearing fans
ARGB Lighting
The TL-K12-X28-R9 Turbo fans feature 5V 3-pin ARGB connectivity, allowing the cooler's lighting to be integrated with compatible ARGB components in a gaming PC.
The fans use 4-pin PWM connections for fan-speed control.
Compatibility
Intel
- LGA115X
- LGA1200
- LGA1700
- LGA1851
- LGA2011
- LGA2066
AMD
- AM4
- AM5
Ideal For
The Thermalright Wonder Vision 360 Turbo ARGB is suitable for:
- High-performance gaming PCs
- Enthusiast desktop systems
- Custom PC builds
- Black and white themed gaming PCs
- ARGB gaming setups
- 360mm liquid cooling installations
- Systems requiring high-airflow radiator fans
- Builds featuring a large high-resolution display
- Performance-focused Intel and AMD systems
Package Contents
The supplied specifications do not provide a complete package-content list. Package contents should therefore be confirmed according to the specific retail package.
Warranty
2 YEARS WARRANTY
Warranty coverage is subject to applicable manufacturer warranty terms and conditions.
