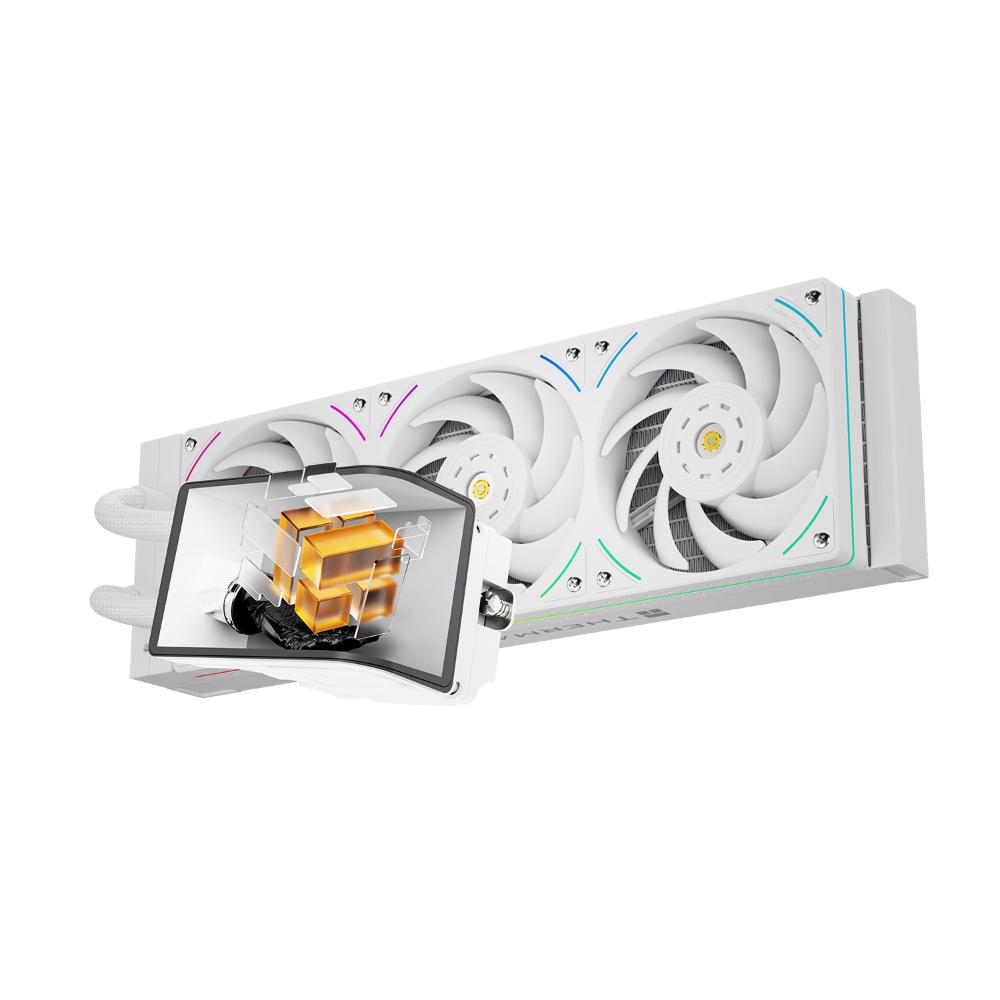

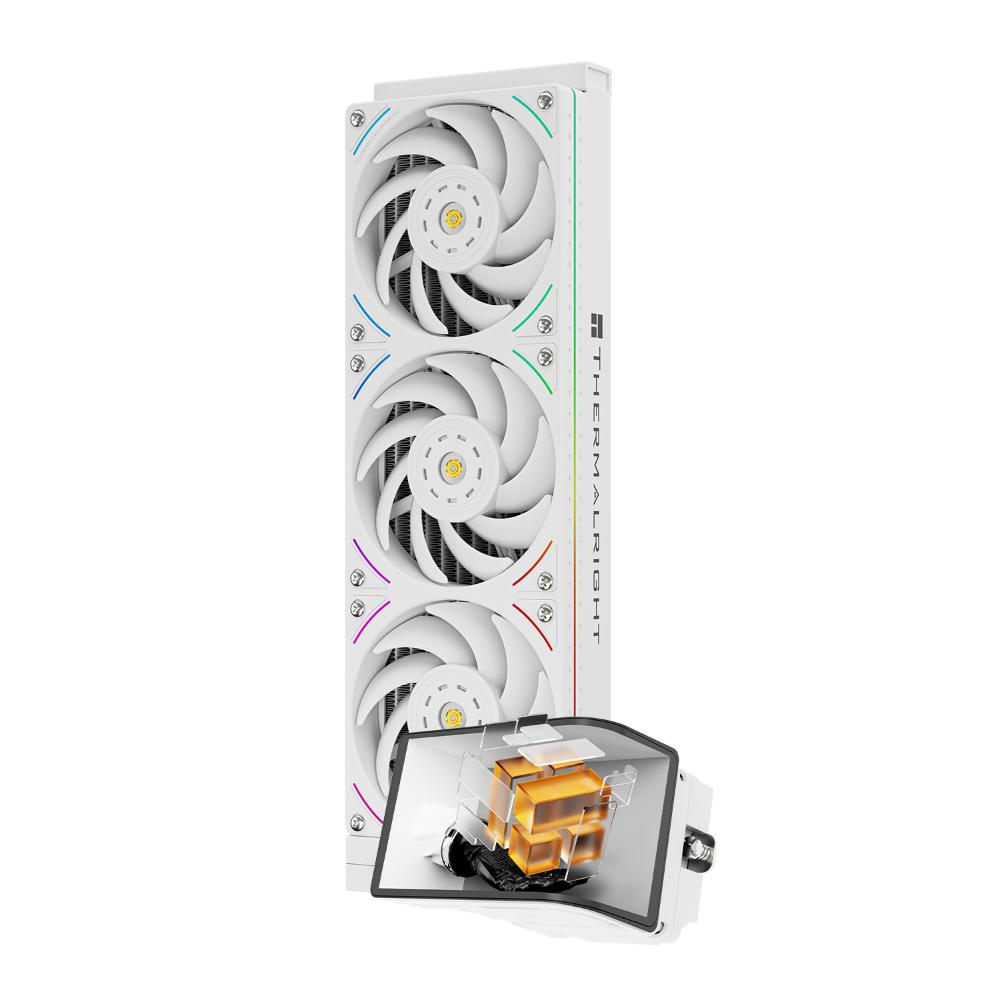

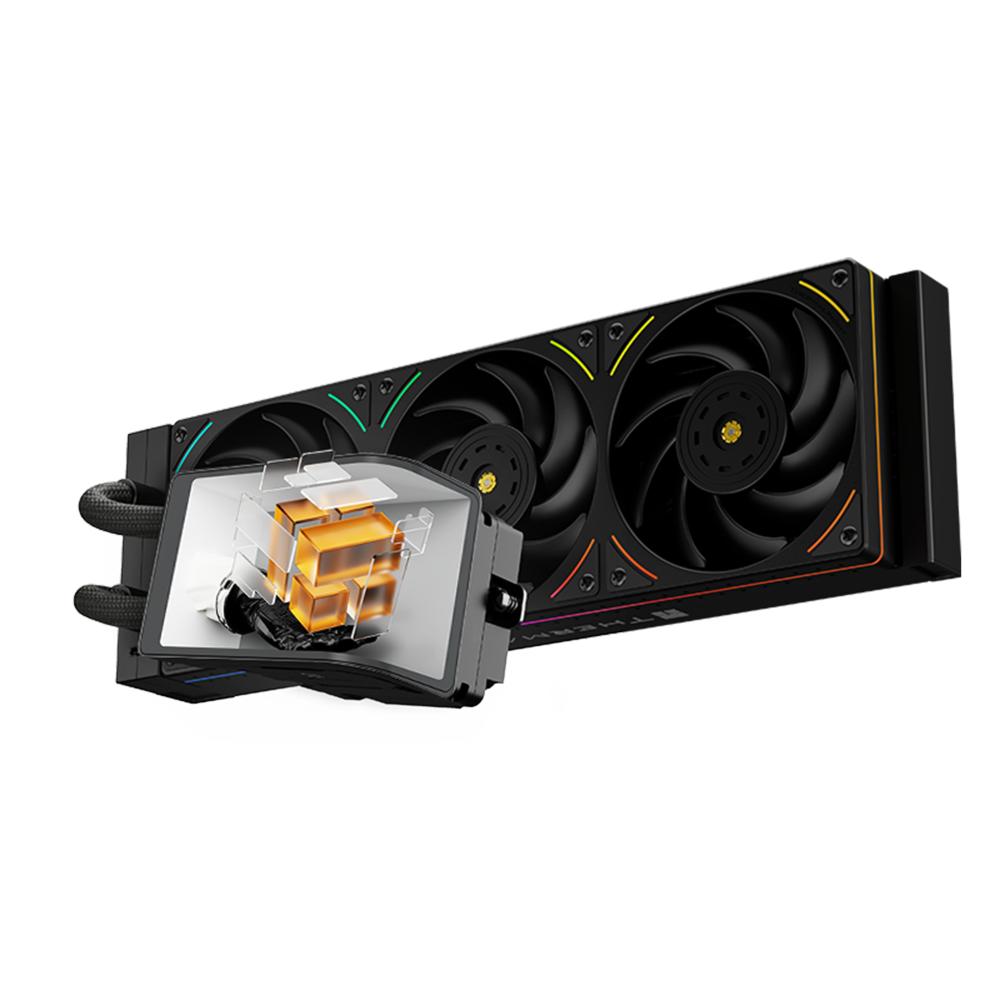

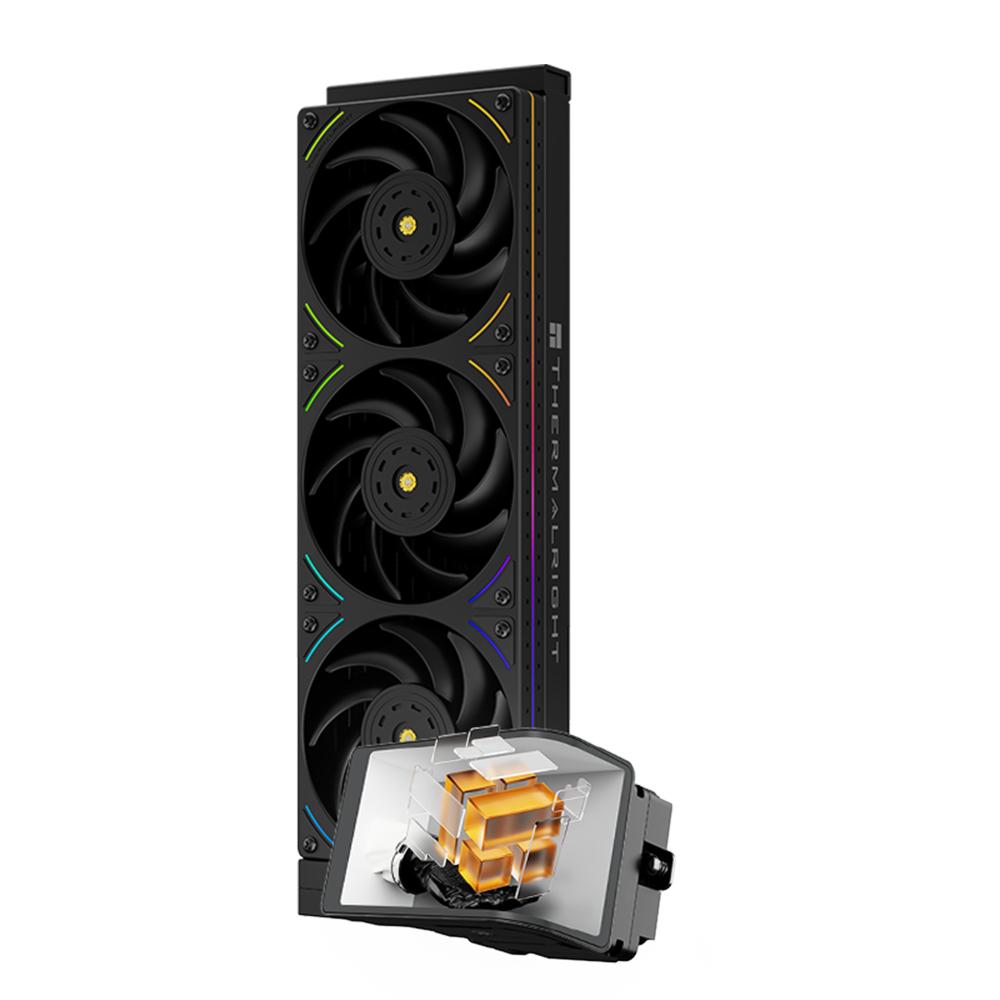

Thermalright Wonder Vision 360 UB ARGB Black & White 360mm AIO Liquid CPU Cooler | 6.67" Display | 2400×1080 Resolution
Thermalright Wonder Vision 360 UB ARGB Black & White 360mm AIO Liquid CPU Cooler | 6.67" Display | 2400×1080 Resolution
Couldn't load pickup availability
The Thermalright Wonder Vision 360 UB ARGB Black & White is a 360mm all-in-one liquid CPU cooler featuring a large 6.67-inch display, high-speed 6400RPM pump, aluminum radiator, and TL-UB36 wireless-splicing fan assembly.
Designed for high-performance gaming PCs and custom desktop builds, the Wonder Vision 360 UB combines a high-resolution 2400 × 1080 display, high-airflow PWM fans, ARGB lighting, and broad Intel and AMD CPU compatibility in a distinctive black-and-white design.
Key Features
6.67-Inch High-Resolution Display
The Wonder Vision 360 UB features an integrated 6.67-inch display with an impressive 2400 × 1080 resolution, providing a large and detailed visual area on the pump assembly.
The large display gives the cooler a distinctive visual presence in custom gaming and enthusiast PC builds.
High-Speed 6400RPM Pump
The pump is rated for up to 6400 RPM ±10%, providing high-speed coolant circulation through the 360mm liquid cooling system.
The pump measures 120.1 × 80 × 107mm, operates at 12V DC, and uses a 4-pin PWM connector.
360mm Aluminum Radiator
The cooler features an aluminum radiator measuring 403 × 120 × 27mm, providing a substantial cooling surface for compatible 360mm radiator installations.
TL-UB36 Wireless-Splicing Fan Assembly
The Wonder Vision 360 UB uses the TL-UB36 fan assembly, measuring 360 × 120 × 25mm.
The wireless-splicing fan design provides a streamlined radiator fan configuration and helps reduce cable clutter during installation.
High Airflow & Static Pressure
The TL-UB36 fan assembly is rated for up to 2150 RPM ±10%, with maximum airflow of 69 × 3 CFM and maximum air pressure of 2.87 mm H₂O.
The maximum specified fan noise level is 27 dBA.
ARGB Lighting
The TL-UB36 uses a 3-pin 5V ARGB connector, allowing the fan lighting to connect with compatible ARGB systems.
Fan control is provided through a 4-pin PWM connector.
S-FDB V2 Bearing
The TL-UB36 fan assembly uses an S-FDB V2 bearing, providing the specified bearing design for the radiator cooling system.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Thermalright Wonder Vision 360 UB ARGB Black & White |
| Cooler Type | 360mm AIO Liquid CPU Cooler |
| Pump Dimensions | L120.1 × W80 × H107 mm |
| Pump Rated Speed | 6400 RPM ±10% MAX |
| Screen Size | 6.67-Inch |
| Screen Resolution | 2400 × 1080 |
| Pump Rated Voltage | 12V DC |
| Pump Connector | 4-Pin PWM |
| Radiator Dimensions | L403 × W120 × H27 mm |
| Radiator Material | Aluminum |
| Fan Model | TL-UB36 |
| Fan Dimensions | L360 × W120 × H25 mm |
| Fan Rated Speed | 2150 RPM ±10% MAX |
| Fan Noise Level | 27 dBA MAX |
| Fan Airflow | 69 × 3 CFM MAX |
| Fan Air Pressure | 2.87 mm H₂O MAX |
| Fan Connector | 4-Pin PWM |
| ARGB Connector | 3-Pin 5V |
| Bearing Type | S-FDB V2 Bearing |
| Color | Black & White |
| Warranty | 2 Years |
Display
The integrated 6.67-inch display features a 2400 × 1080 resolution, providing a large, high-resolution visual interface on the pump assembly.
Its expansive display area makes the Wonder Vision 360 UB a prominent component in custom gaming and enthusiast PC configurations.
Fan & Cooling System
The Wonder Vision 360 UB combines its 360mm aluminum radiator with the TL-UB36 fan assembly.
The cooling system provides:
- 403 × 120 × 27mm aluminum radiator
- 6400 RPM ±10% maximum pump speed
- 2150 RPM ±10% maximum fan speed
- 69 × 3 CFM maximum airflow
- 2.87 mm H₂O maximum air pressure
- 27 dBA maximum noise level
- 4-pin PWM fan control
- 3-pin 5V ARGB lighting
- S-FDB V2 bearing
- Wireless-splicing fan design
Compatibility
Intel
- LGA115X
- LGA1200
- LGA1700
- LGA1851
- LGA2011
- LGA2066
AMD
- AM4
- AM5
Ideal For
The Thermalright Wonder Vision 360 UB ARGB is suitable for:
- High-performance gaming PCs
- Enthusiast desktop systems
- Custom PC builds
- Black and white themed gaming PCs
- ARGB gaming setups
- 360mm liquid cooling installations
- Builds featuring a large high-resolution display
- Performance-focused Intel and AMD systems
Package Contents
The supplied specifications do not provide a complete package-content list. Package contents should therefore be confirmed according to the specific retail package.
Warranty
2 YEARS WARRANTY
Warranty coverage is subject to applicable manufacturer warranty terms and conditions.
