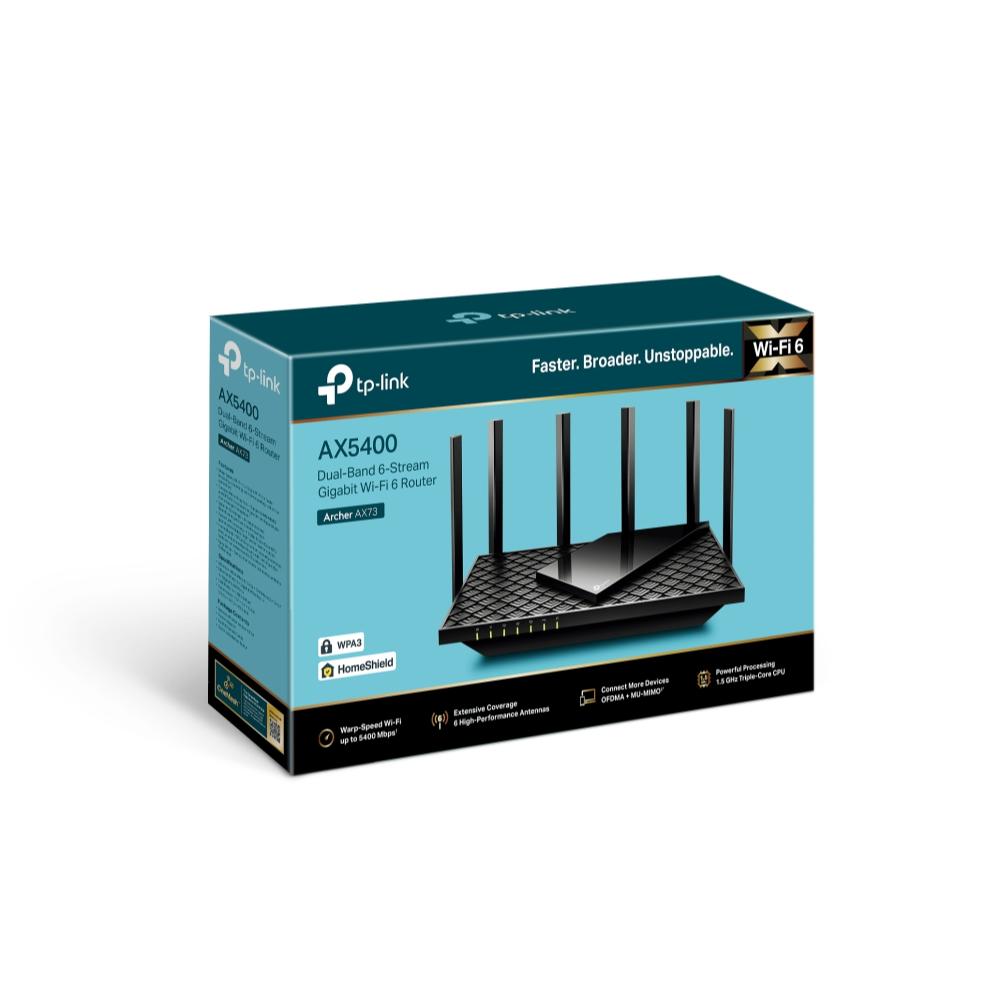

TP-Link Archer AX73 AX5400 Dual-Band Gigabit Wi-Fi 6 Router | 5400Mbps | 6-Stream | 4×4 MU-MIMO | OFDMA | 160MHz | USB 3.0 | OneMesh | HomeShield

The TP-Link Archer AX73 is an AX5400 Dual-Band 6-Stream Gigabit Wi-Fi 6 Router designed to deliver high-speed wireless connectivity, greater network capacity, and extensive home coverage. With combined wireless speeds of up to 5,378Mbps, 6 high-performance antennas, 4×4 MU-MIMO, OFDMA, HE160, and high-power FEM technology, it is designed to handle multiple connected devices, streaming, gaming, and demanding home networking applications.

The Archer AX73 also features TP-Link HomeShield security, OneMesh support, a USB 3.0 port, Gigabit Ethernet, VPN functionality, parental controls, and easy management through the TP-Link Tether app.

Key Features

AX5400 Wi-Fi 6 Performance

The Archer AX73 uses Wi-Fi 6 technology to provide high-speed wireless connectivity with a combined AX5400 class wireless rate:

• 5GHz: Up to 4,804Mbps
• 2.4GHz: Up to 574Mbps
• Total: AX5400

The 5GHz band supports 802.11ax HE160 for high-speed wireless connections on compatible devices.

Smooth 8K Streaming & Gaming

The high wireless throughput is designed for simultaneous streaming, downloading, gaming, and browsing. Wi-Fi 6 technologies such as HE160 and 1024-QAM help increase wireless performance on compatible clients.

6-Stream Wi-Fi 6

The six-stream architecture enables simultaneous wireless transmission across multiple streams, providing additional bandwidth for connected devices.

Extensive Wi-Fi Coverage

The Archer AX73 combines:

• 6× fixed high-performance antennas
• High-Power FEM
• Beamforming
• 4T4R architecture

Beamforming concentrates wireless signal strength toward connected clients, while the antenna array and high-power FEM help extend coverage throughout the home.

Connect 200+ Devices

The Archer AX73 is designed for high-capacity networks with support for numerous connected devices.

OFDMA allows multiple devices to share transmission resources efficiently, while MU-MIMO enables simultaneous communication with multiple compatible clients.

According to the supplied specifications, the router can connect up to 128 devices on 5GHz and 96 devices on 2.4GHz, with actual performance depending on applications and environmental conditions.

4×4 MU-MIMO & OFDMA

Wi-Fi 6 technologies help improve network efficiency when multiple compatible devices are connected.

• 4×4 MU-MIMO: Communicates simultaneously with multiple MU-MIMO clients.
• OFDMA: Allows multiple Wi-Fi 6 clients to share transmission resources efficiently.
• Airtime Fairness: Helps improve network efficiency.
• DFS: Provides access to additional 5GHz channels where permitted.

TP-Link HomeShield Security

HomeShield provides network and IoT security features designed to protect connected devices and improve network management.

Features include:

• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner
• Parental Controls
• Quality of Service
• Connected Device Notifications
• Comprehensive Reports

HomeShield includes a Free Basic Plan, while additional Pro features may require a subscription.

Robust Parental Controls

HomeShield parental controls allow users to manage and customize internet access through features such as:

• Custom Profiles
• Content Filtering
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Pause the Internet
• Weekly & Monthly Reports
• Family Online Time Ranking

OneMesh Support

The Archer AX73 supports TP-Link OneMesh, allowing compatible TP-Link devices to work together to create a flexible whole-home Wi-Fi network.

OneMesh supports features including:

• Multi-Band Backhaul
• Smart Roaming
• Unified Management

USB 3.0 File & Media Sharing

A built-in USB 3.0 port supports storage sharing and private network storage functions.

Supported file systems include:

• NTFS
• exFAT
• HFS+
• FAT32

Supported functions include:

• Apple Time Machine
• FTP Server
• Media Server
• Samba Server

Gigabit Ethernet & Link Aggregation

The router includes:

• 1× Gigabit WAN port
• 4× Gigabit LAN ports

Static Link Aggregation (LAG) is supported using two LAN ports for compatible network configurations.

Multiple VPN Functions

The Archer AX73 supports VPN server and client functionality for:

• OpenVPN
• PPTP
• L2TP

Easy Setup with Tether App

The TP-Link Tether app allows users to configure and manage the Archer AX73 from compatible Android and iOS devices.

A web-based management interface is also available.

Improved Cooling Design

The Archer AX73 features an expanded ventilation design with approximately 167cm² (25in²) of ventilation area on the top surface to improve heat dissipation during operation.

Technical Specifications

Specification	Details
Model	Archer AX73
Wi-Fi Class	AX5400
Wi-Fi Standard	Wi-Fi 6
Wireless Standard	IEEE 802.11ax/ac/n/a 5GHz; IEEE 802.11ax/n/b/g 2.4GHz
5GHz Speed	Up to 4,804Mbps
2.4GHz Speed	Up to 574Mbps
Total Wireless Rate	AX5400
5GHz Technology	HE160
Antennas	6× Fixed High-Performance Antennas
MIMO	4×4 MU-MIMO
OFDMA	Yes
Beamforming	Yes
High-Power FEM	Yes
4T4R	Yes
Streams	6
Wi-Fi Capacity	High
Working Modes	Router Mode, Access Point Mode
OneMesh	Supported
WAN Port	1× Gigabit WAN
LAN Ports	4× Gigabit LAN
Link Aggregation	Static LAG via 2× LAN Ports
USB	1× USB 3.0
USB File Systems	NTFS, exFAT, HFS+, FAT32
VPN Server	OpenVPN, PPTP, L2TP
VPN Client	OpenVPN, PPTP, L2TP
Wi-Fi Encryption	WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
Guest Network	1× 5GHz, 1× 2.4GHz
Firewall	SPI Firewall
Parental Controls	HomeShield
QoS	QoS by Device
IP Protocols	IPv4, IPv6
WAN Types	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT Forwarding	Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server
IPTV	IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
DHCP	Address Reservation, DHCP Client List, DHCP Server
DDNS	TP-Link, NO-IP, DynDNS
Management	Tether App, Web Interface
Processor	1.5GHz Triple-Core CPU
Certifications	FCC, CE
Dimensions	272.5 × 147.2 × 49.2mm
Operating Temperature	0°C–40°C
Storage Temperature	-40°C–70°C
Operating Humidity	10%–90% Non-Condensing
Storage Humidity	5%–90% Non-Condensing

Network Security

The Archer AX73 incorporates multiple security and access-control technologies, including:

• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• WPA/WPA2/WPA3 security
• WPA/WPA2-Enterprise (802.1x)
• HomeShield Security
• IoT Protection
• Intrusion Prevention
• DDoS Attack Prevention
• Malicious Site Blocking

Management Features

The router can be managed through the TP-Link Tether App or web interface, with support for:

• Auto Firmware Upgrade
• TP-Link ID
• DDNS
• QoS by Device
• Parental Controls
• Guest Networks
• VPN Configuration
• OneMesh Management

Ideal For

• High-speed home Wi-Fi
• 8K streaming
• Online gaming
• Multiple-device households
• Smart home and IoT networks
• Work-from-home setups
• Home offices
• Large homes requiring extended Wi-Fi coverage
• High-capacity wireless networks
• Network storage and media sharing

Package Contents

• TP-Link Archer AX73 Wi-Fi Router
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
