TP-Link Archer AXE75 AXE5400 Tri-Band Wi-Fi 6E Router | Gigabit | 6 GHz | 1.7GHz Quad-Core | USB 3.0 | HomeShield | OneMesh

The TP-Link Archer AXE75 is an AXE5400 Tri-Band Gigabit Wi-Fi 6E Router designed to deliver high-speed wireless connectivity, greater network capacity, and lower latency across the 6 GHz, 5 GHz, and 2.4 GHz bands. With combined wireless speeds of up to 5378Mbps, six high-performance antennas, 160MHz channel support, OFDMA, Beamforming, and High-Power FEM technology, it is designed to handle multiple connected devices, streaming, gaming, and demanding home networking applications.

The Archer AXE75 also features a 1.7GHz 64-bit Quad-Core CPU, 512MB high-speed memory, TP-Link HomeShield security, OneMesh support, a USB 3.0 port, Gigabit Ethernet, VPN functionality, parental controls, and easy management through the TP-Link Tether app.

Key Features

AXE5400 Tri-Band Wi-Fi 6E Performance

The Archer AXE75 uses Wi-Fi 6E technology to provide high-speed wireless connectivity across three dedicated bands:

• 6GHz: Up to 2,402Mbps
• 5GHz: Up to 2,402Mbps
• 2.4GHz: Up to 574Mbps
• Total: AXE5400

The 6GHz and 5GHz bands support high-speed 802.11ax connectivity, while compatible devices can take advantage of 160MHz channels for increased throughput.

Wi-Fi 6E 6GHz Band

Wi-Fi 6E introduces the new 6GHz band, providing additional bandwidth with less overlap and interference from older wireless devices.

The Archer AXE75 is designed for applications such as:

• 4K and 8K streaming
• Online gaming
• AR/VR applications
• Video conferencing
• Large file transfers
• High-bandwidth home networking

1.7GHz Quad-Core Processing

The Archer AXE75 features a 1.7GHz 64-bit Quad-Core CPU combined with 512MB high-speed memory to provide fast processing for demanding network traffic and multiple connected devices.

160MHz & 6-Stream Wi-Fi

The router supports 160MHz channel bandwidth and a 6-stream wireless architecture, providing additional bandwidth for compatible Wi-Fi 6E devices.

Extensive Wi-Fi Coverage

The Archer AXE75 combines:

• 6× fixed high-performance antennas
• High-Power FEM
• Beamforming
• 6-stream architecture

Beamforming concentrates wireless signal strength toward connected clients, while the high-performance antenna array and High-Power FEM help strengthen wireless coverage.

Connect 200+ Devices

The Archer AXE75 is designed for high-capacity home networks and supports 200+ devices according to the supplied product information.

OFDMA enables simultaneous communication with multiple compatible Wi-Fi 6 clients, helping improve network efficiency and reduce congestion.

OFDMA & Airtime Fairness

Advanced Wi-Fi technologies help improve network performance when multiple devices are connected.

• OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients.
• Airtime Fairness: Improves network efficiency by limiting excessive occupation.
• DFS: Provides access to additional wireless channels where permitted.
• 6 Streams: Provides additional wireless bandwidth for compatible devices.

TP-Link HomeShield Security

HomeShield provides network and IoT security features designed to protect connected devices and improve network management.

Features include:

• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner
• Parental Controls
• Quality of Service

HomeShield includes a Free Basic Plan, while additional Pro features may require a subscription.

Robust Parental Controls

HomeShield parental controls provide tools for managing internet access and online activity.

Features include:

• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly & Monthly Reports

OneMesh Support

The Archer AXE75 supports TP-Link OneMesh, allowing compatible TP-Link OneMesh range extenders to work together with the router to create a flexible whole-home Wi-Fi network.

OneMesh provides:

• Wi-Fi Dead Zone Reduction
• Smart Roaming
• One Wi-Fi Name
• Unified Management

USB 3.0 File & Media Sharing

The built-in USB 3.0 port enables external storage sharing across the network.

Supported file systems include:

• NTFS
• exFAT
• HFS+
• FAT32

Supported functions include:

• Apple Time Machine
• FTP Server
• Media Server
• Samba Server

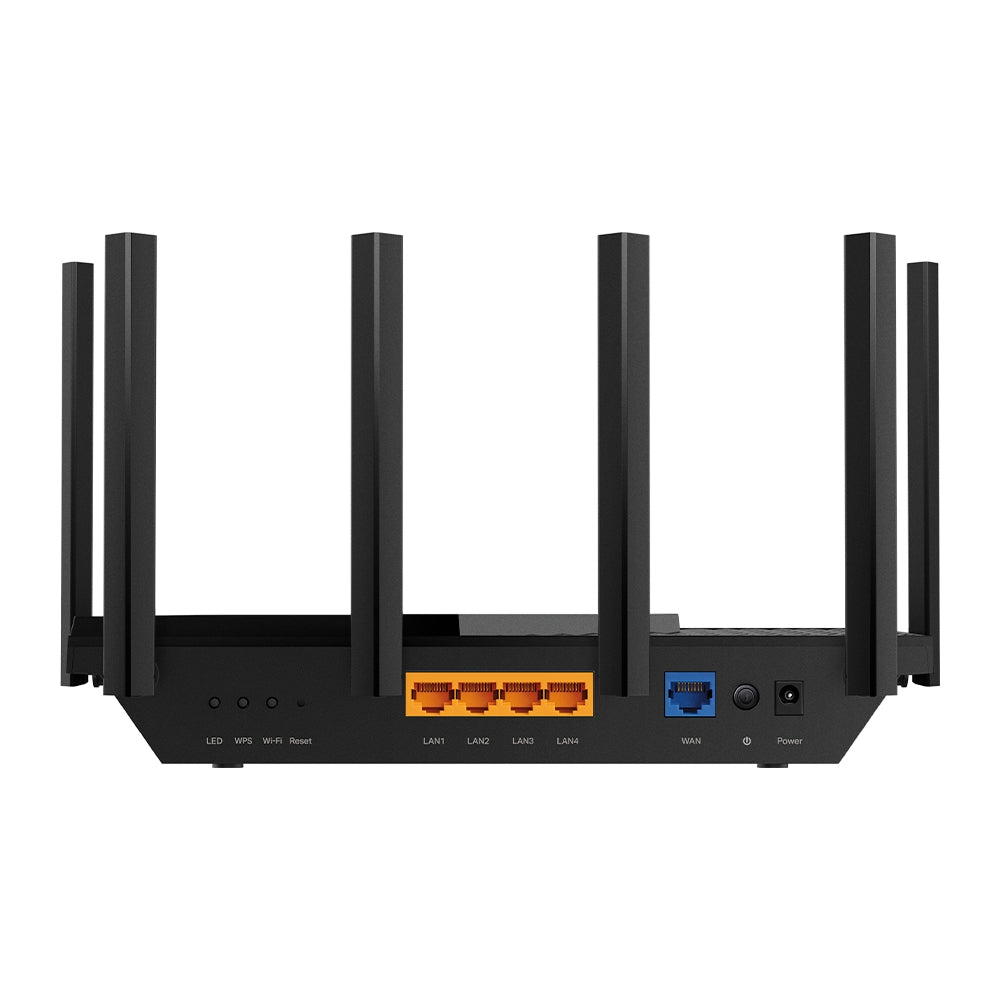

Gigabit Ethernet Connectivity

The Archer AXE75 includes:

• 1× Gigabit WAN Port
• 4× Gigabit LAN Ports

These Gigabit Ethernet ports provide wired connectivity for computers, gaming systems, smart TVs, access points, and other network devices.

Multiple VPN Functions

The Archer AXE75 supports VPN server and client functionality for:

VPN Server:

• OpenVPN
• PPTP
• L2TP

VPN Client:

• OpenVPN
• PPTP
• L2TP

Guest Networks

Separate guest networks are available for each wireless band:

• 1× 6GHz Guest Network
• 1× 5GHz Guest Network
• 1× 2.4GHz Guest Network

WPA3 Wireless Security

The Archer AXE75 supports modern wireless encryption technologies including:

• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)

Easy Setup with Tether App

The TP-Link Tether App allows users to configure and manage the Archer AXE75 from compatible Android and iOS devices.

A web-based management interface is also available for advanced network configuration.

Technical Specifications

Specification	Details
Model	Archer AXE75
Wi-Fi Class	AXE5400
Wi-Fi Standard	Wi-Fi 6E
Wireless Standard	IEEE 802.11ax 6GHz; IEEE 802.11ax/ac/n/a 5GHz; IEEE 802.11ax/n/b/g 2.4GHz
6GHz Speed	Up to 2,402Mbps
5GHz Speed	Up to 2,402Mbps
2.4GHz Speed	Up to 574Mbps
Total Wireless Rate	AXE5400
Wi-Fi Range	2–3 Bedroom Houses
Antennas	6× Fixed High-Performance Antennas
Beamforming	Yes
High-Power FEM	Yes
OFDMA	Yes
Airtime Fairness	Yes
DFS	Yes
Streams	6
160MHz	Supported
Wi-Fi Capacity	Very High
Working Modes	Router Mode, Access Point Mode
WAN Port	1× Gigabit WAN
LAN Ports	4× Gigabit LAN
USB	1× USB 3.0
USB File Systems	NTFS, exFAT, HFS+, FAT32
VPN Server	OpenVPN, PPTP, L2TP
VPN Client	OpenVPN, PPTP, L2TP
Wi-Fi Encryption	WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
Guest Network	1× 6GHz, 1× 5GHz, 1× 2.4GHz
Firewall	SPI Firewall
Security	Access Control, IP & MAC Binding, Application Layer Gateway
HomeShield	Supported
Parental Controls	HomeShield
QoS	QoS by Device
OneMesh	Supported
IP Protocols	IPv4, IPv6
WAN Types	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT Forwarding	Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server
IPTV	IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
DHCP	Address Reservation, DHCP Client List, DHCP Server
DDNS	TP-Link, NO-IP, DynDNS
Management	Tether App, Web Interface
Processor	1.7GHz 64-Bit Quad-Core CPU
Memory	512MB
Power	12V ⎓ 2.5A
Certifications	FCC
Dimensions	272.5 × 147.2 × 49.2mm
Operating Temperature	0°C–40°C
Operating Humidity	10%–90% Non-Condensing

Network Security

The Archer AXE75 incorporates multiple security and access-control technologies, including:

• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• WPA/WPA2/WPA3 Security
• WPA/WPA2-Enterprise (802.1x)
• HomeShield Security
• Real-Time IoT Protection
• Intrusion Prevention System
• DDoS Attack Prevention
• Malicious Site Blocking
• Home Network Scanner

Management Features

The router can be managed through the TP-Link Tether App or web interface, with support for:

• Auto Firmware Upgrade
• TP-Link ID
• DDNS
• QoS by Device
• HomeShield Parental Controls
• Guest Networks
• VPN Configuration
• OneMesh Management
• Network Device Management

Ideal For

• Wi-Fi 6E home networks
• High-speed broadband connections
• 4K and 8K streaming
• Online gaming
• AR/VR applications
• Video conferencing
• Multiple-device households
• Smart home and IoT networks
• Work-from-home setups
• Home offices
• High-bandwidth file transfers
• Network storage and media sharing
• Whole-home Wi-Fi expansion with OneMesh

Package Contents

• TP-Link Archer AXE75 Wi-Fi Router
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

Warranty

1 YEAR WARRANTY

Warranty coverage is subject to applicable manufacturer warranty terms and conditions.
