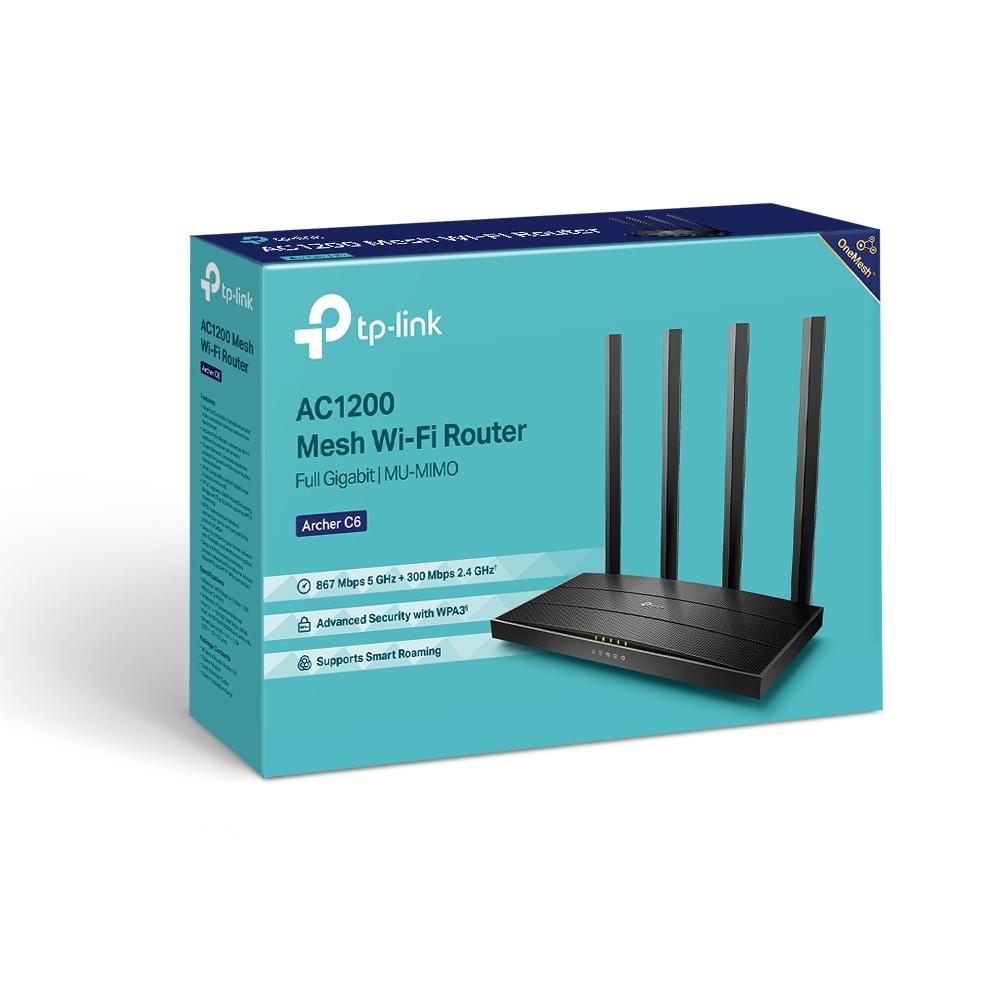

TP-Link Archer C6 AC1200 Wireless MU-MIMO Gigabit Router | Dual-Band Wi-Fi 5 | 867Mbps | MU-MIMO | Beamforming | OneMesh | Access Point Mode

The TP-Link Archer C6 AC1200 Wireless MU-MIMO Gigabit Router delivers reliable dual-band Wi-Fi performance for homes and small offices. With combined AC1200 wireless speeds of up to 867Mbps on 5GHz and 300Mbps on 2.4GHz, it provides flexible connectivity for browsing, streaming, online work, and everyday connected devices.

Featuring MU-MIMO technology, Beamforming, four high-performance external antennas, Gigabit Ethernet ports, OneMesh support, and Access Point Mode, the Archer C6 is designed to provide wider wireless coverage and efficient connectivity across multiple devices.

Key Features

AC1200 Dual-Band Wi-Fi

The Archer C6 provides simultaneous dual-band wireless connectivity with speeds of up to 867Mbps on the 5GHz band and 300Mbps on the 2.4GHz band. Dual-band operation allows compatible devices to connect to the band best suited to their requirements.

MU-MIMO Technology

MU-MIMO enables the router to communicate with multiple compatible devices simultaneously rather than serving devices sequentially. This helps improve network efficiency when several MU-MIMO clients are connected at the same time.

Four High-Performance External Antennas

The router uses 4× fixed high-performance antennas to create a signal-boosting wireless array designed to cover multiple directions and larger areas.

Beamforming Technology

Beamforming concentrates wireless signal strength toward connected clients, helping extend Wi-Fi coverage and improve wireless connectivity where supported.

Gigabit Ethernet Connectivity

The Archer C6 features 1× Gigabit WAN port and 4× Gigabit LAN ports, providing high-speed wired connectivity for computers, smart TVs, gaming systems, access points, and other Ethernet-enabled devices.

Access Point Mode

With Access Point Mode, the Archer C6 can transform an existing wired network connection into a wireless network, making it suitable for extending wireless connectivity from an existing network infrastructure.

OneMesh Support

TP-Link OneMesh™ allows compatible TP-Link devices to work together to create a more flexible whole-home wireless network without requiring replacement of the existing network ecosystem.

Easy Management with TP-Link Tether

The router can be managed through the TP-Link Tether App or web-based management interface, providing convenient access to network configuration and management features.

Technical Specifications

Specification	Details
Model	TP-Link Archer C6
Wireless Standard	Wi-Fi 5 / IEEE 802.11ac/n/a 5GHz; IEEE 802.11n/b/g 2.4GHz
Wireless Class	AC1200
5GHz Speed	Up to 867Mbps
2.4GHz Speed	Up to 300Mbps
Wireless Bands	Dual-Band
Antennas	4× Fixed High-Performance Antennas
Beamforming	Supported
MU-MIMO	Supported
Airtime Fairness	Supported
Wi-Fi Capacity	Medium
Wi-Fi Range	3 Bedroom Houses
Working Modes	Router Mode, Access Point Mode
WAN Port	1× Gigabit WAN
LAN Ports	4× Gigabit LAN
Processor	Dual-Core CPU
OneMesh™	Supported
Guest Networks	1× 5GHz Guest Network, 1× 2.4GHz Guest Network
VPN Server	OpenVPN, PPTP
Wi-Fi Encryption	WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
Power Supply	12V ⎓ 1A
Dimensions	215 × 117 × 32 mm
Certifications	FCC, CE

Network Security

The Archer C6 provides multiple security and network-control features to help manage connected devices and network traffic.

• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• WPA / WPA2 / WPA3 encryption
• WPA/WPA2-Enterprise with 802.1x
• 5GHz Guest Network
• 2.4GHz Guest Network
• OpenVPN Server
• PPTP VPN Server

Management Features

Parental Controls

Manage internet access using:

• URL Filtering
• Time Controls

Quality of Service

QoS by Device allows network traffic to be managed according to connected devices.

WAN Connection Types

The Archer C6 supports:

• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

NAT Forwarding

Network forwarding features include:

• Virtual Servers
• Port Forwarding
• Port Triggering
• DMZ
• UPnP

IPTV Support

Supported IPTV functions include:

• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN

DHCP

• Address Reservation
• DHCP Client List
• DHCP Server

DDNS

Supported DDNS services include:

• TP-Link
• NO-IP
• DynDNS

Cloud & Remote Management

• OTA Firmware Upgrade
• TP-Link ID
• DDNS
• TP-Link Tether App
• Web-Based Management

Hardware & Physical Specifications

Specification	Details
Processor	Dual-Core CPU
WAN	1× Gigabit WAN Port
LAN	4× Gigabit LAN Ports
Power Input	12V ⎓ 1A
Buttons	WPS/Wi-Fi, Power On/Off, Reset
Dimensions	215 × 117 × 32 mm
Operating Temperature	0°C–40°C
Storage Temperature	-40°C–70°C
Operating Humidity	10%–90% non-condensing
Storage Humidity	5%–90% non-condensing
Certifications	FCC, CE

Ideal For

The TP-Link Archer C6 is suitable for:

• Home Wi-Fi networks
• Small offices
• Apartments and 3-bedroom homes
• Streaming and everyday internet use
• Multiple connected devices
• Gigabit wired networking
• Wireless network expansion using Access Point Mode
• TP-Link OneMesh network setups
• Users requiring MU-MIMO and Beamforming

Package Contents

• TP-Link Archer C6 AC1200 Wi-Fi Router
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

Important Wireless Performance Note

Maximum wireless signal rates are physical rates derived from IEEE 802.11 specifications. Actual wireless throughput and coverage may vary depending on environmental factors, network conditions, interference, traffic, router placement, network complexity, client limitations, and other factors.

MU-MIMO functionality requires compatible client devices.

Warranty

Warranty coverage is subject to applicable manufacturer warranty terms and conditions.
