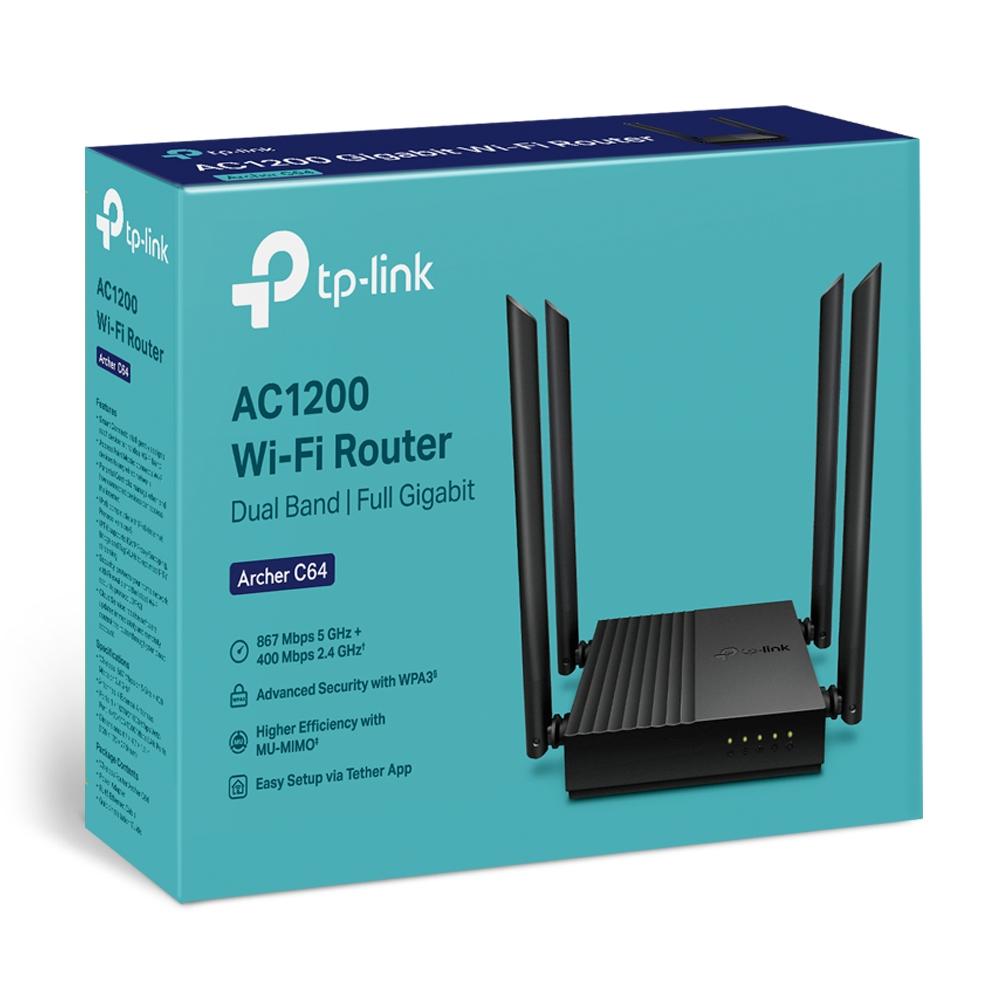

TP-Link Archer C64 AC1200 Wireless MU-MIMO WiFi Router | Dual Band WiFi 5 | 867Mbps 5GHz | 400Mbps 2.4GHz | Gigabit Ports | WPA3 | EasyMesh | Access Point Mode

The TP-Link Archer C64 is an AC1200 dual-band wireless MU-MIMO WiFi router designed to provide reliable wireless connectivity, Gigabit wired networking, and improved WiFi coverage for homes and small networks.

It delivers wireless speeds of up to 867Mbps on the 5GHz band and 400Mbps on the 2.4GHz band, allowing connected devices to use the appropriate frequency for everyday browsing, streaming, gaming, and other network activities.

With four high-performance external antennas, Beamforming, MU-MIMO, Smart Connect, Airtime Fairness, WPA3 security, Gigabit Ethernet, EasyMesh support, and Access Point mode, the Archer C64 provides a flexible networking solution for modern connected homes.

Key Features

AC1200 Dual-Band WiFi

The Archer C64 supports WiFi 5 (802.11ac) with combined AC1200 wireless speeds:

• 5GHz: Up to 867Mbps

• 2.4GHz: Up to 400Mbps

The 5GHz band is suitable for bandwidth-intensive activities such as video streaming and online gaming, while the 2.4GHz band provides reliable connectivity for web browsing, email, and other everyday tasks.

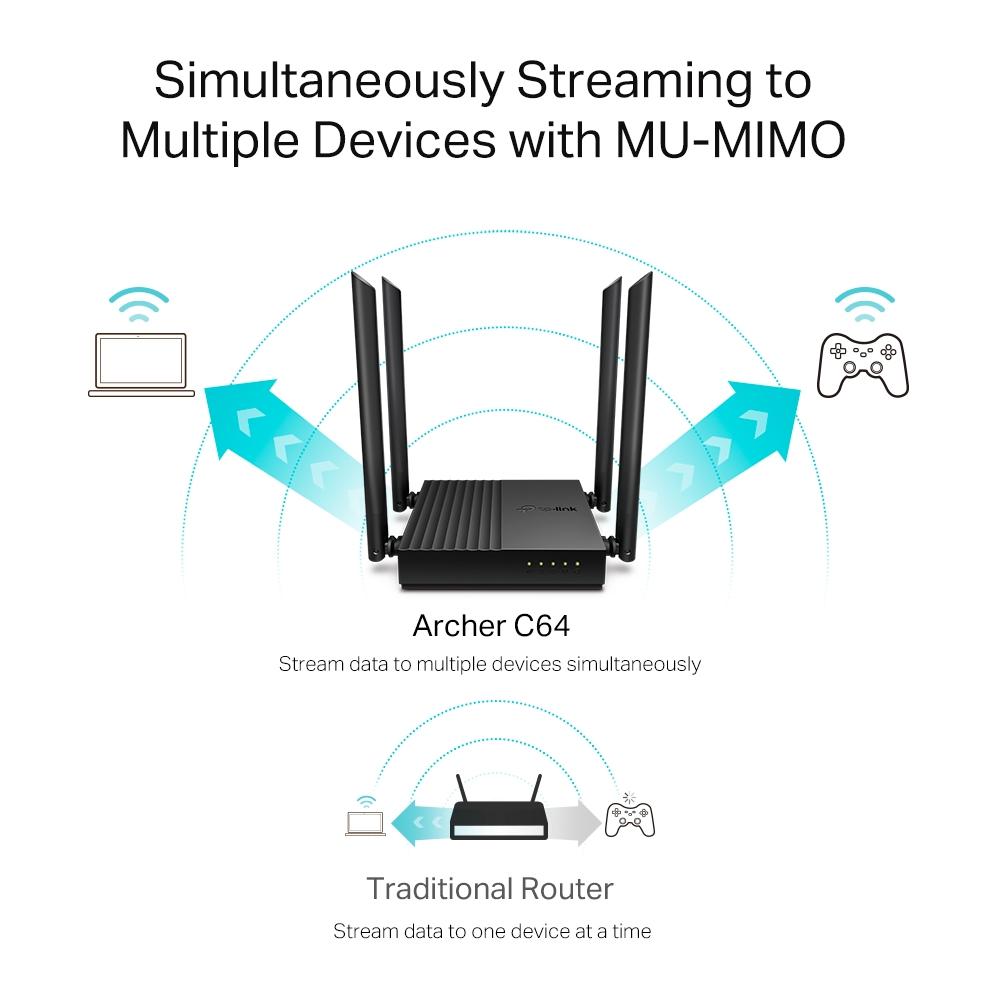

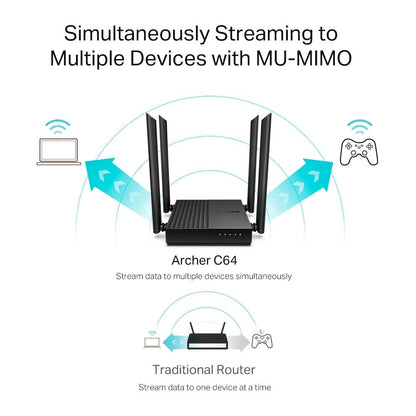

MU-MIMO Technology

MU-MIMO allows the Archer C64 to communicate with multiple compatible devices simultaneously, helping improve network efficiency and stability when several devices are connected.

MU-MIMO requires compatible client devices.

Four High-Performance Antennas

Four fixed external antennas form a signal-boosting array designed to provide wider wireless coverage across the home.

Beamforming Technology

Beamforming detects connected devices and concentrates wireless signal strength toward them to help improve WiFi range and connection performance.

Gigabit Ethernet Ports

The Archer C64 features 1× Gigabit WAN port and 4× Gigabit LAN ports, providing fast wired connectivity for PCs, smart TVs, game consoles, and other network devices.

WPA3 WiFi Security

The router supports WPA3, providing enhanced wireless security and improved protection for WiFi networks.

It also supports WPA, WPA2, and WPA/WPA2-Enterprise (802.1x) encryption.

EasyMesh Support

Archer C64 can build an EasyMesh network with compatible EasyMesh devices, allowing multiple compatible devices to work together under one network name for expanded coverage and smoother roaming.

Access Point Mode

The Archer C64 supports Access Point mode, allowing it to transform an existing wired network into a wireless network.

Smart Connect & Airtime Fairness

Smart Connect can direct clients to the less congested wireless band, while Airtime Fairness improves network efficiency by limiting excessive occupation of wireless resources.

TP-Link Tether App

The TP-Link Tether app provides convenient network management through compatible Android and iOS devices. The router can also be managed through its web interface.

WiFi Performance

Wireless Band	WiFi Standard	Maximum Speed
5GHz	IEEE 802.11ac/n/a	Up to 867Mbps
2.4GHz	IEEE 802.11n/b/g	Up to 400Mbps
Total Class	AC1200	1200Mbps

Actual wireless throughput and coverage may vary depending on environmental factors, network conditions, network traffic, product placement, client device capabilities, and other factors.

Wireless Coverage & Capacity

The Archer C64 is specified for coverage suitable for 3-bedroom houses and features:

• 4× Fixed High-Performance Antennas

• Beamforming

• Dual-Band WiFi

• MU-MIMO

• Airtime Fairness

• Medium WiFi capacity

These technologies work together to provide wireless connectivity across multiple areas and connected devices.

Network Security

The Archer C64 provides multiple network security features for protecting connected devices and managing network access.

Security Features

• SPI Firewall

• Access Control

• IP & MAC Binding

• WPA

• WPA2

• WPA3

• WPA/WPA2-Enterprise (802.1x)

Guest Network

The router supports separate guest networks for both wireless bands:

• 1× 2.4GHz Guest Network

• 1× 5GHz Guest Network

Advanced Networking Features

Parental Controls

Parental Controls provide:

• URL Filtering

• Time Controls

These features can be used to help manage internet access and online usage.

Quality of Service

QoS by Device allows network traffic to be managed according to connected devices.

IPv6 Support

The Archer C64 supports both IPv4 and IPv6, helping provide compatibility with modern network environments.

IPTV Support

The router supports:

• IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN

These features help support IPTV network configurations.

NAT Forwarding

Supported NAT forwarding features include:

• Port Forwarding

• Port Triggering

• UPnP

• DMZ

DDNS

The Archer C64 supports:

• TP-Link DDNS

• NO-IP

• DynDNS

Management Features

The Archer C64 can be managed through:

• TP-Link Tether App

• Web-based management interface

• TP-Link ID

• DDNS

• OTA Firmware Upgrade

The router can be configured through a web browser or managed using the Tether application on compatible Android and iOS devices.

Working Modes

The Archer C64 supports two working modes:

• Router Mode

• Access Point Mode

Access Point mode allows the router to provide wireless connectivity through an existing wired network.

Technical Specifications

Specification	Details
Product	TP-Link Archer C64
Wireless Class	AC1200
WiFi Standard	WiFi 5 / IEEE 802.11ac
5GHz Speed	Up to 867Mbps
2.4GHz Speed	Up to 400Mbps
Wireless Antennas	4× Fixed High-Performance Antennas
MU-MIMO	Yes
Beamforming	Yes
Smart Connect	Yes
Airtime Fairness	Yes
WiFi Capacity	Medium
WiFi Coverage	3 Bedroom Houses
Working Modes	Router Mode / Access Point Mode
WAN Port	1× Gigabit WAN
LAN Ports	4× Gigabit LAN
Processor	1.2GHz CPU
WiFi Security	WPA / WPA2 / WPA3 / WPA/WPA2-Enterprise (802.1x)
Guest Network	1× 2.4GHz / 1× 5GHz
Firewall	SPI Firewall
Parental Controls	URL Filtering / Time Controls
QoS	QoS by Device
IPv4 / IPv6	Supported
EasyMesh	Supported
IPTV	IGMP Proxy / IGMP Snooping / Bridge / Tag VLAN
NAT Forwarding	Port Forwarding / Port Triggering / UPnP / DMZ
DDNS	TP-Link / NO-IP / DynDNS
Power	12V ⎓ 1A
Buttons	WPS / Reset
Dimensions	120 × 120 × 27.9mm
Operating Temperature	0°C–40°C
Operating Humidity	10%–90% non-condensing
Storage Humidity	5%–90% non-condensing
Certification	CE

EasyMesh Networking

With EasyMesh support, the Archer C64 can work with compatible EasyMesh devices to create an expanded wireless network.

EasyMesh allows compatible devices to work under a single network name while helping eliminate WiFi dead zones and provide smoother roaming between network points.

Ideal For

• Home WiFi networks

• 3-bedroom houses

• Online gaming

• 4K video streaming

• Smart TVs and gaming consoles

• PCs and laptops

• Multiple-device households

• IPTV users

• Gigabit internet connections

• Existing wired networks requiring Access Point mode

• EasyMesh network expansion

Package Contents

• TP-Link Archer C64 Wireless Router

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide

Warranty

Warranty coverage is subject to the applicable TP-Link manufacturer warranty terms and conditions.
