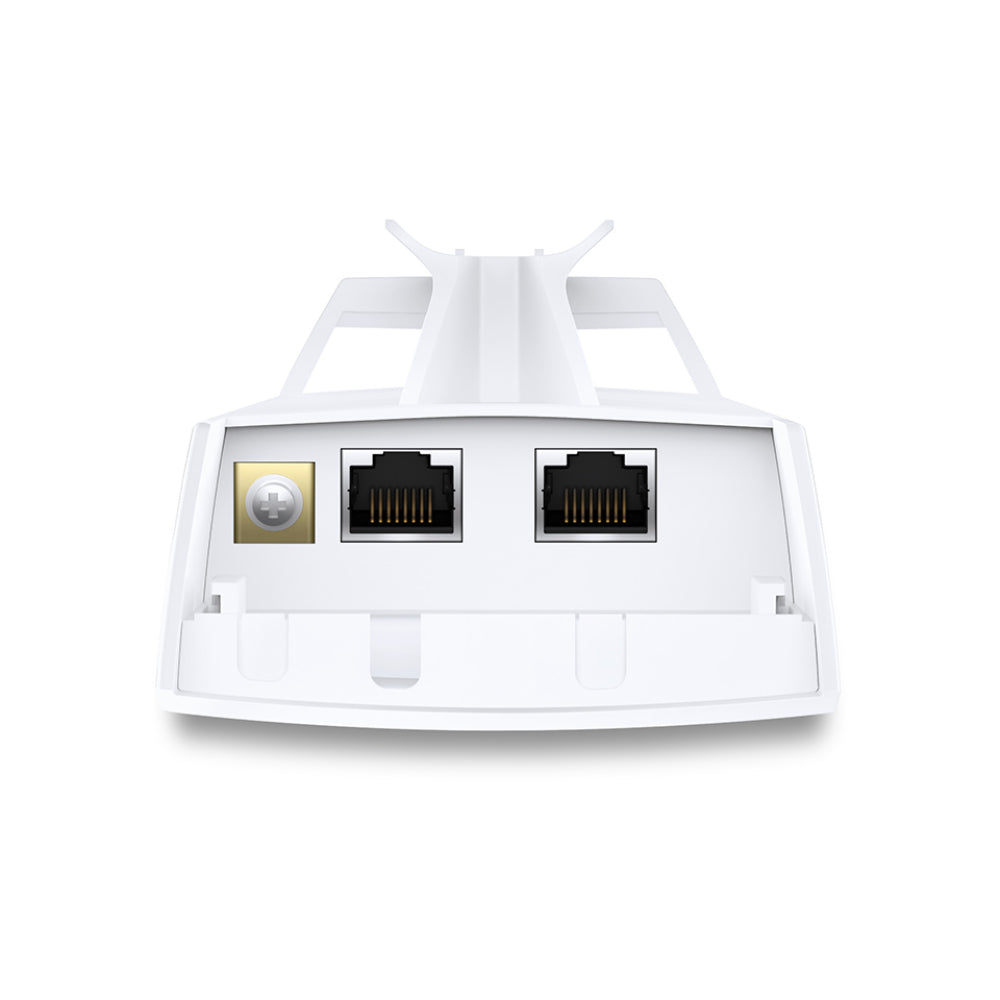

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE | Long Range 13km+ | 2×2 MIMO | Pharos MAXtream | Passive PoE | Pharos Control

The TP-Link CPE220 is a professional 2.4GHz outdoor wireless CPE designed for long-distance wireless networking, point-to-point (PTP), point-to-multipoint (PTMP), and outdoor Wi-Fi coverage applications. It combines a built-in 12dBi 2×2 dual-polarized directional MIMO antenna, high-power transmission, enterprise-grade Qualcomm Atheros hardware, and TP-Link Pharos networking technologies for reliable outdoor connectivity.

With support for up to 300Mbps wireless speeds, adjustable transmission power up to 30dBm/1000mW, and system-level optimization for 13km+ wireless transmission, the CPE220 is suitable for extending networks between buildings, connecting remote locations, and deploying outdoor wireless links.

Key Features

12dBi High-Gain Directional MIMO Antenna

The CPE220 features a built-in 12dBi 2×2 dual-polarized directional antenna with a dedicated metal reflector designed to provide higher gain and reduce noise interference. The antenna has a 60° H-Plane and 30° E-Plane beam width.

300Mbps 2.4GHz Wireless Connectivity

Operating on the 2.4GHz band, the CPE220 delivers wireless speeds of up to 300Mbps using 40MHz dynamic channel width. It supports IEEE 802.11b/g/n wireless standards when Pharos MAXtream is disabled.

13km+ Long-Range Wireless Transmission

The CPE220 is specially designed for outdoor long-distance wireless networking and has been field-tested for 13km+ wireless data transmission under suitable deployment conditions.

Adjustable 30dBm / 1000mW Transmission Power

Transmission power can be adjusted from 0 to 30dBm / 1000mW, with adjustment in 1dBm increments. Actual maximum transmission power may vary according to channel and regional regulations.

TP-Link Pharos MAXtream TDMA

TP-Link's Pharos MAXtream TDMA technology helps reduce wireless competition and collisions between CPEs and base stations. It is designed to improve network throughput, capacity, and latency, particularly for Point-to-Multi-Point (PTMP) deployments.

Multiple Operation Modes

The CPE220 supports flexible deployment modes including:

• AP
• Client
• Bridge
• Repeater
• AP Router
• AP Client Router (WISP)

Enterprise-Level Outdoor Hardware

The CPE220 uses a Qualcomm Atheros 560MHz MIPS 24Kc processor, 64MB DDR2 RAM, and 8MB Flash memory. Its outdoor enclosure is designed for operation in demanding environments.

Weather-Resistant Outdoor Enclosure

The CPE220 features an ASA-stabilized plastic outdoor enclosure with IPX5 waterproof certification, supporting operating temperatures from -40°C to +70°C.

Lightning and ESD Protection

For outdoor deployments, the device provides:

• 6KV Lightning Protection
• 15KV ESD Protection

Proper grounding and cable shielding are required for protection performance.

Pharos Control Centralized Management

Pharos Control provides centralized management from a single PC, allowing administrators to perform device discovery, status monitoring, firmware upgrades, and network maintenance across compatible devices.

PharOS Web Management

The web-based PharOS management system provides advanced configuration options for professional network deployments.

Passive PoE Deployment

The included Passive PoE adapter supports power and data transmission over Ethernet for deployments of up to 60 meters (200 feet) and includes a remote reset button.

Technical Specifications

Wireless & Networking Features

The CPE220 supports Pharos MAXtream TDMA, 802.11b/g/n modes, automatic channel selection, transmission power control, DFS, WDS, wireless MAC address filtering, SSID broadcast control, and selectable channel widths of 5/10/20/40MHz.

Advanced wireless settings include:

• Beacon Interval
• RTS Threshold
• Fragmentation Threshold
• DTIM Interval
• AP Isolation
• Short GI
• Wi-Fi Multimedia
• Distance / ACK Timeout
• Multi-SSID with VLAN Tagging in AP mode

Network Management

The CPE220 provides extensive management and monitoring functionality through Pharos Control and PharOS.

Management Features

• Pharos Control device discovery
• Remote management
• HTTP/HTTPS web management
• System Log
• SNMP Agent v2c
• Ping Watch Dog
• Dynamic DDNS
• SSH Server

System Tools

• Signal Strength Monitoring
• Noise Monitoring
• Transmit CCQ
• CPU and Memory Monitoring
• Throughput Monitoring
• Station Monitoring
• Interface Monitoring
• ARP and Route Monitoring
• WAN and DHCP Monitoring
• Spectrum Analyzer
• Speed Test
• Ping
• Traceroute

System-level optimizations also include IGMP Snooping/Proxy for multicast applications and a hardware watchdog.

PoE Adapter Specifications

Ideal For

• Point-to-Point Wireless Links
• Point-to-Multi-Point Wireless Networks
• Outdoor Wi-Fi Coverage
• Building-to-Building Wireless Connectivity
• Long-Distance Network Extension
• Remote Site Connectivity
• Outdoor Business Networks
• Home and Small Business Wireless Links
• ISP and WISP Deployments
• Wireless Backhaul Applications

Package Contents

• TP-Link CPE220 Outdoor Wireless CPE
• 24V 0.5A Passive PoE Adapter
• Pole Mounting Straps
• AC Power Cord
• Installation Guide

Certifications & Environmental Protection

The TP-Link CPE220 complies with CE, FCC and RoHS requirements and features IPX5 waterproof certification for outdoor deployment.

The device is designed for operation from -40°C to +70°C, making it suitable for a wide range of outdoor environments.

Warranty

1 YEAR WARRANTY

Warranty coverage is subject to applicable manufacturer warranty terms and conditions.
