TP-LINK
TP-Link LS109P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ | Long-Range Power, Secure Traffic Isolation, and Silent Operation
TP-Link LS109P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ | Long-Range Power, Secure Traffic Isolation, and Silent Operation
Couldn't load pickup availability
The TP-Link LS109P is a powerful desktop switch designed for PoE-enabled deployments in surveillance, smart offices, and small business networks. With 8 PoE+ ports, extended transmission range, and built-in traffic isolation, it delivers secure, silent, and efficient performance in a compact metal chassis.
Overview
-

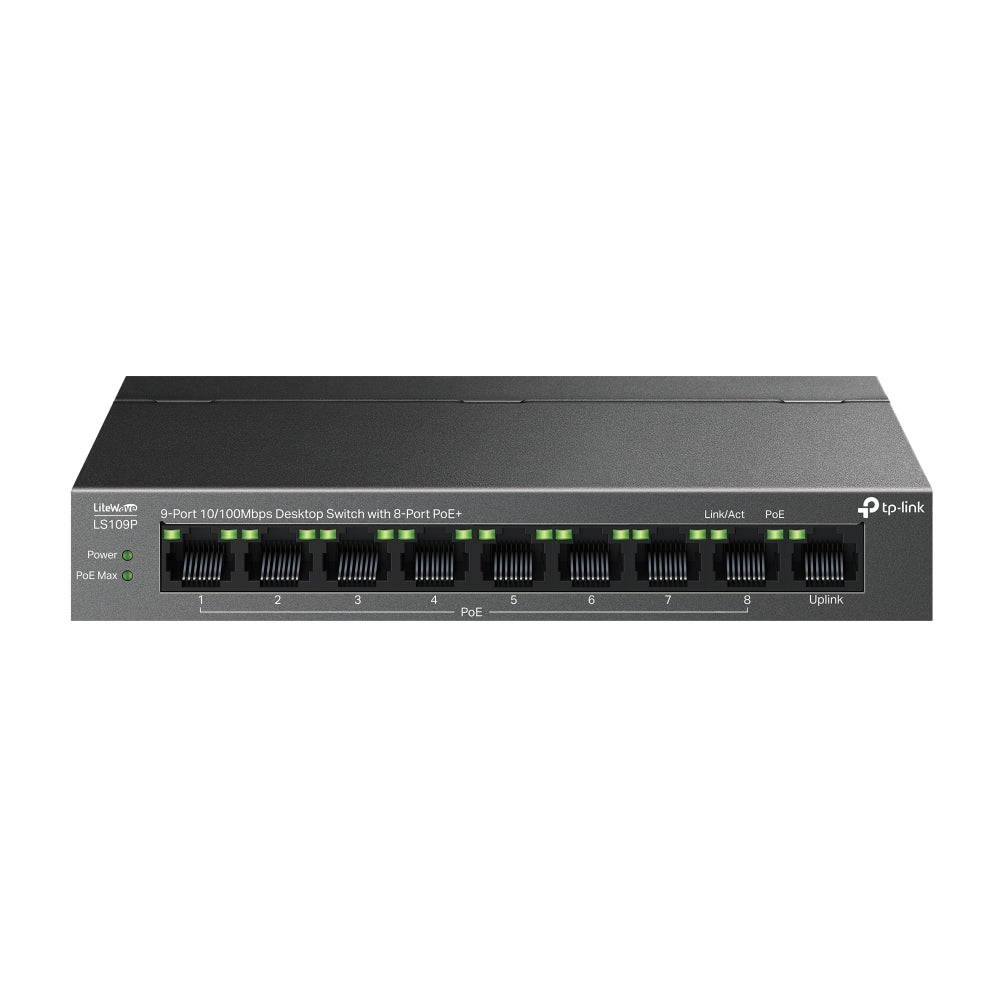

9× 10/100 Mbps RJ45 ports, including 8 PoE+ ports compliant with IEEE 802.3af/at
-
Up to 30W output per PoE+ port, with a total PoE budget of 63W
-

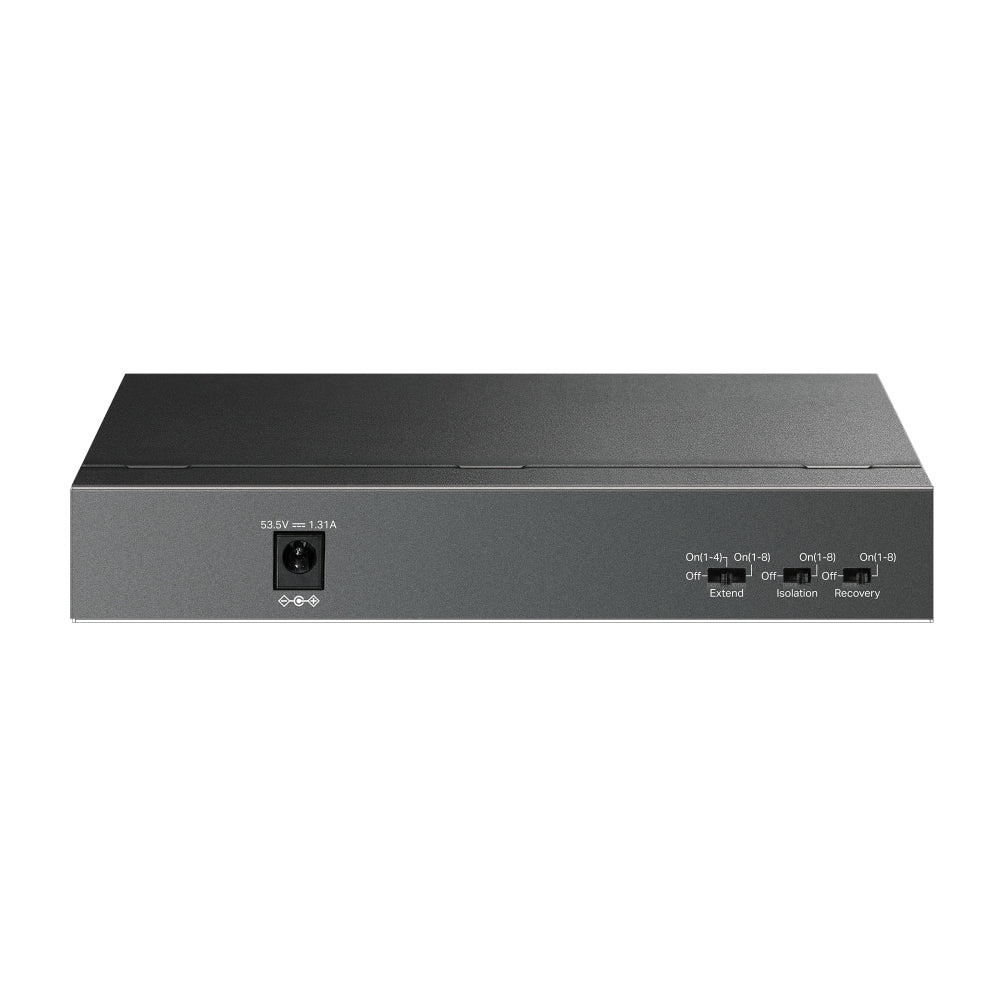

Extend Mode boosts PoE transmission distance up to 250 meters—ideal for large-area surveillance
-
PoE Auto Recovery automatically reboots unresponsive PoE-powered devices
-
Isolation Mode enables one-click traffic separation for enhanced security and broadcast storm prevention
-
Plug and play—no configuration or software required
-
Fanless design ensures silent operation for noise-sensitive environments
-
Durable metal casing with desktop or wall-mounting flexibility
Specifications
| Feature | Description |
|---|---|
| Ports | 9× 10/100 Mbps RJ45 (8 PoE+ ports) |
| PoE Standard | IEEE 802.3af/at |
| PoE Budget | 63W total (up to 30W per port) |
| Extend Mode | Up to 250 meters PoE transmission |
| Isolation Mode | Supported |
| PoE Auto Recovery | Supported |
| Switching Capacity | 1.8 Gbps |
| MAC Address Table | 2K entries |
| Flow Control | IEEE 802.3X |
| Installation | Desktop or Wall-Mount |
| Casing | Metal |
| Power Supply | External Adapter |
| Dimensions | Compact desktop form factor |
| Operating Temperature | 0°C to 40°C |
| OS Compatibility | Compatible with all Ethernet-enabled devices |
Applications
Perfect for IP cameras, wireless access points, and VoIP phones in retail, office, and residential environments. Ideal for users seeking secure traffic management, long-range PoE, and silent operation in a compact switch.
Why Choose TP-Link LS109P
With 8 PoE+ ports, extended range, and advanced features like Isolation Mode and Auto Recovery, the LS109P offers a secure and efficient solution for powering and managing your network devices with ease.
Buy Now from Mustafa Computers Get the TP-Link LS109P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ today at Mustafa Computers and enjoy secure, long-range, and plug-and-play network expansion built for modern connectivity.
