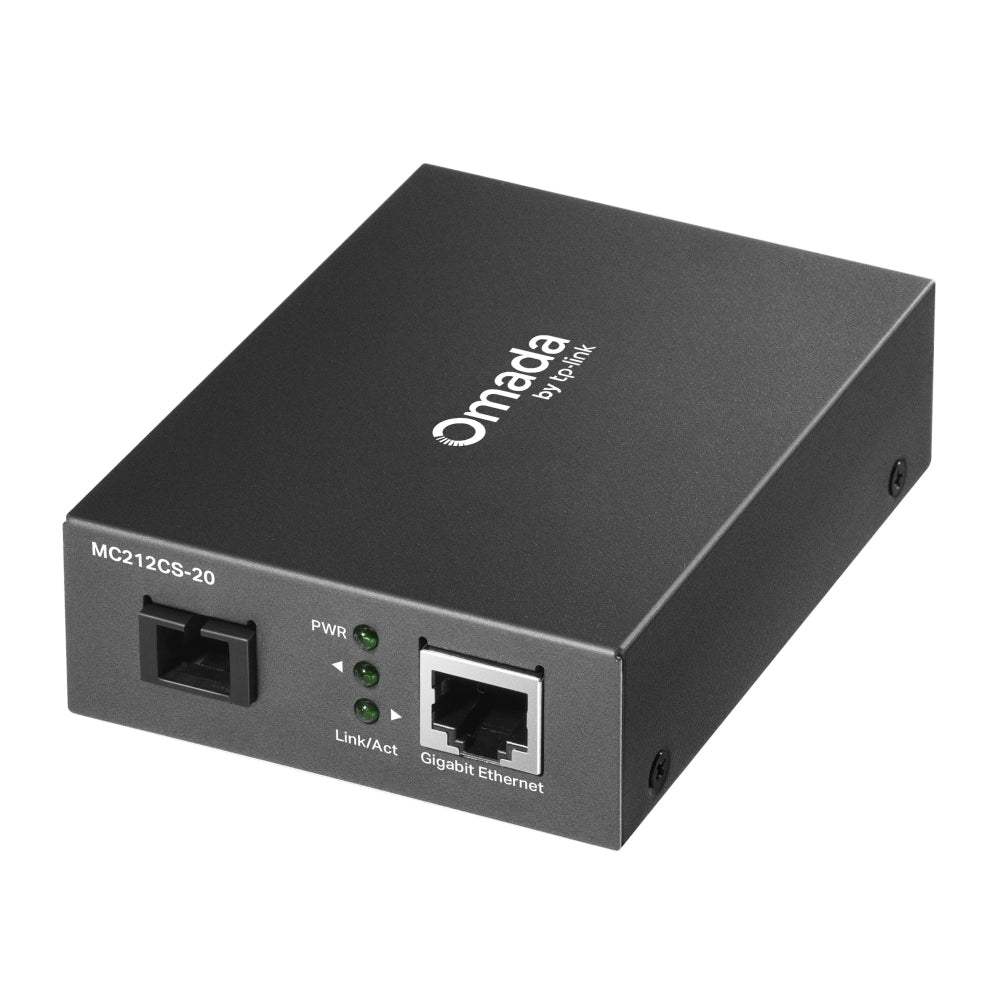

TP-Link MC212CS-20 Omada Gigabit WDM Media Converter | Long-Distance Single-Fiber Conversion with Gigabit Speed and Auto-Negotiation
TP-Link MC212CS-20 Omada Gigabit WDM Media Converter | Long-Distance Single-Fiber Conversion with Gigabit Speed and Auto-Negotiation
Couldn't load pickup availability
The TP-Link MC212CS-20 is a high-performance WDM media converter designed for Omada-compatible networks. It enables gigabit Ethernet transmission over single-mode fiber using WDM technology, making it ideal for long-range enterprise, campus, and industrial deployments.
Overview
-
1× 10/100/1000 Mbps RJ45 port with Auto-MDI/MDIX for flexible copper connectivity
-
Auto-negotiation of Half-Duplex / Full-Duplex transfer modes
-
WDM technology enables bidirectional communication over a single fiber strand
-
Extends fiber connectivity up to 20 km using 9/125 μm single-mode fiber
-
Complies with IEEE 802.3ab (Gigabit Ethernet) and IEEE 802.3z (Gigabit Fiber) standards
-
Plug-and-play design for quick deployment in Omada and standard gigabit networks
Specifications
| Feature | Description |
|---|---|
| Standards | IEEE 802.3ab (1000Base-T), IEEE 802.3z (1000Base-X) |
| RJ45 Port | 1× 10/100/1000 Mbps with Auto-MDI/MDIX |
| Fiber Port | 1× Gigabit SC Single-Mode |
| Fiber Type | Single-mode fiber (9/125 μm) |
| Transmission Range | Up to 20 km |
| Wavelength | TX: 1550nm / RX: 1310nm (WDM) |
| Duplex Mode | Auto-negotiation (Half/Full Duplex) |
| Power Supply | External adapter (included) |
| Operating Temp | 0°C to 40°C |
| Dimensions | 94 × 73 × 27 mm |
Applications
Perfect for extending Ethernet networks across campuses, industrial zones, or between buildings. Ideal for Omada deployments, long-range surveillance, and fiber backbone links.
Why Choose TP-Link MC212CS-20
With WDM single-fiber transmission, gigabit speed, and 20 km reach, the MC212CS-20 offers a reliable and scalable solution for long-distance Ethernet-to-fiber conversion.
Buy Now from Mustafa Computers Get the TP-Link MC212CS-20 Omada Gigabit WDM Media Converter today at Mustafa Computers and build efficient, high-performance fiber links with minimal infrastructure.
