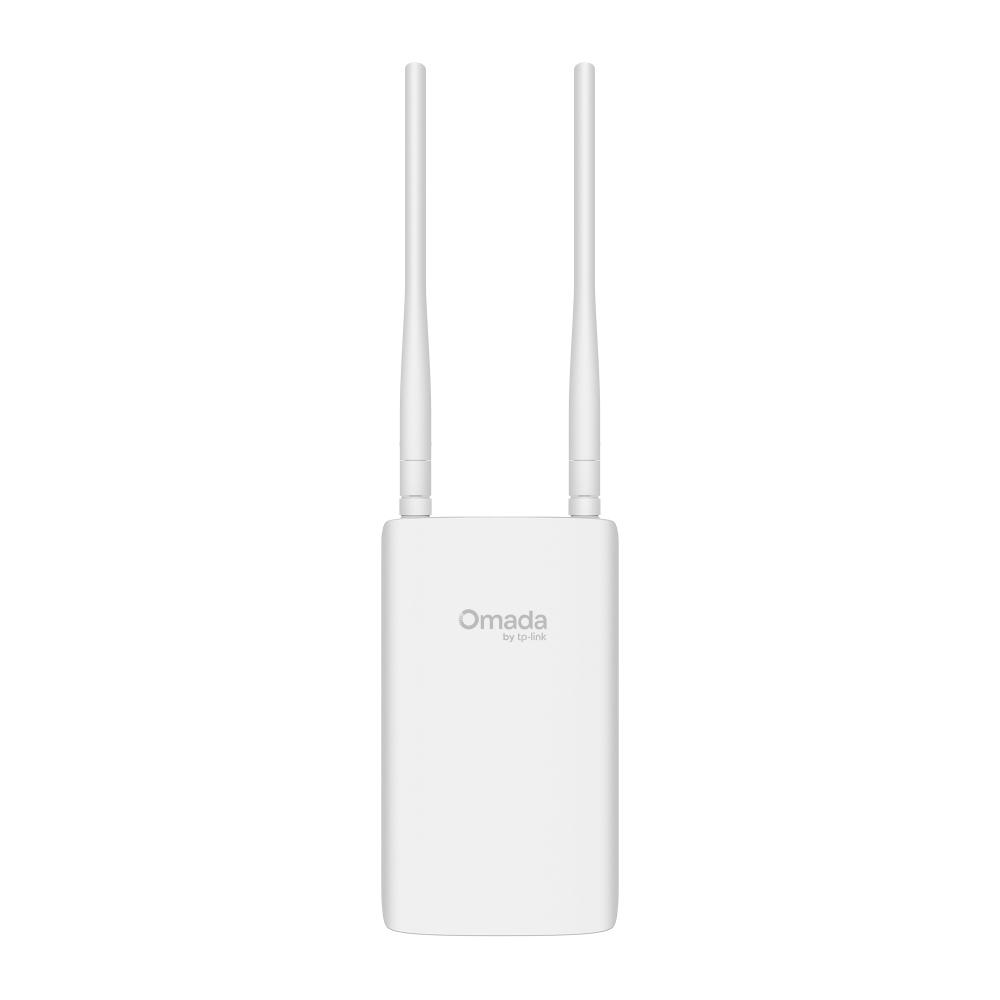

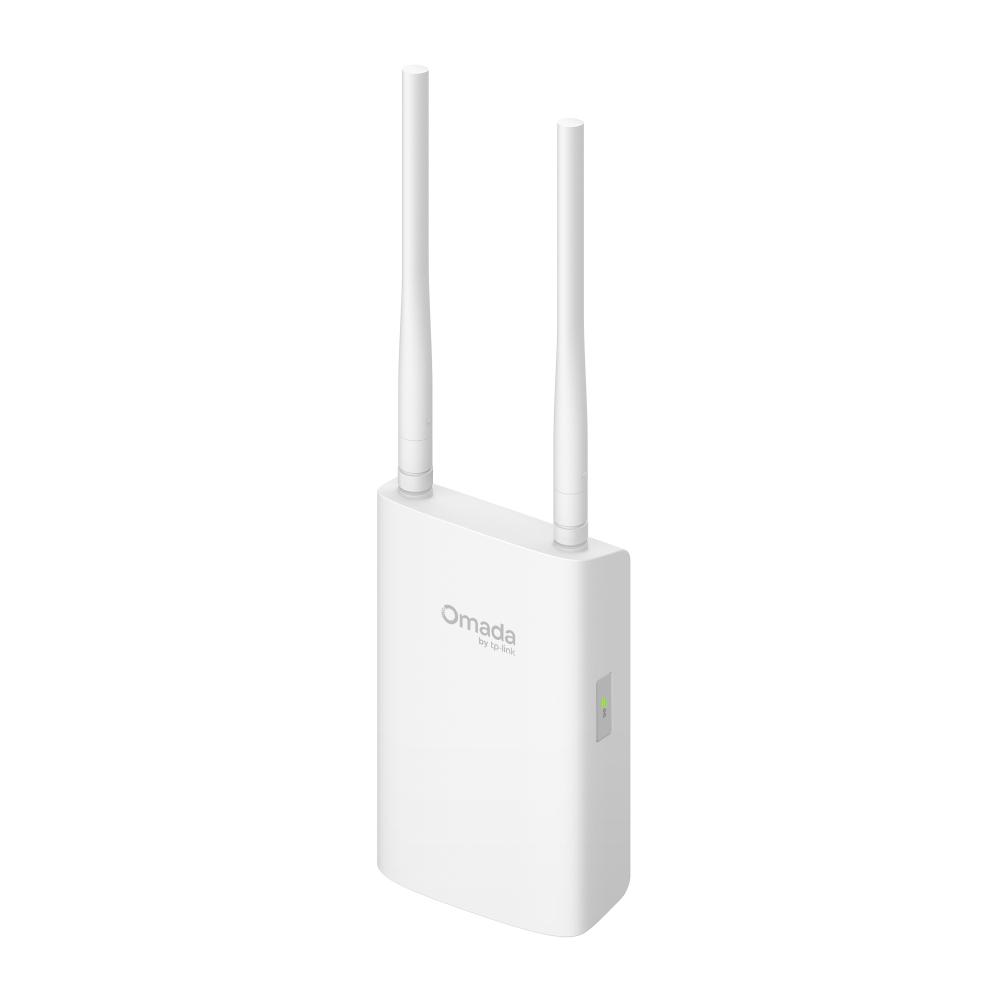

TP-Link Omada EAP603-Outdoor | AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

TP-Link Omada EAP603-Outdoor | AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

Rs.31,000.00
Rs.31,000.00
Sale Sold out
Shipping calculated at checkout.
WARRANTY

The TP-Link Omada EAP603-Outdoor is a high-performance AX1800 Wi-Fi 6 indoor/outdoor access point designed for businesses, campuses, farms, cafés, warehouses, and large outdoor environments in Pakistan. Delivering ultra-fast dual-band Wi-Fi 6 speeds, long-range omnidirectional coverage, and enterprise-grade cloud management, this access point ensures stable, secure, and seamless wireless connectivity in demanding environments.

Built with an IP65/IP66 weatherproof enclosure, advanced roaming technologies, and Omada SDN integration, the EAP603-Outdoor provides reliable outdoor networking performance with simplified centralized management.

Key Features

• Ultra-Fast AX1800 Wi-Fi 6 Performance

Experience next-generation wireless speeds and efficiency.
• Up to 1775 Mbps total wireless speed
• 574 Mbps on 2.4GHz
• 1201 Mbps on 5GHz
• Wi-Fi 6 technologies including OFDMA, MU-MIMO, and 1024-QAM

• Long-Range Outdoor Coverage

Optimized for wide-area wireless deployment.
• Up to 200m coverage on 2.4GHz
• Up to 300m coverage on 5GHz
• High-gain external omnidirectional antennas
• Strong signal performance for open outdoor spaces

• Enterprise Omada SDN Integration

Centralized cloud-based management solution.
• Omada SDN compatibility
• Centralized cloud management
• One-click device adoption and setup
• Omada app support for remote management

• Seamless Mesh & Roaming

Reliable connectivity across large environments.
• Omada Mesh support
• Seamless roaming (802.11k/v/r)
• AI roaming optimization
• Non-stick roaming and load balancing

• Built for Harsh Outdoor Environments

Industrial-grade outdoor durability.
• IP65/IP66 weatherproof enclosure
• 6kV lightning protection
• Wind-resistant design
• Operating temperature: -30°C to 70°C

• Flexible PoE Deployment

Simplified installation with Power over Ethernet.
• Supports 802.3at PoE+
• Passive PoE adapter included
• Single Gigabit PoE+ Ethernet port
• Easy wall or pole mounting options

• Advanced Security & Network Features

Enterprise-level wireless security and optimization.
• WPA3/WPA2 Enterprise security
• Captive portal authentication
• VLAN and guest network support
• QoS, Band Steering, Airtime Fairness
• Rogue AP detection and MAC filtering

Technical Specifications

General

• Model: TP-Link Omada EAP603-Outdoor
• Device Type: Indoor/Outdoor Wi-Fi 6 Access Point
• Wireless Standard: IEEE 802.11ax/ac/n/g/b/a
• Wi-Fi Speed: AX1800 Dual-Band

Wireless Performance

• 2.4GHz Speed: Up to 574 Mbps
• 5GHz Speed: Up to 1201 Mbps
• Coverage:
 – 2.4GHz: Up to 200m
 – 5GHz: Up to 300m

Antenna Configuration

• 2 × 4 dBi external antennas (2.4GHz)
• 2 × 5 dBi external antennas (5GHz)
• Bluetooth antenna included

Ports & Power

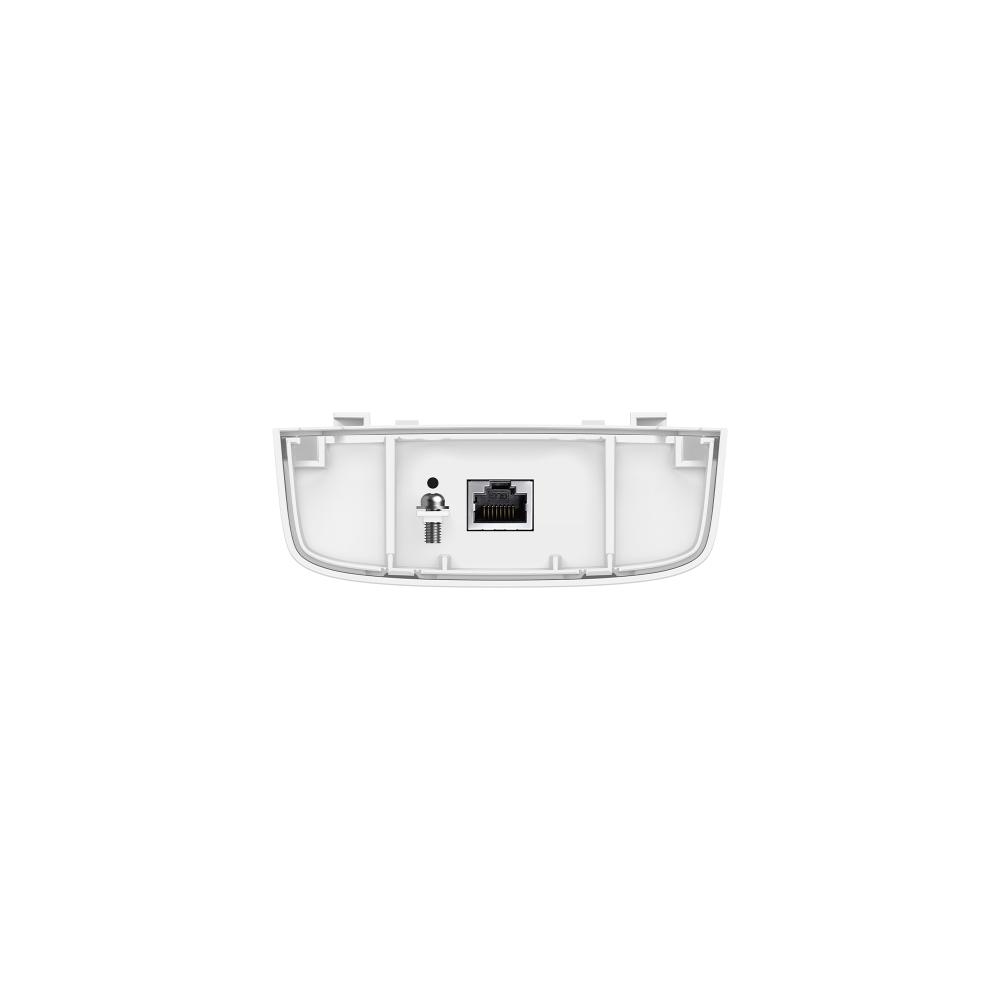

• 1 × Gigabit PoE+ Ethernet Port
• Power Support:
 – 802.3at PoE+
 – 48V Passive PoE (adapter included)

Environmental Protection

• IP65 Weatherproof (Pole Mount)
• IP66 Weatherproof (Wall Mount)
• 6kV Lightning Protection

Mounting Options

• Pole Mount Kit Included
• Wall Mount Kit Included

Management Features

• Omada App Support
• Cloud Access
• SNMP v1/v2c/v3
• SSH & Web-Based Management
• Firmware Updates via Web

Dimensions

• 230 × 207.5 × 69.7 mm

Applications in Pakistan

• Outdoor cafés and restaurants
• Farms, warehouses, and industrial sites
• Schools, campuses, and hostels
• Parks, swimming pools, and event spaces
• Large residential outdoor coverage

Why Choose TP-Link EAP603-Outdoor

• High-speed Wi-Fi 6 performance
• Long-range omnidirectional outdoor coverage
• Enterprise-grade Omada SDN cloud management
• Weatherproof industrial outdoor design
• Advanced roaming, mesh, and security features

Why Buy from Mustafa Computers

Mustafa Computers offers genuine TP-Link networking solutions with competitive pricing, professional support, and nationwide delivery across Pakistan. We provide reliable networking products for business, enterprise, and outdoor deployments.
