TP-LINK

TP-Link SG6654X Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6× 10G Slots | High-Power PoE+, Full L3 Routing, and Stackable Redundancy for Enterprise Networks

TP-Link SG6654X Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6× 10G Slots | High-Power PoE+, Full L3 Routing, and Stackable Redundancy for Enterprise Networks

Rs.272,000.00
Rs.272,000.00
Sale Sold out
Shipping calculated at checkout.
Warranty

The TP-Link SG6654XHP is a flagship Layer 3 managed switch designed for large-scale enterprise networks, surveillance systems, and high-availability deployments. With 48 PoE+ ports, six 10G uplinks, full L3 routing capabilities, and physical stacking support, it delivers unmatched scalability, performance, and centralized cloud control via Omada SDN.

Overview

  • 48× Gigabit RJ45 PoE+ ports compliant with IEEE 802.3af/at

  • 6× 10G SFP+ slots for ultra-fast uplinks and backbone aggregation

  • Massive 1440W PoE budget with support for Fast PoE and Perpetual PoE

  • Physical stacking of up to 8 units for redundancy and performance scaling

  • Full Layer 3 routing features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, DHCP Server/Relay

  • Advanced security strategies including ACL, Port Security, DoS Defend, and 802.1X Authentication

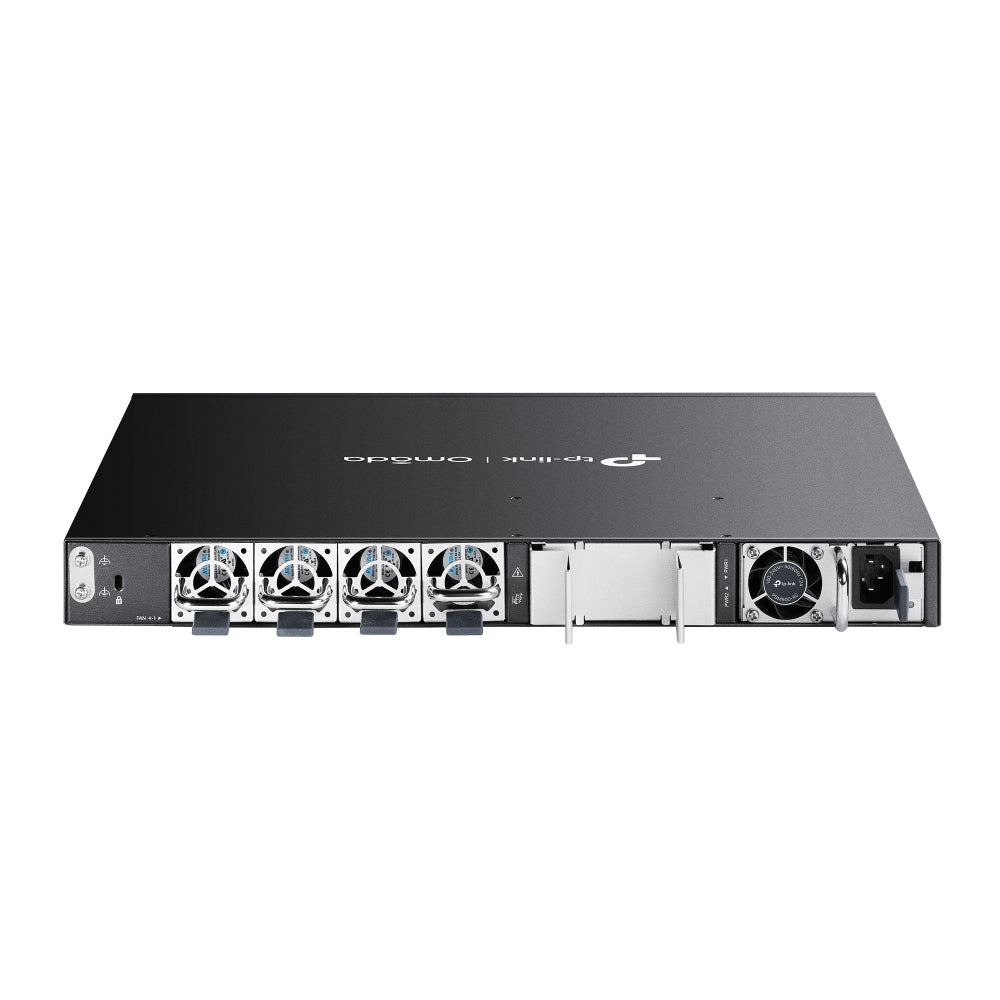

  • High availability architecture with dual field-replaceable power supplies, VRRP, and ERPS

  • Integrated with Omada SDN for centralized cloud management and intelligent monitoring

  • Standalone management via Web GUI, CLI (Console/Telnet/SSH), SNMP, and RMON

  • Durable rackmount metal casing with optimized heat dissipation for 24/7 operation

Specifications

Feature Description
Ports 48× Gigabit PoE+ RJ45 + 6× 10G SFP+ Slots
PoE Standard IEEE 802.3af/at
PoE Budget 1440W total (Fast PoE & Perpetual PoE supported)
Switching Capacity 336 Gbps
Forwarding Rate 250 Mpps
Stacking Up to 8 units
L3 Routing Protocols RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, DHCP Server/Relay
SDN Integration Omada SDN with Cloud Management, Monitoring
QoS Levels L2/L3/L4 QoS
IGMP Snooping Supported
Security Features ACL, Port Security, DoS Defend, 802.1X Authentication
High Availability Dual field-replaceable PSU, VRRP, ERPS
Management Modes Web GUI, CLI (Console/Telnet/SSH), SNMP, RMON
Installation Rackmount
Casing Metal
Operating Temperature 0°C to 50°C
OS Compatibility Compatible with all Ethernet-enabled devices

Applications

Perfect for powering large-scale IP surveillance, WiFi access points, and VoIP systems in enterprise campuses, data centers, and high-availability networks. Ideal for users seeking full Layer 3 routing, massive PoE capacity, and stackable redundancy with centralized cloud control.

Why Choose TP-Link SG6654XHP

With 48 PoE+ ports, 6× 10G uplinks, full L3 routing, and Omada SDN integration, the SG6654XHP offers a future-proof solution for mission-critical enterprise deployments demanding performance, scalability, and reliability.

Buy Now from Mustafa Computers Get the TP-Link SG6654XHP Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6× 10G Slots today at Mustafa Computers and experience enterprise-grade switching built for high-performance, high-availability infrastructure.
