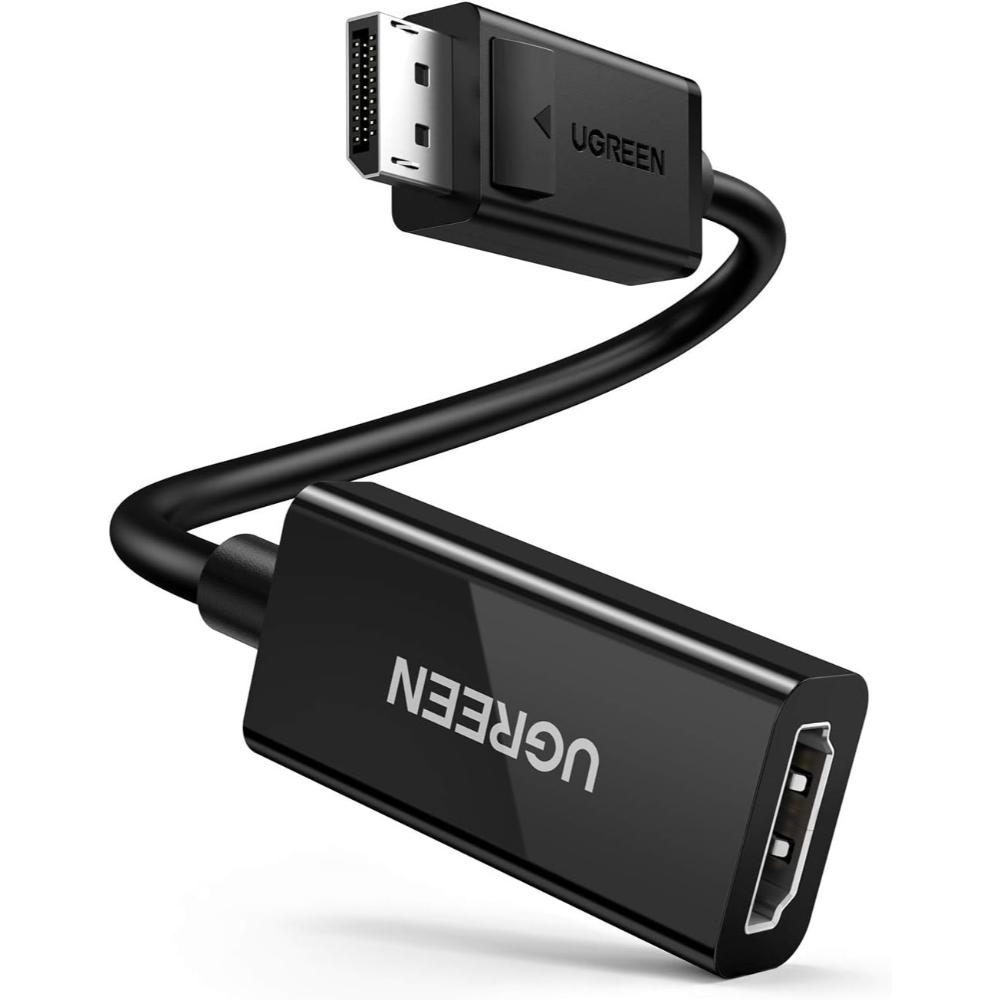

UGREEN 70694 DisplayPort to HDMI Adapter 4K@60Hz | DP Male to HDMI Female | 2K@120Hz | 1080p@144Hz | 25cm Compact Converter

The UGREEN 70694 DisplayPort to HDMI Adapter is a compact DisplayPort male to HDMI female converter designed to connect a desktop computer, laptop, workstation, graphics card, or compatible docking station with a full-size DisplayPort output to an HDMI monitor, TV, projector, or other compatible display.

Supporting video output of up to 4K@60Hz, along with 2K@120Hz and 1080p@144Hz modes where supported, the adapter provides a practical solution for connecting DisplayPort-equipped computers to HDMI displays. Its 25cm compact design makes it convenient for office workstations, presentations, home entertainment, and travel.

Key Features

4K@60Hz Ultra HD Output

The UGREEN 70694 supports video resolutions up to 3840 × 2160 at 60Hz with compatible source and display equipment.

It also supports:

• 2560 × 1440@120Hz
• 1920 × 1080@144Hz

Actual resolution and refresh rate depend on the DisplayPort source, graphics hardware, HDMI cable, display input, and operating-system settings.

DisplayPort to HDMI Conversion

The adapter converts a signal from a full-size DisplayPort output into an HDMI-compatible display signal.

Connect a compatible DisplayPort source to the adapter and use a separate HDMI cable from the adapter's HDMI female port to the display.

1-Way Signal Direction

The UGREEN 70694 is a unidirectional DisplayPort-to-HDMI adapter.

Supported:

DisplayPort source → UGREEN 70694 → HDMI display

Not Supported:

HDMI source → UGREEN 70694 → DisplayPort display

It cannot convert an HDMI-output laptop, console, set-top box, or media player into DisplayPort.

Mirror & Extended Display Modes

The adapter supports compatible computer display configurations including:

• Mirror Mode — duplicates the computer screen on the HDMI display.
• Extended Mode — uses the HDMI display as an additional desktop workspace.

Available display modes depend on the source hardware, operating system, graphics configuration, and number of supported displays.

Digital Audio & Video

The adapter supports compatible digital audio and video transmission through HDMI when the DisplayPort source provides the required signal.

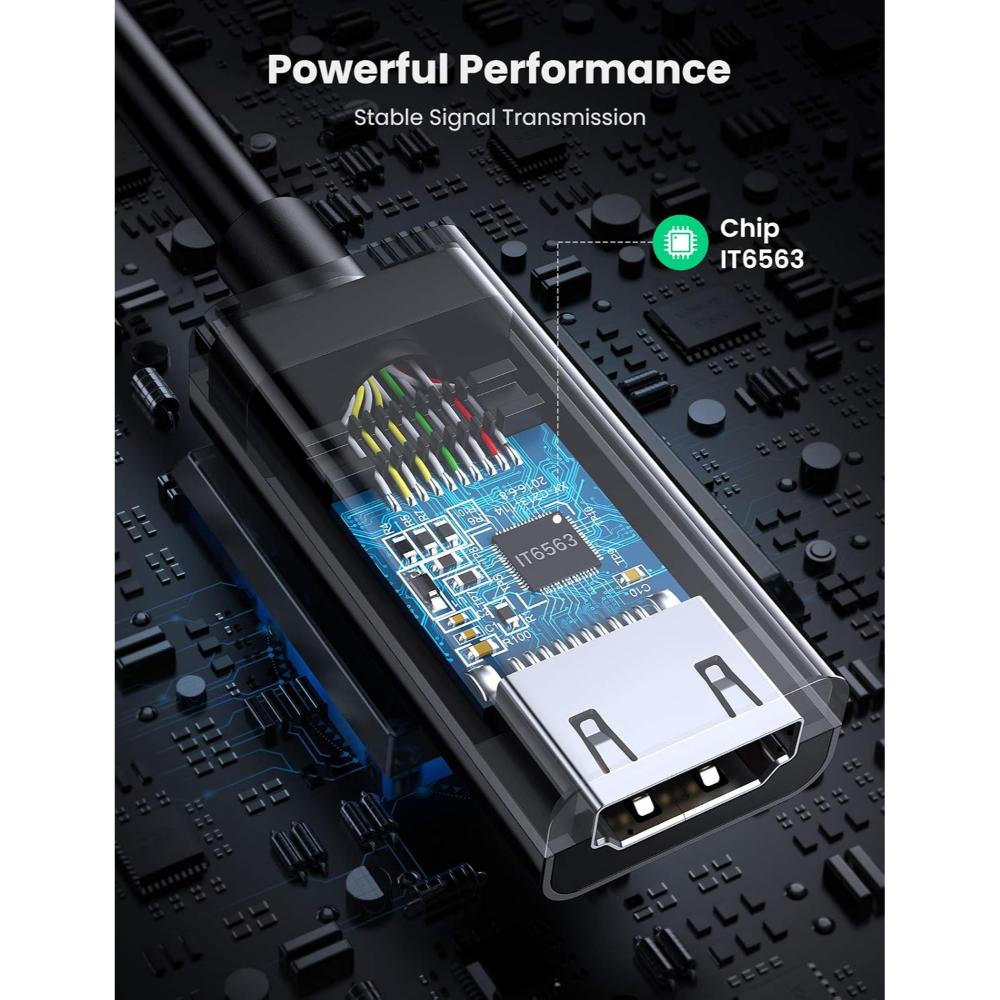

Stable Signal Construction

The adapter incorporates:

• Gold-plated connector surfaces
• Tinned-copper internal conductors
• Aluminium-foil shielding
• Braided internal shielding
• Durable PVC cable construction
• ABS converter housing

These construction features are designed for stable signal transmission and everyday use.

Compact 25cm Design

With a 25cm adapter length, the UGREEN 70694 is easy to carry and convenient for connecting equipment without the bulk of a longer cable.

The flexible cable section can also help reduce direct mechanical stress on the DisplayPort socket compared with a rigid adapter.

Technical Specifications

Specification	Details
Brand	UGREEN
Model / SKU	70694
Product Type	DisplayPort Male to HDMI Female Video & Audio Converter
Input Connector	Full-Size DisplayPort Male
Output Connector	HDMI Type-A Female
Signal Direction	DisplayPort to HDMI Only
Reverse Conversion	HDMI to DisplayPort Not Supported
Maximum Resolution	Up to 3840 × 2160@60Hz
QHD Support	Up to 2560 × 1440@120Hz
Full HD Support	Up to 1920 × 1080@144Hz
Audio Support	Compatible Digital Audio Through HDMI
Display Modes	Mirror / Extended Desktop
Driver Requirement	Plug & Play; normally no separate adapter driver required
Adapter Length	25cm
Conductor Material	Tinned Copper
Shielding	Aluminium Foil + Braided Shielding
Connector Finish	Gold-Plated Connector Surfaces
Housing	ABS Converter Housing
Cable Construction	Durable PVC
Colour	Black
Listed Weight	52g

4K@60Hz Connection Requirements

To achieve 4K@60Hz, every component in the connection must support the required specification.

For a complete 4K@60Hz setup:

• Use a DisplayPort source capable of 4K@60Hz.
• Use an HDMI 2.0-or-higher cable.
• Connect to an HDMI display input capable of 4K@60Hz.
• Select 3840 × 2160 resolution and 60Hz in the display settings where required.
• Ensure the graphics driver and source hardware support the desired output.

The adapter does not increase the maximum capabilities of the source device, HDMI cable, or display.

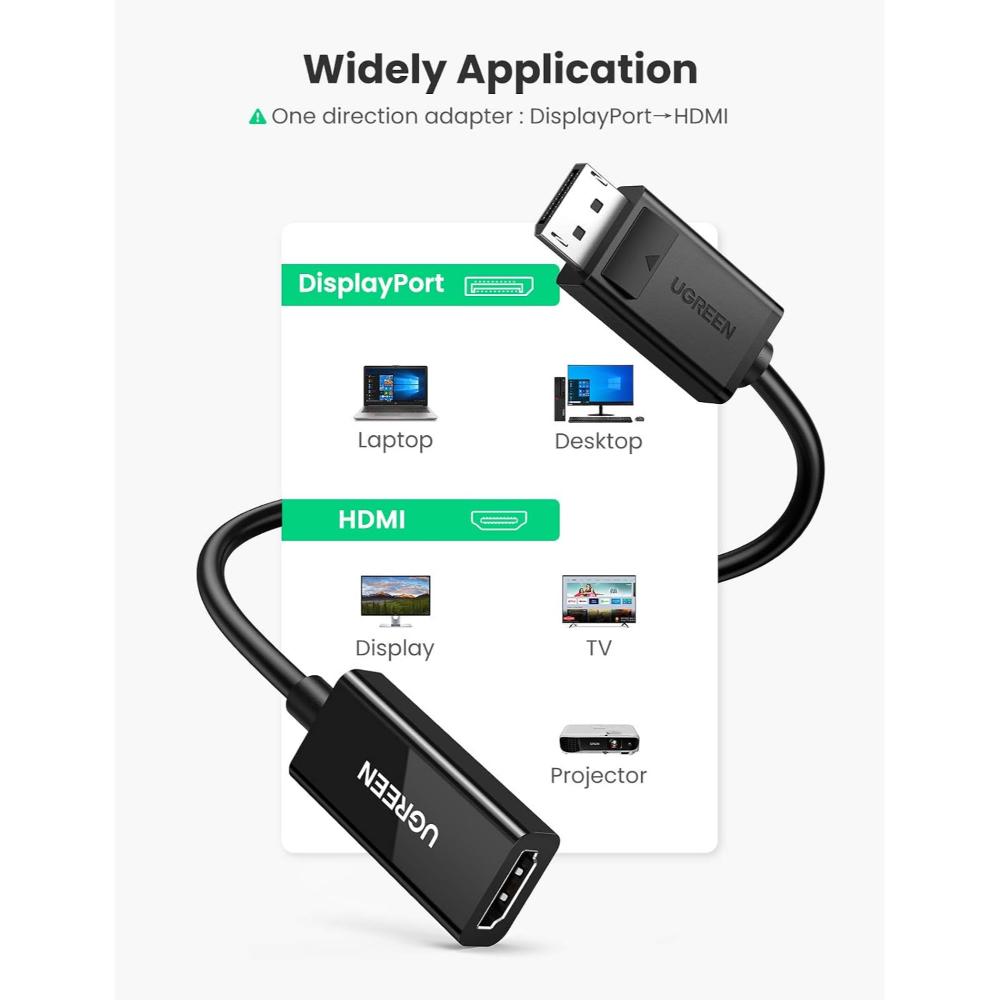

Compatible Devices

Desktop PCs & Workstations

Connect computers equipped with a full-size DisplayPort output to HDMI displays.

Graphics Cards

Suitable for compatible AMD, NVIDIA, and other graphics cards featuring full-size DisplayPort outputs.

Business Laptops & Docking Stations

Use with compatible laptops or docking stations that provide a full-size DisplayPort output.

HDMI Monitors

Connect DisplayPort-equipped computers to compatible HDMI office, creative, and gaming monitors.

TVs

Connect a compatible computer or graphics card to an HDMI television, including compatible 4K displays.

Projectors

Connect DisplayPort-equipped computers to HDMI projectors for presentations, classrooms, meetings, and training environments.

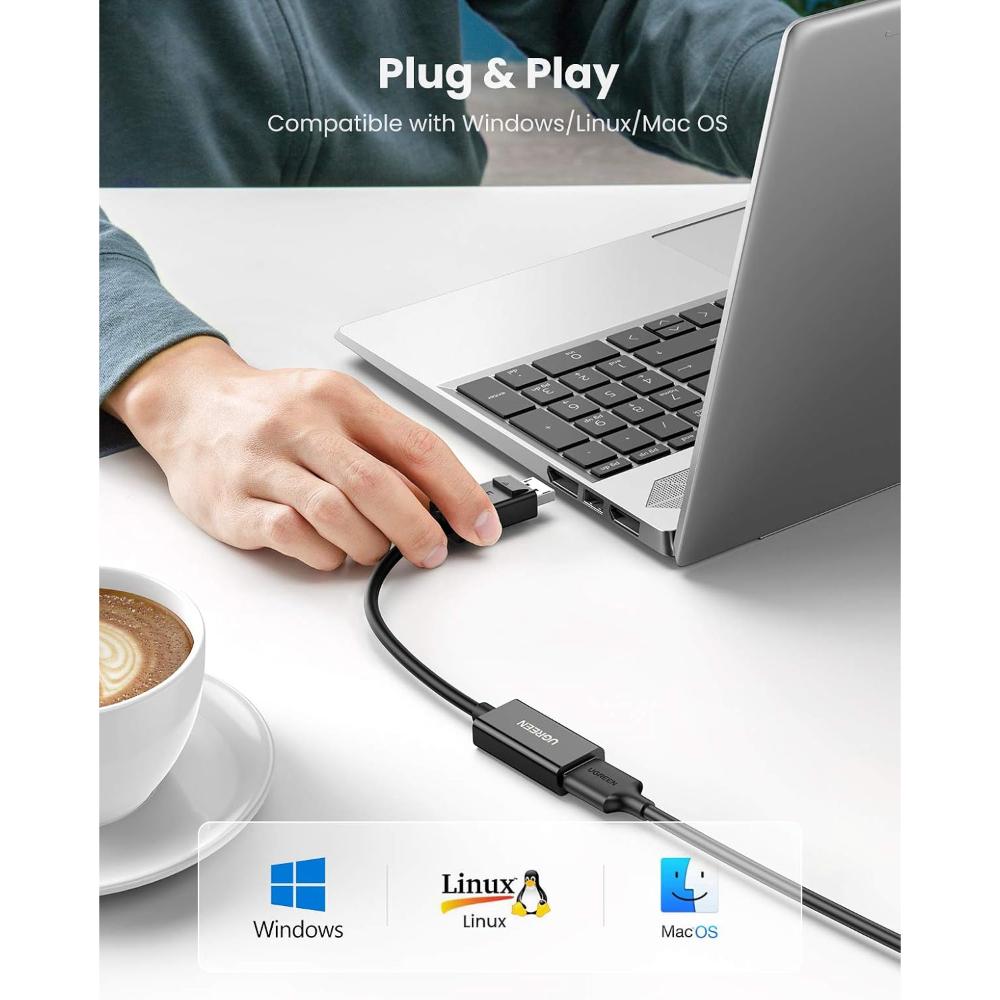

Operating System Compatibility

The adapter is designed for use with compatible computer hardware and supports typical systems including:

• Windows
• macOS
• Linux

No separate adapter driver is normally required for basic display conversion.

Important Compatibility Note

The UGREEN 70694 is a DisplayPort male to HDMI female adapter and works in one direction only.

A separate HDMI male-to-male cable is required to connect the adapter to an HDMI display.

The final resolution and refresh rate are determined by the source DisplayPort output, graphics hardware, HDMI cable, display input, and operating-system configuration.

Connection Care

The DisplayPort connector features retaining latches to help secure the connection.

• Align the DisplayPort connector before insertion.
• Insert the connector fully.
• Press and hold the release button before removing it.
• Hold the connector housing when unplugging.
• Avoid sharply bending the cable near the connectors.

Ideal For

The UGREEN 70694 is suitable for:

• 4K monitors
• HDMI televisions
• HDMI projectors
• Office workstations
• Desktop PCs
• Gaming PCs
• Graphics cards
• Business presentations
• Conference rooms
• Classrooms
• Home entertainment
• Travel and portable workstation setups

Package Contents

• 1× UGREEN 70694 DisplayPort Male to HDMI Female Adapter

HDMI cable sold separately.

Warranty

The supplied product information does not specify a warranty period for UGREEN 70694. Warranty coverage should therefore be confirmed according to the applicable manufacturer/distributor warranty terms for the supplied unit.
