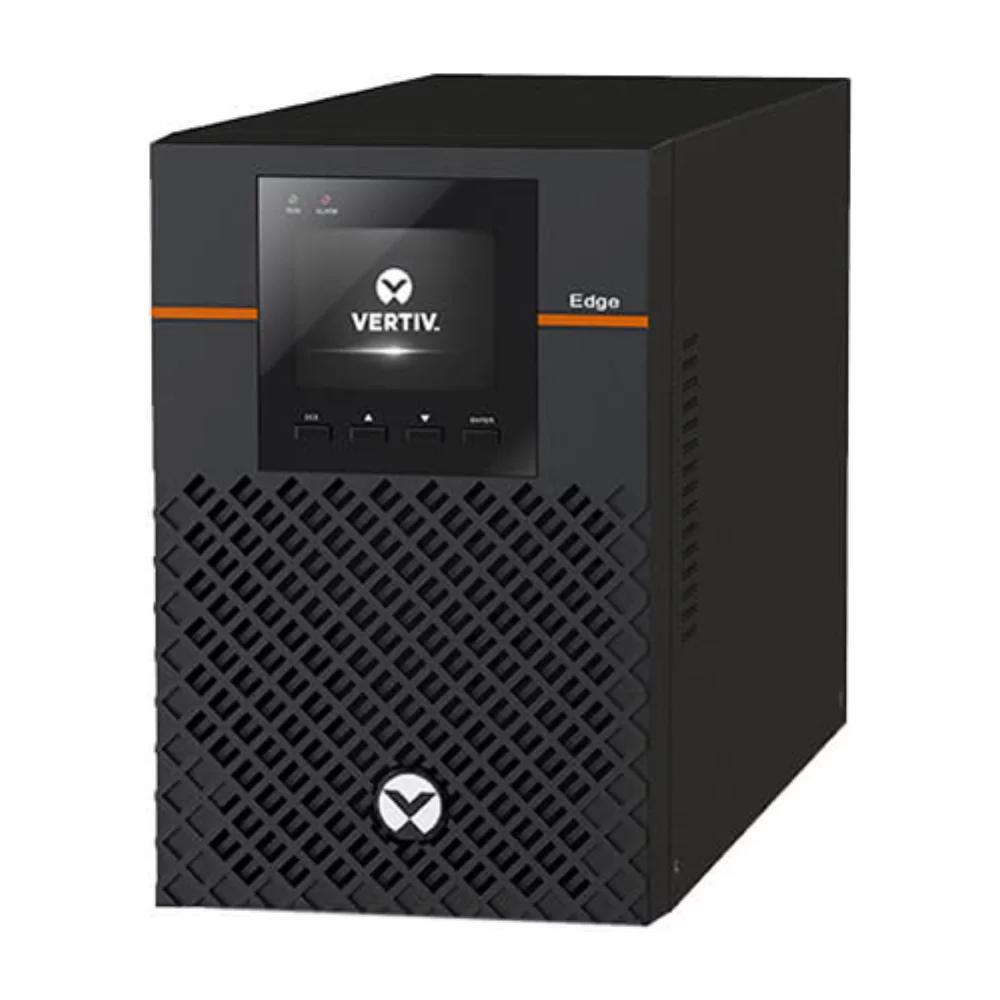

Vertiv Edge EDGE-1000IMT UPS | 1000VA / 900W | 230V | Line-Interactive Pure Sine Wave | Tower | Adjustable Outlets | VRLA Battery | Network & IT Equipment

The Vertiv Edge EDGE-1000IMT is a high-performance 1000VA / 900W line-interactive UPS designed to provide reliable battery backup, voltage regulation, and power protection for servers, networking equipment, workstations, telecom devices, and distributed IT infrastructure.

Featuring pure sine wave output, a 0–300VAC input range with battery operation, automatic voltage regulation through boost and buck modes, adjustable output voltage, controllable IEC C13 outlets, and a 0.9 power factor, the EDGE-1000IMT provides dependable protection for sensitive IT equipment and edge computing applications.

With its compact tower design, high operating efficiency, and VRLA battery system, the Vertiv Edge EDGE-1000IMT is well suited for small server rooms, network racks, telecom installations, branch offices, and edge IT environments.

Key Features

1000VA / 900W Power Capacity

The EDGE-1000IMT delivers:

• 1000VA capacity
• 900W active power
• 4.4A output at 230V
• 0.9 power factor

The high power factor allows the UPS to support modern IT equipment efficiently while making better use of its rated capacity.

Pure Sine Wave Output

The UPS provides pure sine wave output while operating on battery, making it suitable for sensitive electronic and IT equipment.

Pure sine wave output is ideal for:

• Servers
• Network switches
• Routers
• Storage systems
• Workstations
• Telecom equipment
• Networking appliances
• Other sensitive electronic equipment

Line-Interactive Power Protection

The Vertiv Edge uses a line-interactive architecture with automatic voltage regulation to help maintain stable output without constantly relying on battery power.

The UPS provides:

• Boost voltage regulation
• Buck voltage regulation
• Battery backup
• Overcurrent protection
• Short-circuit protection
• Surge protection

Wide Input Voltage Range

The EDGE-1000IMT supports a broad input voltage range.

With battery operation, the input range extends from:

0 to 300VAC

Without battery operation, the input range is:

144 to 290VAC

This helps the UPS handle unstable utility power while reducing unnecessary battery usage.

Adjustable Output Voltage

The UPS supports selectable output voltages of:

• 200VAC
• 208VAC
• 220VAC
• 230VAC
• 240VAC

The factory default output voltage is 230VAC.

Adjustable Frequency

The UPS automatically detects 50Hz or 60Hz input frequency.

Battery output frequency is:

50/60Hz ±1%

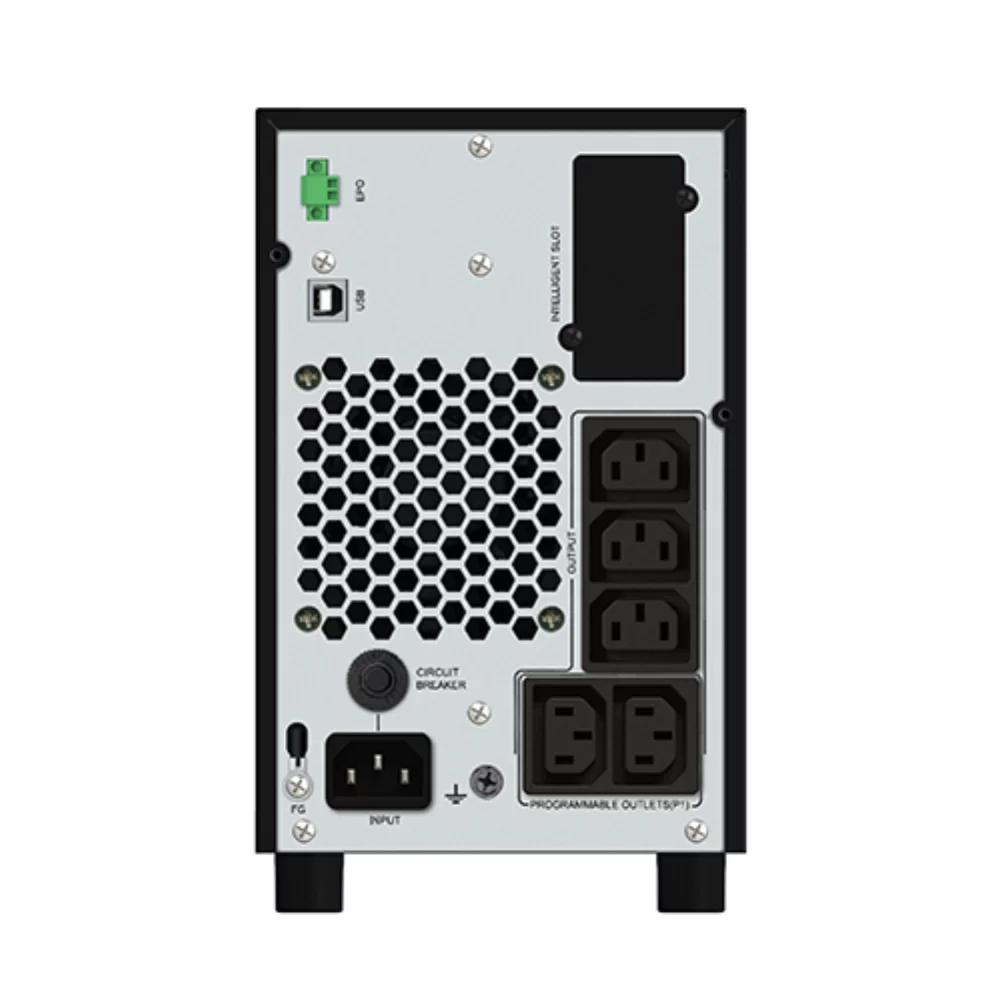

Controllable IEC C13 Outlets

The EDGE-1000IMT provides IEC 320 C13 output receptacles, including controllable outlets that can be managed for improved power distribution and connected equipment control.

High Efficiency

The UPS provides high operating efficiency to reduce energy consumption.

AC-mode efficiency is:

• 98% or greater at 200/208/220/230/240VAC
• Up to 96% or greater in applicable Boost/Buck operating modes

VRLA Battery

The EDGE-1000IMT uses a maintenance-free valve-regulated lead-acid (VRLA) battery system.

Battery configuration:

• 2 × 12V
• 10Ah
• CSB UPS12580 battery

The internal battery can be recharged to approximately 90% capacity in 4 hours.

Battery Runtime

Approximate runtime for the EDGE-1000IMT using the internal battery:

Actual runtime varies depending on connected equipment, battery condition, environmental conditions, and operating conditions.

Technical Specifications

Input Protection

The EDGE-1000IMT includes integrated protection against common electrical disturbances.

Protection features include:

• Input surge protection
• Electronic overcurrent protection
• Short-circuit protection
• Latching shutdown protection
• Automatic buck/boost voltage regulation

Input surge protection complies with:

EN61000-4-5

with Line-to-Line Level 2 and Line-to-Earth Level 3 protection.

Voltage Regulation

The Edge UPS continuously monitors incoming power and uses automatic voltage regulation to help maintain stable output.

The regulation system includes:

• Boost 1
• Boost 2
• Buck
• Normal operating mode
• Battery mode

This helps compensate for high or low utility voltage while reducing unnecessary battery cycling.

Overload Protection

The UPS provides graduated overload protection.

Physical Design

The EDGE-1000IMT is designed as a compact tower UPS suitable for distributed IT and edge computing environments.

Unit dimensions:

145 × 480 × 220mm (W × D × H)

Unit weight:

11.8kg

Its compact footprint makes it suitable for:

• Server rooms
• Network closets
• Branch offices
• Telecom installations
• Edge computing environments
• Security systems
• Small IT infrastructure deployments

Vertiv Edge Series

The Vertiv Edge family is designed for applications requiring dependable battery backup and power conditioning.

The series is available in different configurations and capacities, including tower and rack/tower variants.

The supplied specifications include:

• EDGE-750IMT: 750VA / 675W
• EDGE-1000IMT: 1000VA / 900W
• EDGE-1500IMT: 1500VA / 1350W

Rack-mount variants are also available in the Edge family.

Ideal Applications

Perfect for:

• Servers
• Network Servers
• Network Switches
• Routers
• NAS Storage
• Workstations
• Telecom Equipment
• IT Infrastructure
• Edge Computing
• Distributed IT Equipment
• Branch Offices
• Network Cabinets
• Small Server Rooms
• Data Networking Equipment
• Security & Surveillance Equipment
• Business-Critical Electronics

Why Choose the Vertiv Edge EDGE-1000IMT?

• 1000VA / 900W capacity
• 0.9 power factor
• 230VAC nominal voltage
• Pure sine wave output
• Line-interactive UPS topology
• Wide 0–300VAC battery-operation input range
• Automatic boost and buck voltage regulation
• Selectable 200/208/220/230/240VAC output
• Automatic 50/60Hz frequency detection
• IEC 320 C13 output receptacles
• Controllable outlets
• VRLA battery technology
• 2 × 12V × 10Ah internal batteries
• Approximately 4-hour recharge to 90%
• Up to 98% AC-mode efficiency
• Input surge protection
• Electronic overcurrent and short-circuit protection
• Compact tower configuration
• Designed for edge and distributed IT applications
