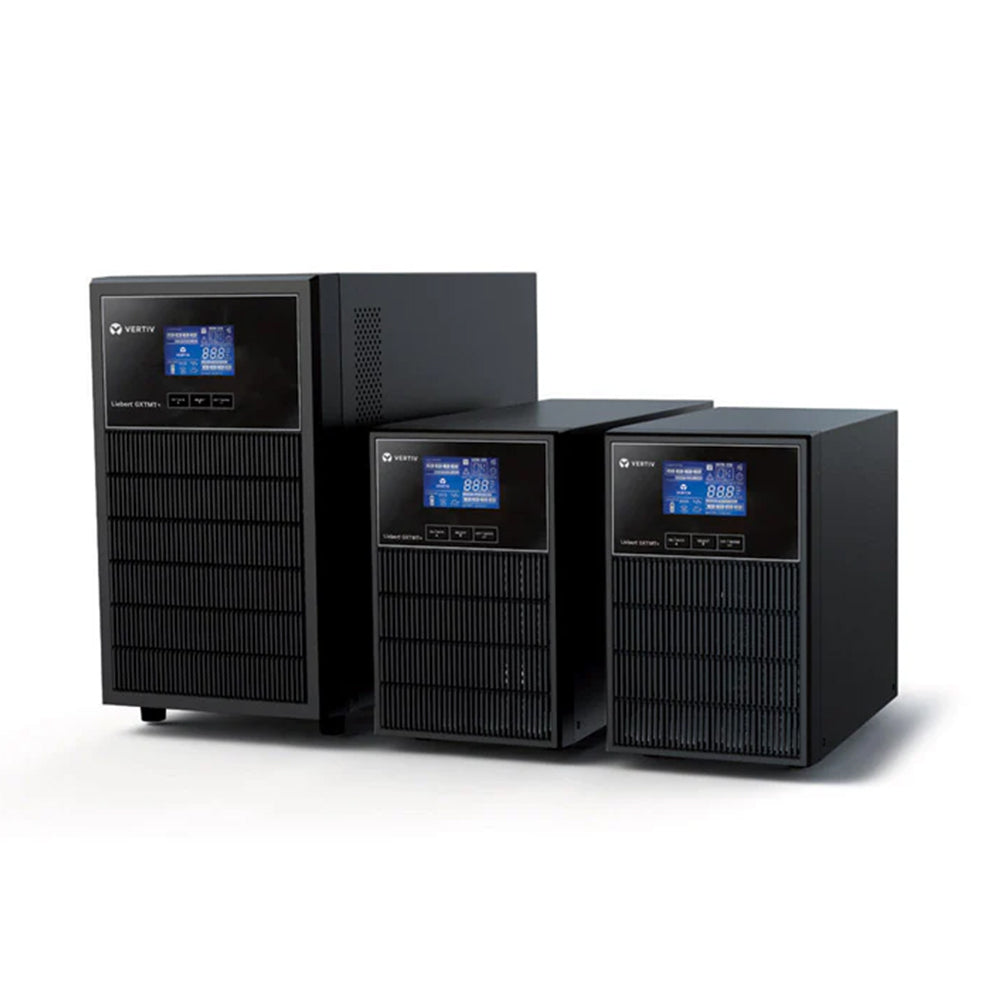

Vertiv Liebert GXT MT+ CX 1000MTPLUSC230-1KVA/900W 230V UPS WITH BATTERY
Vertiv Liebert GXT MT+ CX 1000MTPLUSC230-1KVA/900W 230V UPS WITH BATTERY
Couldn't load pickup availability
Applications
- Data Network: Mid – range Servers (Windows and Linux), Wi-Fi Applications & Data networks
-
Small Data Center Rooms
Voice Networks: Cellular Sites, Voice Over IP (VOIP), Very small Aperture Terminals (VSAT) PBX And IT-enabled PBX Automation industries
Process Automation Equipment: Programmable Logic Controllers (PLS) and Cash Machines
(ATM)
In this ever-changing dynamic world, the days of basic power protection are passé. In today’s Internet-centric era, business continuity is vital and companies cannot afford downtime for their critical systems or waste time recovering the systems after a disruption. Therefore, there is a need for a power-integrated UPS, which offers flexible protection for various applications areas such as data networks, compact data center rooms, voice networks, cellular sites, process automation systems, and micro-control rooms among other edge applications.
Our solution
Liebert® GXT MT+ CX is a sleek, high frequency, double-conversion UPS with wide input voltage/frequency and better output voltage regulation, which makes it an ideal choice for harsh environments, especially those facing concerns related to unstable mains output and high load impact. This advanced UPS provides higher availability while offering intelligent monitoring and network management functions.
The ultimate level of engineering and dynamics that have gone beyond the development of this next-generation UPS make it a high performance system with proven reliability, giving you ultimate peace of mind.
The Liebert® GXT MT+ CX UPS facilitates reliable & uninterrupted power even in stringent conditions with integrated input power factor correction, low THDi, and advanced frequency regulation in a compact footprint.
Our solution
IGBT-based Rectifier
True on-line double-conversion efficiency (up to 90%) with DSP Control Technology for high Performance & reliability
Active Input Power Factor Correction 0.99; 0.9 Output Power Factor
Ultra-wide Input Voltage window: 280VAC; works well in harsh conditions and suitable for very poor quality power grid
Generator-compatible with a wide Input Frequency range (40Hz–70Hz)
Built-in 50/60 Hz automatic frequency converter and a configurable output voltage (200, 208, 220, 230, up to 240 Vac)
Technical Specifications (Standard Model)
Model GXT-1000MTPLUSC230
Capacity 1000 VA / 900 W
Input
Low Line Transfer 180VAC/160VAC/140VAC/120VAC±5%
(Ambient Temp.<35°C) ( based on load percentage 100% – 80 % / 80 % – 70 % / 70 – 60 % / 60 % – 0)
Voltage Range
Low Line Comeback 195VAC/175VAC/155VAC/135VAC ± 5 %
(Ambient Temp.<35°C)
( based on load percentage 100% – 80 % / 80 % – 70 % / 70 – 60 % / 60 % – 0)
High Line Transfer 300 VAC ± 5 %
High Line Comeback 290 VAC ± 5 %
Frequency Range 40Hz ~ 70 Hz
Phase Single Phase with ground
Power Factor � 0.99 @ nominal voltage (input voltage)
Output
Output Voltage 208/220/230/240VAC
Output Power Factor 0.9
AC Voltage Regulation ±1% (Battery Mode)
Frequency Range 47-53 Hz or 57 – 63 Hz ( Synchronized Range)
Frequency Range (Battery Mode) 50 Hz ± 0.5% or 60Hz ±0.5%
Overload
Ambient Temp.<35°C
105%~110%: UPS shuts down after 10 minutes at battery mode or transfer to bypass when the utility is normal 110%~130%: UPS shuts down after 1 minute at battery mode or transfer to bypass when the utility is normal �130%:UPS shuts down after 3 seconds at battery mode or transfer to bypass when the utility is normal
Current Crest Ratio Current Crest Ratio
Harmonic Distortion � 3 % THD (linear load); � 6 % THD (non-linear load)
Transfer Time
AC Mode to Batt. Mode Zero
Inverter to Bypass 4 ms (Typical)
Waveform (Battery Mode) Pure Sinewave
Efficiency
AC Mode 88%
Battery Mode 83%
Battery
Battery Type 12 V / 9 AH
Battery Numbers 2
Recharge Time 4 hours recover to 90% capacity (typical)
Charging Voltage 27.4 VDC ± 1%
Physical
Dimension, D × W × H, mm 282 × 145 × 220
Net Weight (kgs) 9.8
Environment
Operation Humidity 20–90% RH @ 0–40°C (non-condensing)
Noise Level Less than 45dBA @ 1 Meter
Management
Smart RS-232 or USB Supports Windows® 2000/2003/XP/Vista/2008/7, Linux, Unix and MAC
Optional SNMP Power management from SNMP manager and web browser
Agency
Compliance CE, RoHS, WEEE
