ViewSonic LDC Series 9x4m All-in-One LED Display | 1920×1080 FHD, 3840Hz Refresh, 36 Cabinets

ViewSonic LDC Series 9x4m All-in-One LED Display | 1920×1080 FHD, 3840Hz Refresh, 36 Cabinets

Rs.10,550,000.00
Rs.10,550,000.00
Sale Sold out
Shipping calculated at checkout.
WARRANTY

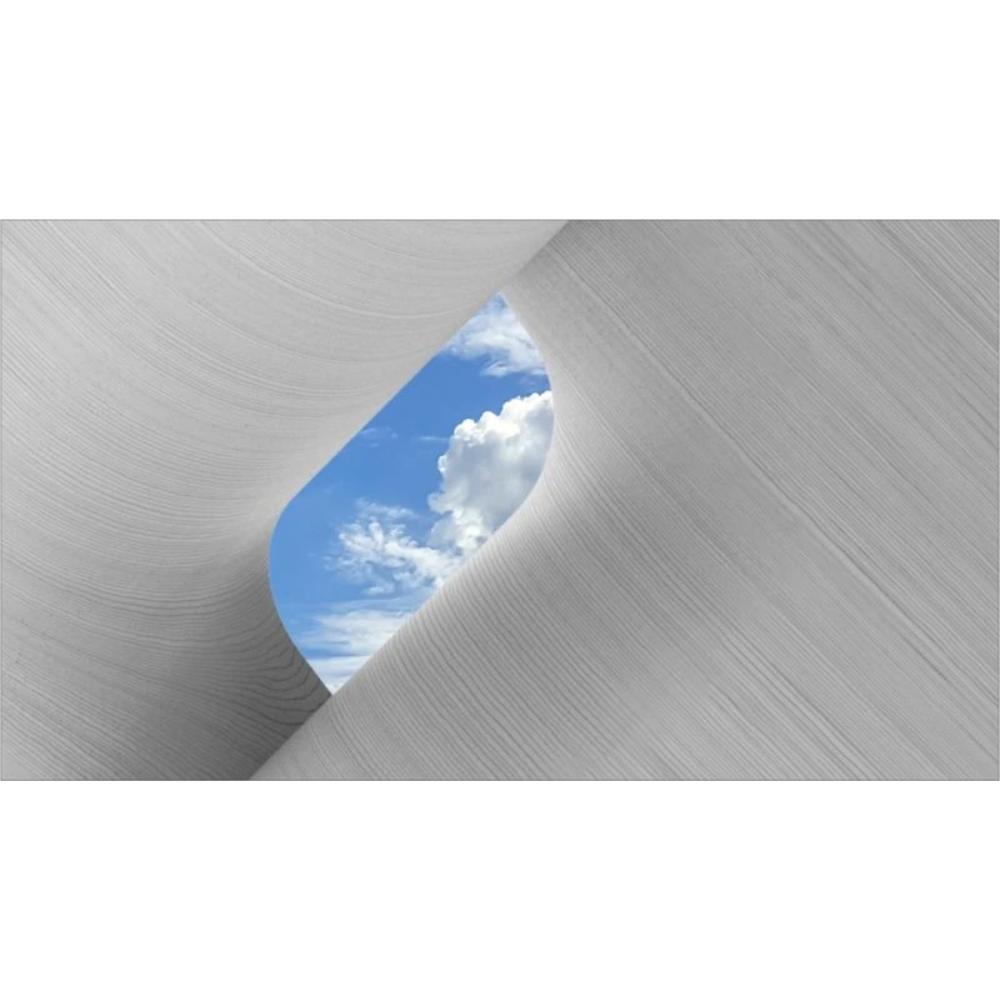

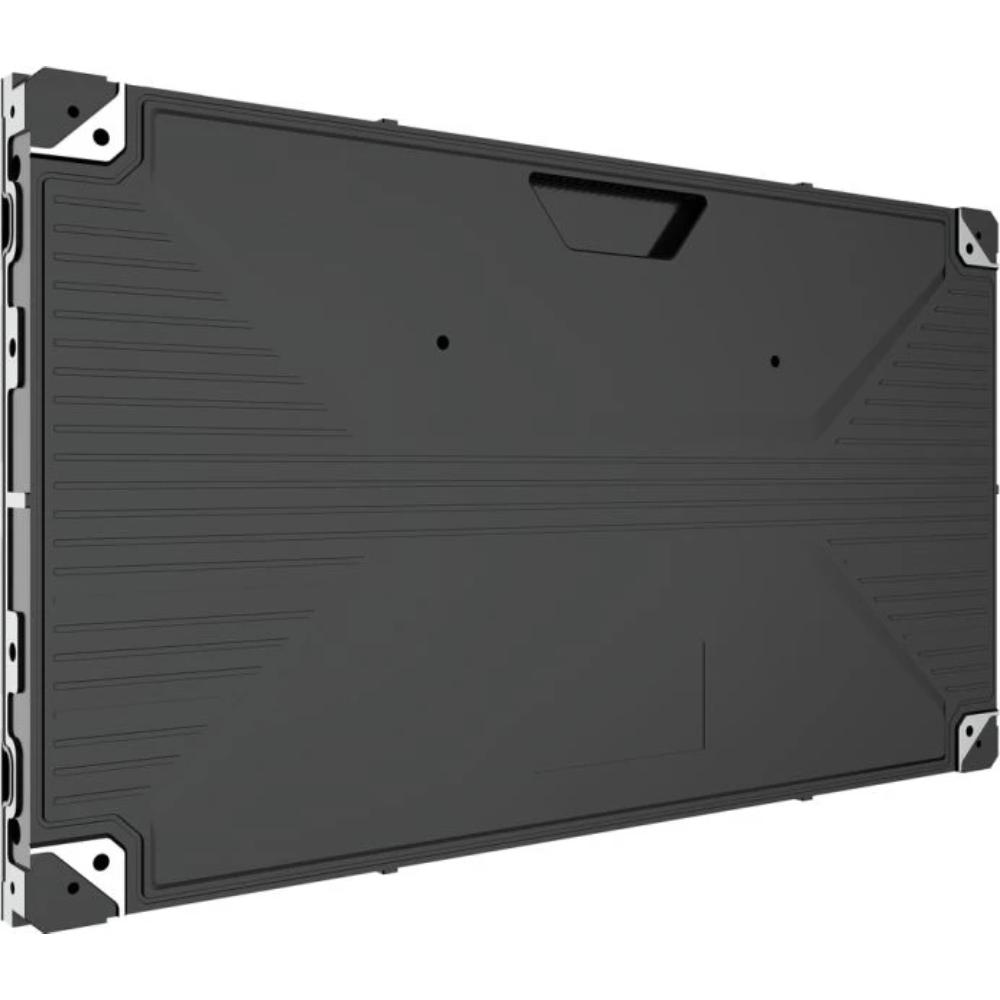

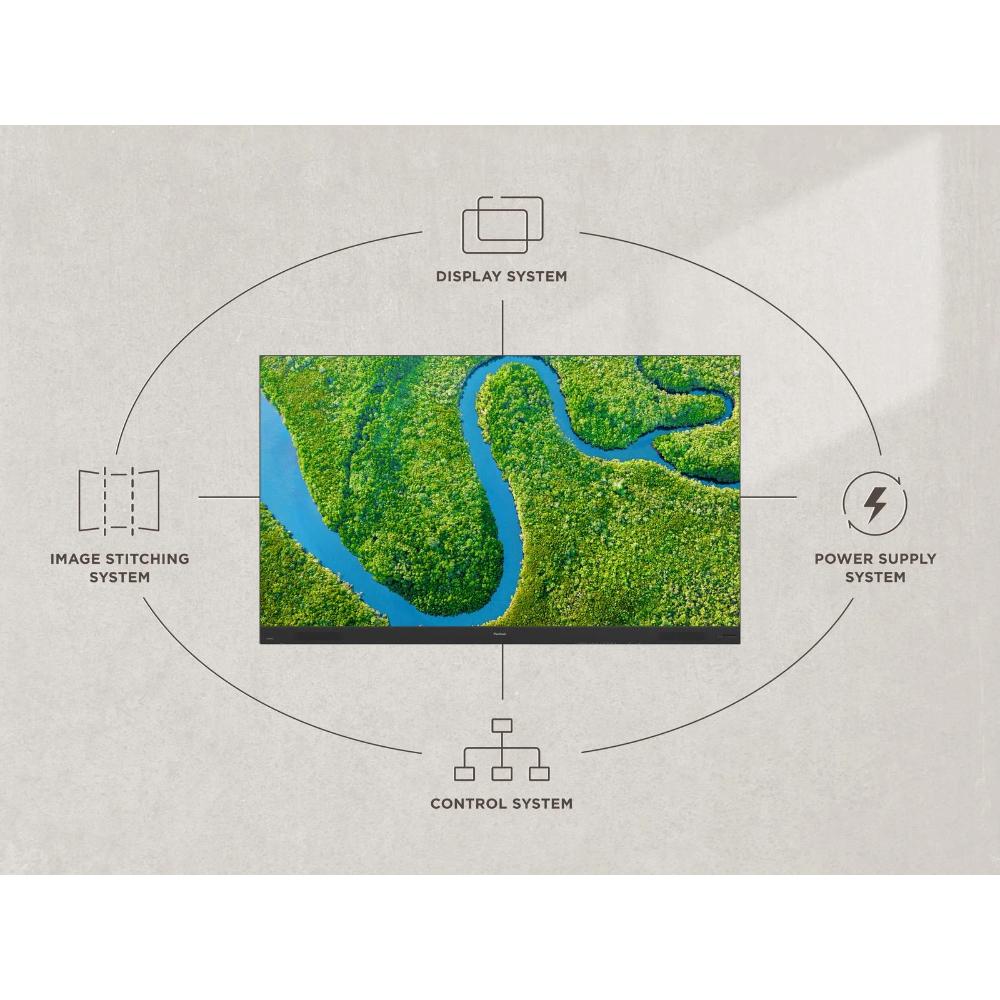

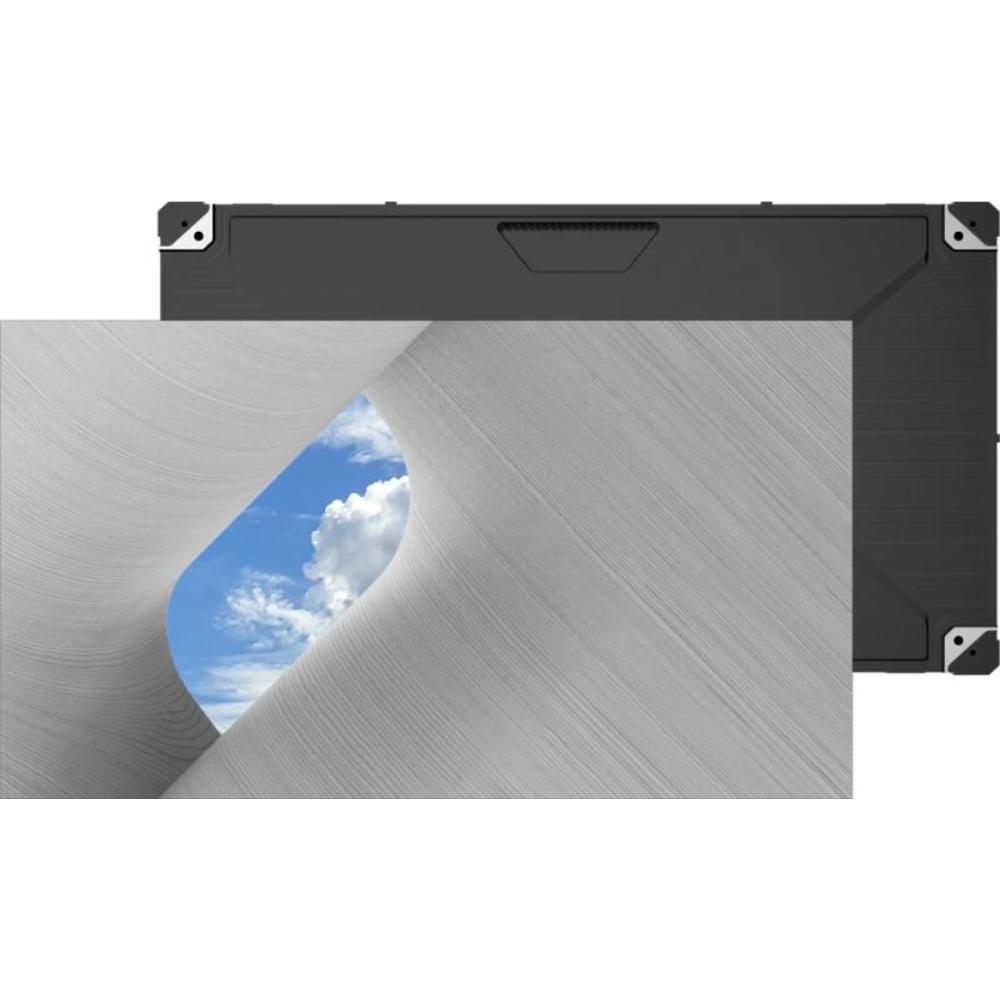

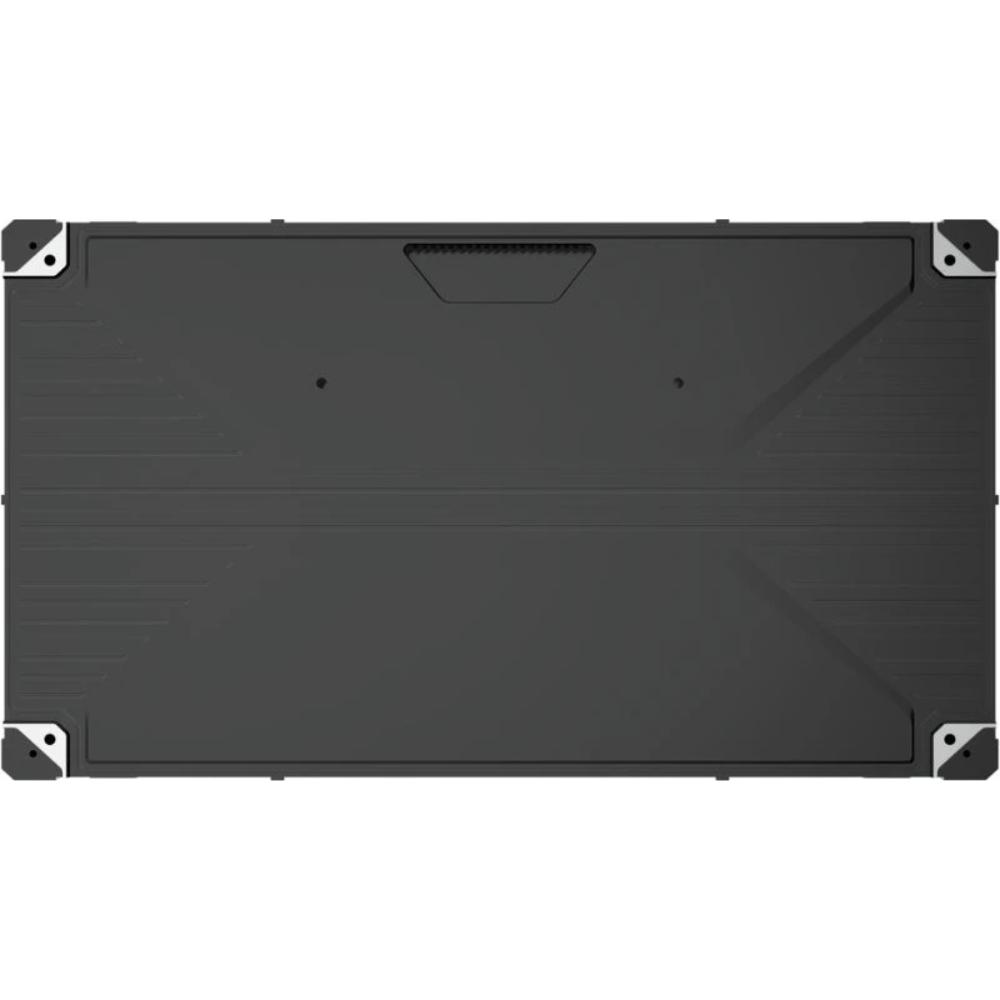

The ViewSonic LDC Series All-in-One LED Display is a cutting-edge, customizable video wall solution designed for professional and commercial spaces. With a 9m x 4m LED wall dimension and 36 cabinets (6x6 array), this display delivers 1920×1080 Full HD resolution and a 3840Hz ultra-high refresh rate for smooth, vibrant visuals.

Its native 16:9 aspect ratio cabinets make it easy to configure FHD and even 4K video walls, while Glue-on-Board (GOB) surface treatment ensures IP54-rated protection against dust, moisture, and collisions. With a detachable control box, ultra-slim 31mm profile, and nearly 99% screen-to-body ratio, the LDC Series combines premium aesthetics with industrial durability.

Perfect for corporate lobbies, shopping malls, transportation hubs, auditoriums, showrooms, and control rooms, this all-in-one LED display ensures impactful presentations and reliable operation.

Key Features

  • 9m x 4m LED Wall – Expansive video wall with 7.29m² screen area

  • 1920×1080 Full HD Resolution – Sharp and detailed imagery

  • 3840Hz Refresh Rate – Ultra-smooth playback for video and motion graphics

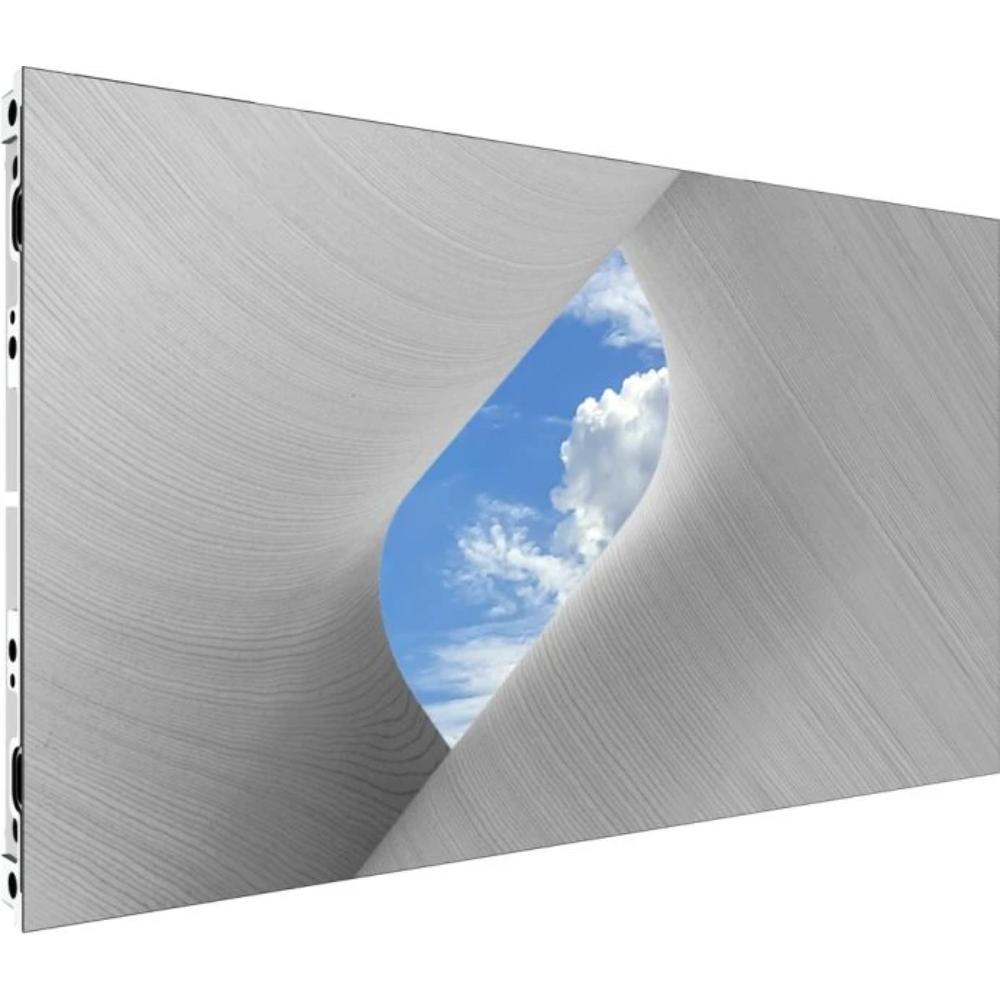

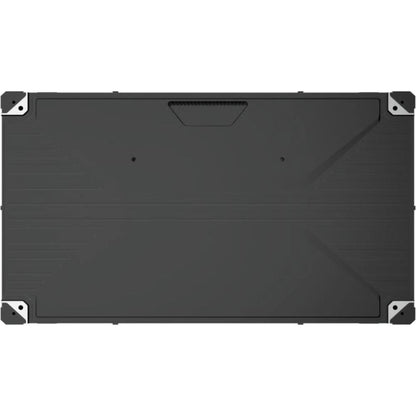

  • 36 LED Cabinets (6x6 Array) – Customizable and scalable configuration

  • Glue-on-Board (GOB) Surface – IP54 dustproof, moisture-proof & impact-resistant

  • Detachable Control Box (LD-SCB-011) – Minimalist design with easy access

  • LAN Control Management – Centralized operation and system monitoring

  • Slim & Bezel-Free Design – 31mm ultra-thin profile for seamless integration

  • High Brightness (600 nits) with 100-level adjustments and 6500:1 contrast ratio

  • Powerful Dual 30W Speakers – Clear and impactful sound without extra equipment

Technical Specifications

Display

  • Wall Dimension: 9m (W) × 4m (H)

  • Screen Area: 7.29m²

  • Cabinet Array: 6 × 6

  • Cabinet Quantity: 36 pcs

  • Resolution: 1920 × 1080 (Full HD)

  • Refresh Rate: 3840Hz

  • Optimal Viewing Distance: 4.3m

  • Brightness: 600 nits (adjustable)

  • Contrast Ratio: 6500:1

  • Pixel Pitch: 1.875mm

  • Viewing Angles: 170° (H/V)

  • LED Lifetime: 100,000 hours

Connectivity & Control

  • HDMI 2.0 (x4), DP 1.2 (In/Out), USB-A 3.0/2.0, USB-C, RJ45 LAN, RS232

  • Audio Out, Optical, IR Input/Extender

  • Embedded OS: Android 9.0 with 32GB storage (26GB usable)

  • LAN centralized management & split-screen modes

Audio

  • Built-in Speakers: 2 × 30W

Power

  • Avg. Power Consumption: 874.6W

  • Max Power Consumption: 2624W

  • Avg. Power per m²: 113.58W

  • Max Power per m²: 340.74W

  • Voltage: 100-120V/30A ~ 50/60Hz or 220-240V/15A ~ 50Hz

Build & Durability

  • Thickness: 31mm (ultra-slim)

  • Bezel: 6mm ultra-thin

  • IP Rating: IP54 (front)

  • Impact Protection: IK06

  • Weight per Cabinet: 5kg

  • Design: Frameless, wall-mountable, floor stand optional

Included Accessories

  • Control Box: LD-SCB-011

  • Accessory: LD-MISC-003

  • Remote Control, LAN Cable, Power Cord, Installation Guide, Spare LED Modules (7%)

Applications

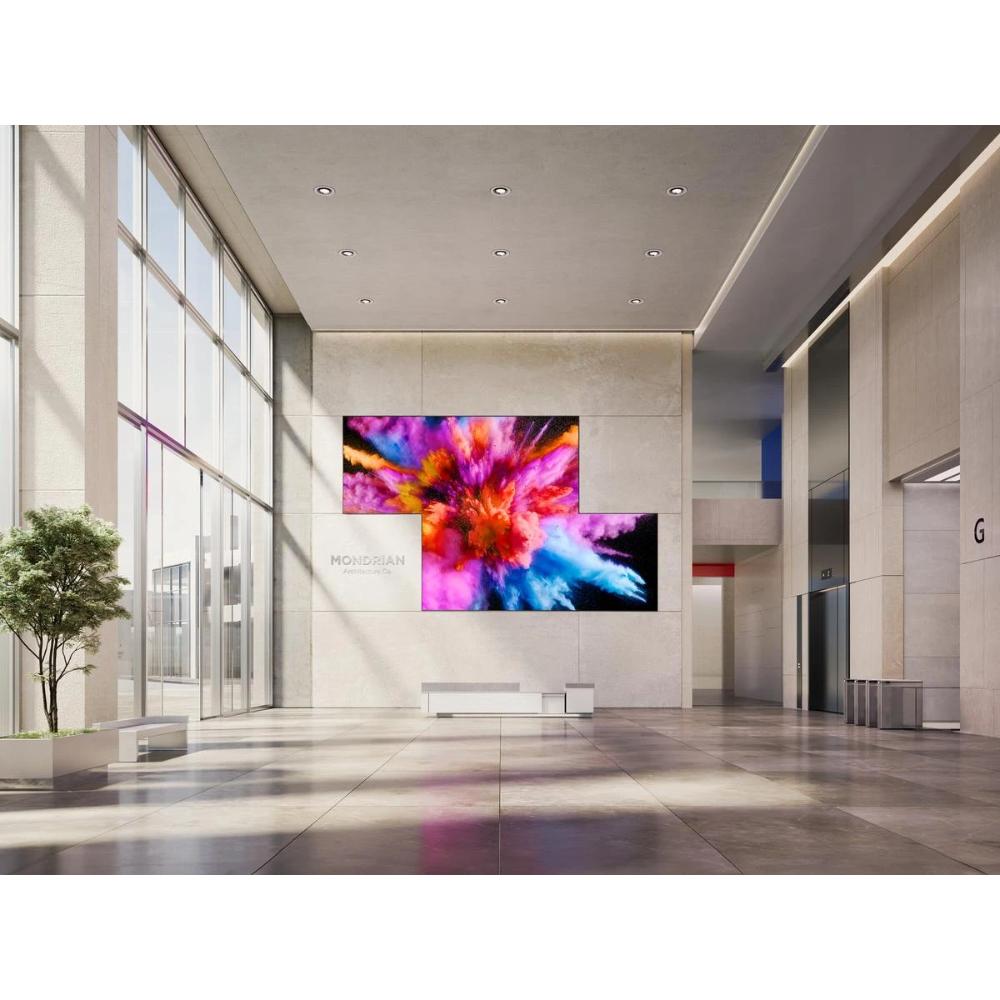

  • Corporate Lobbies & Reception Areas

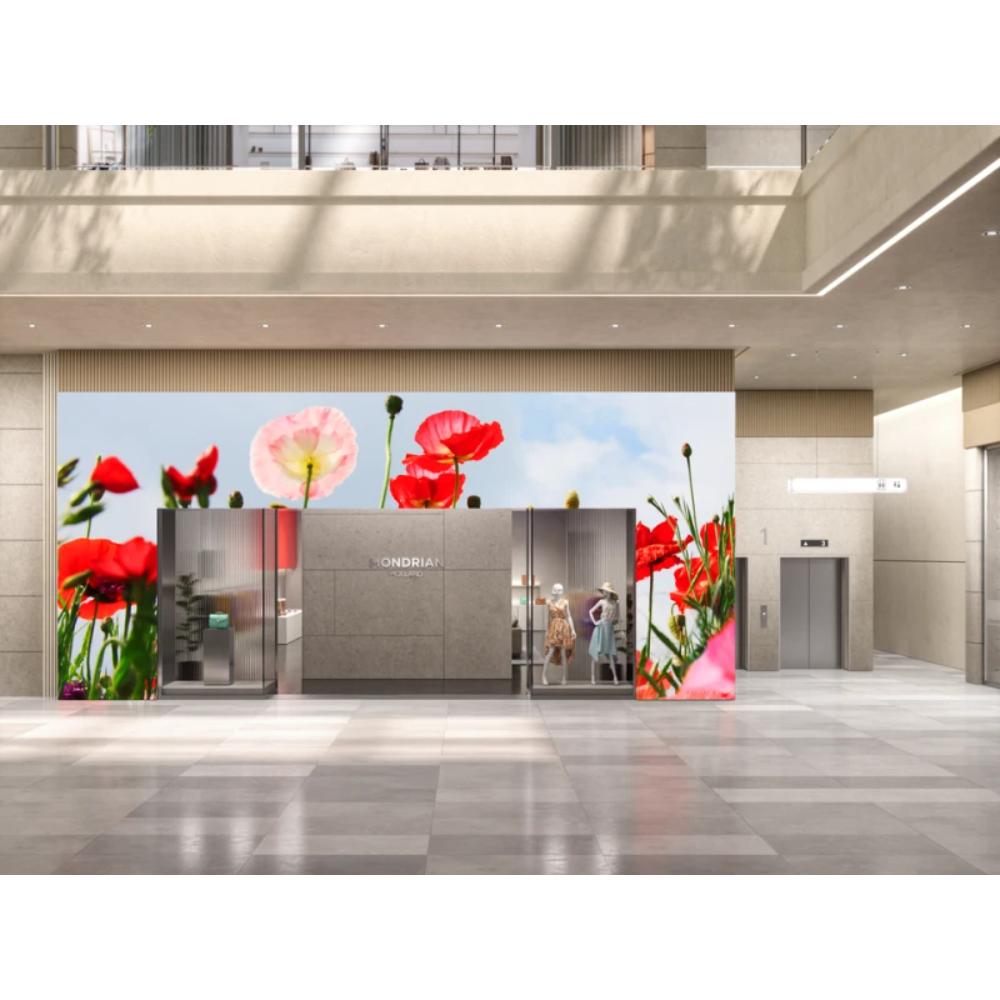

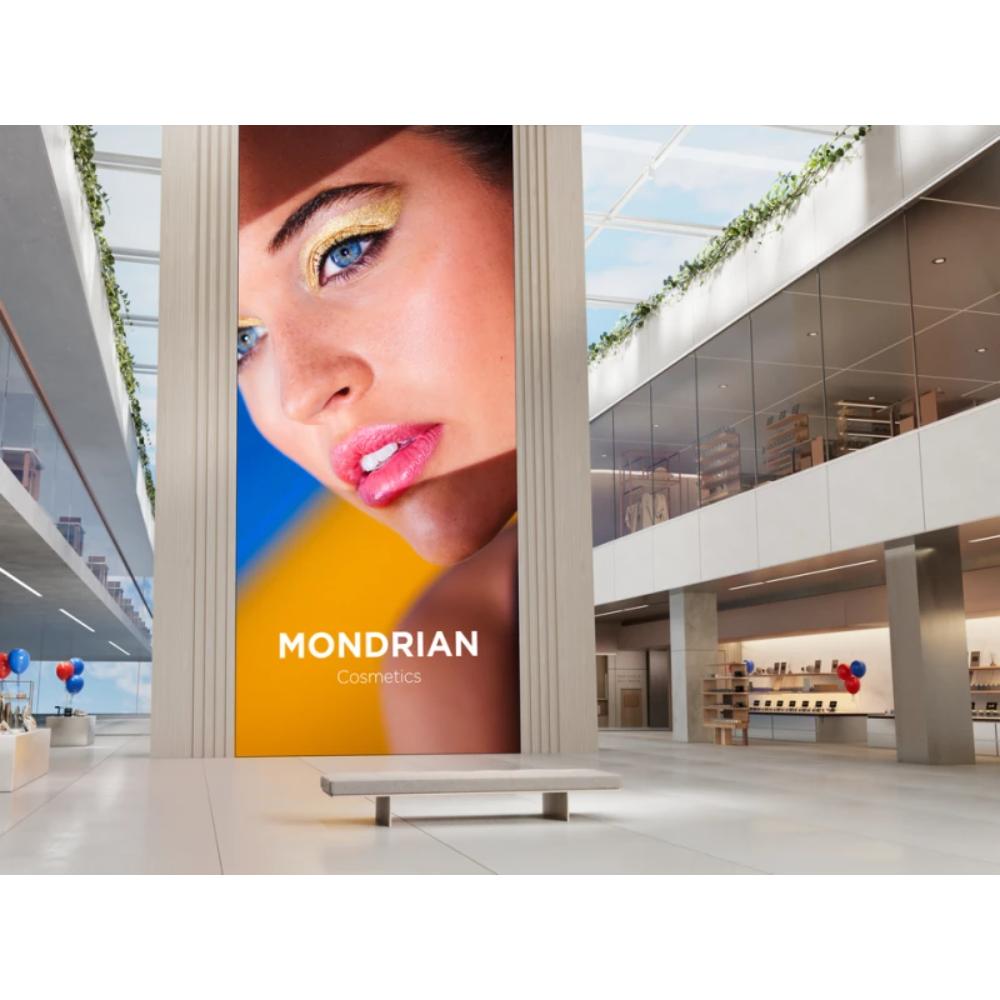

  • Shopping Malls & Store Entrances

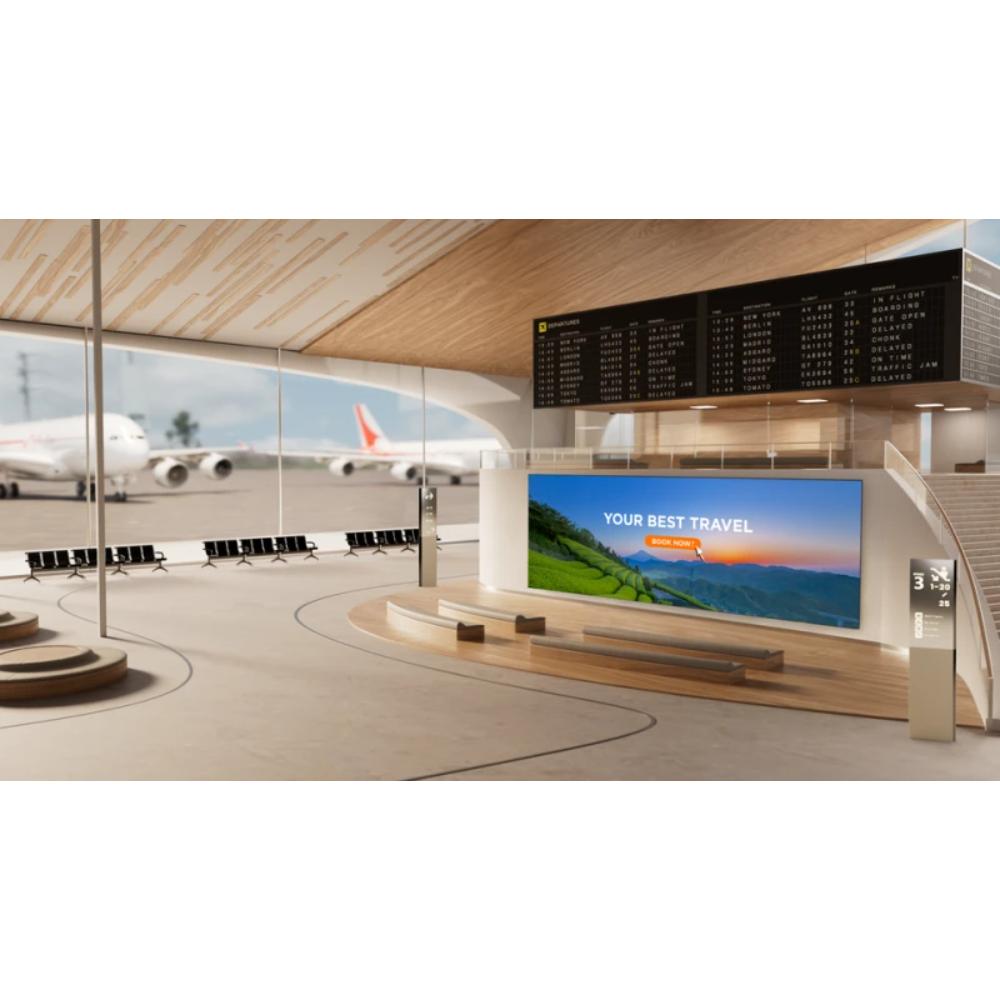

  • Transportation Hubs & Airports

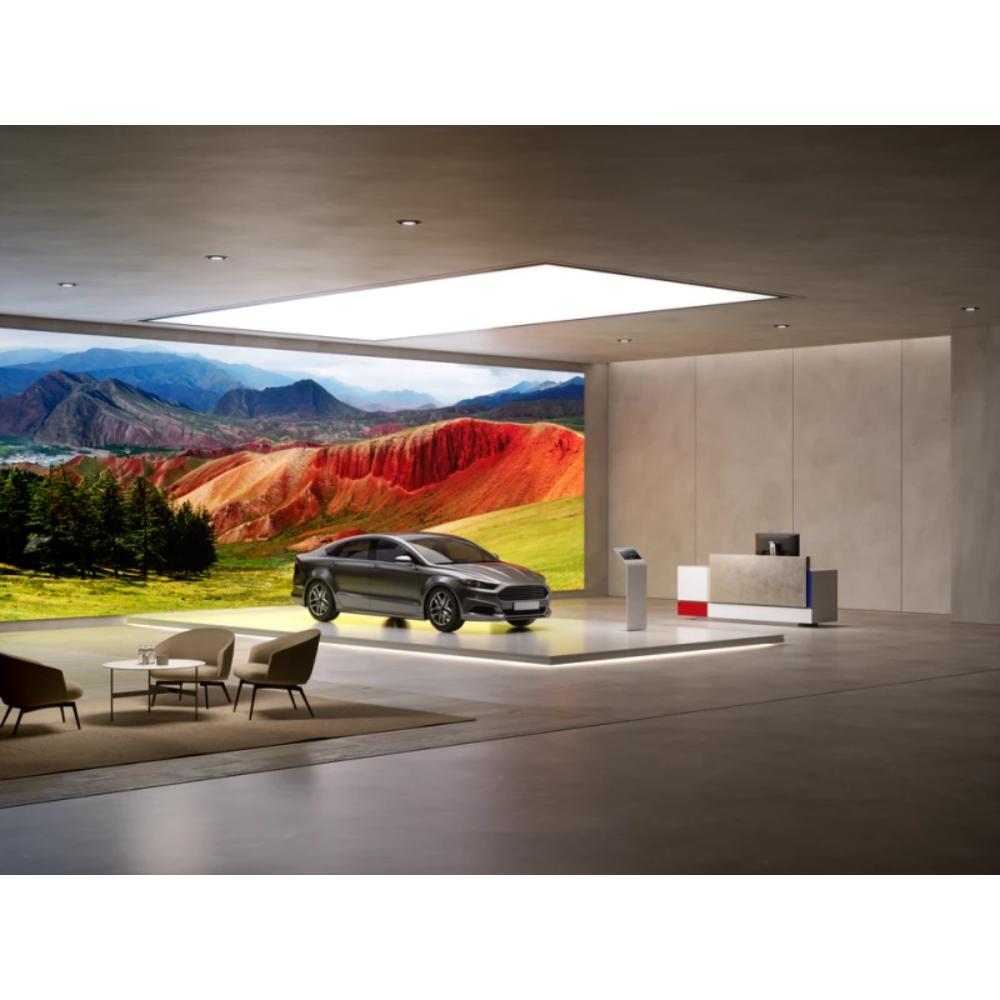

  • Car Showrooms & Luxury Retail Stores

  • Banquet Halls & Auditoriums

  • Control Rooms & Broadcasting Studios.
