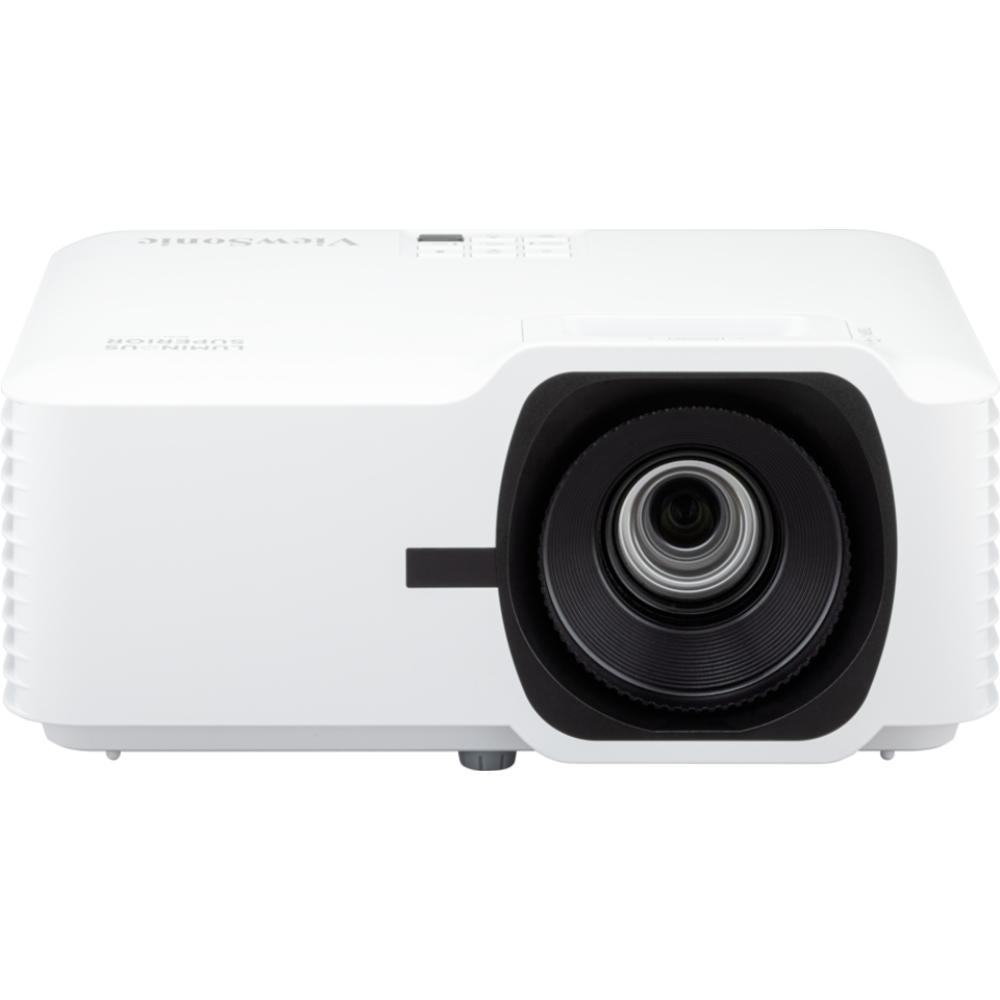

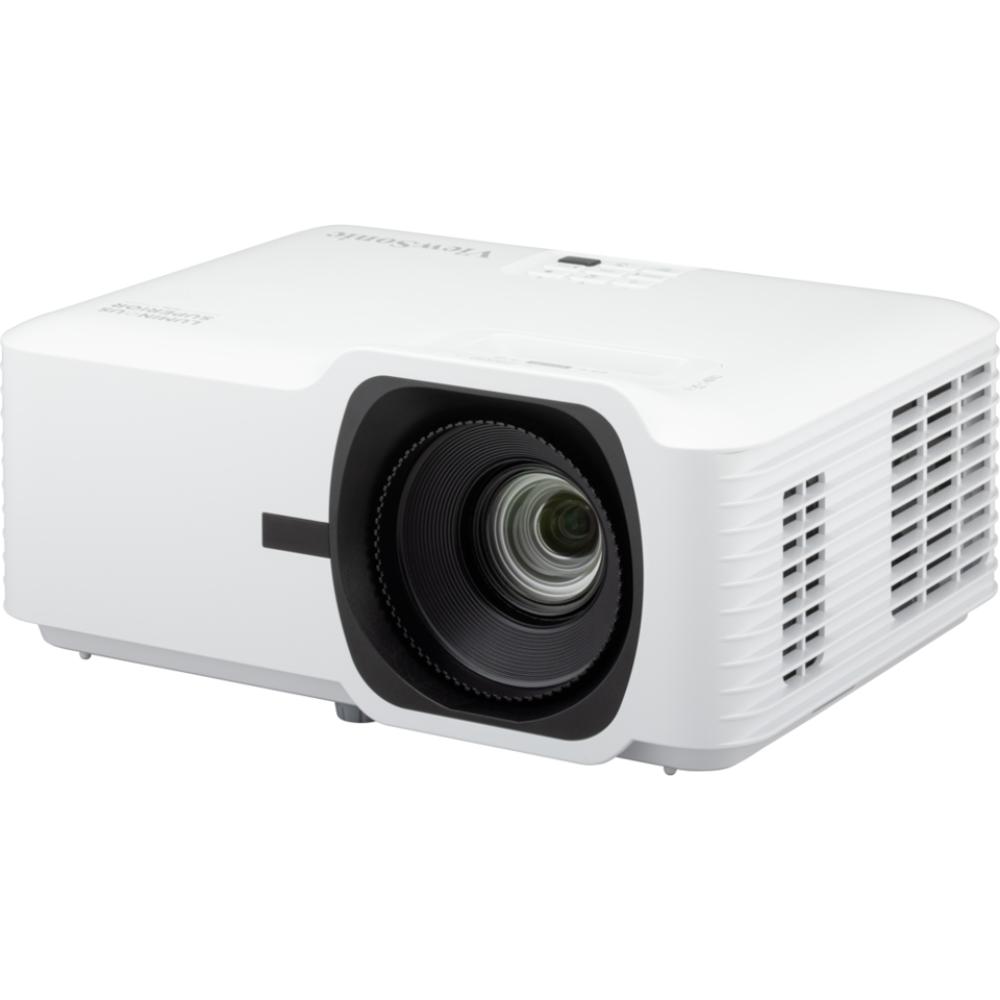

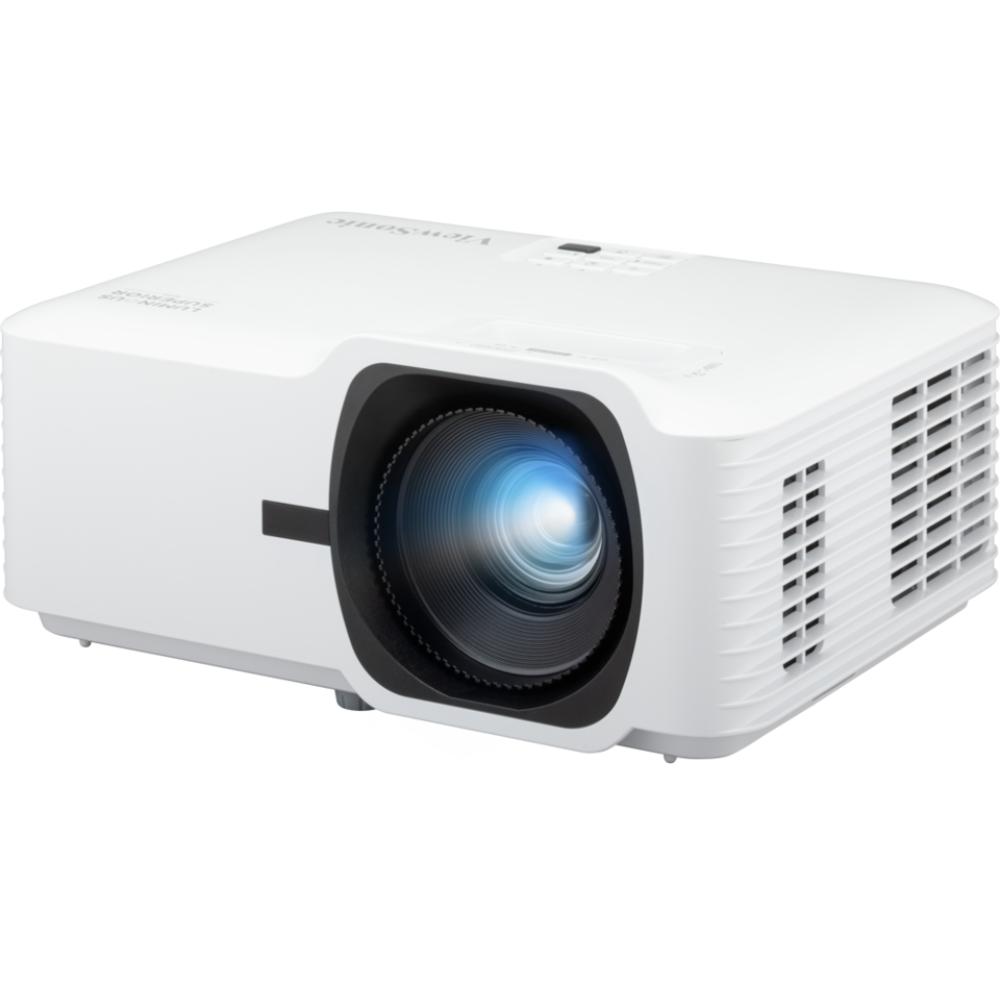

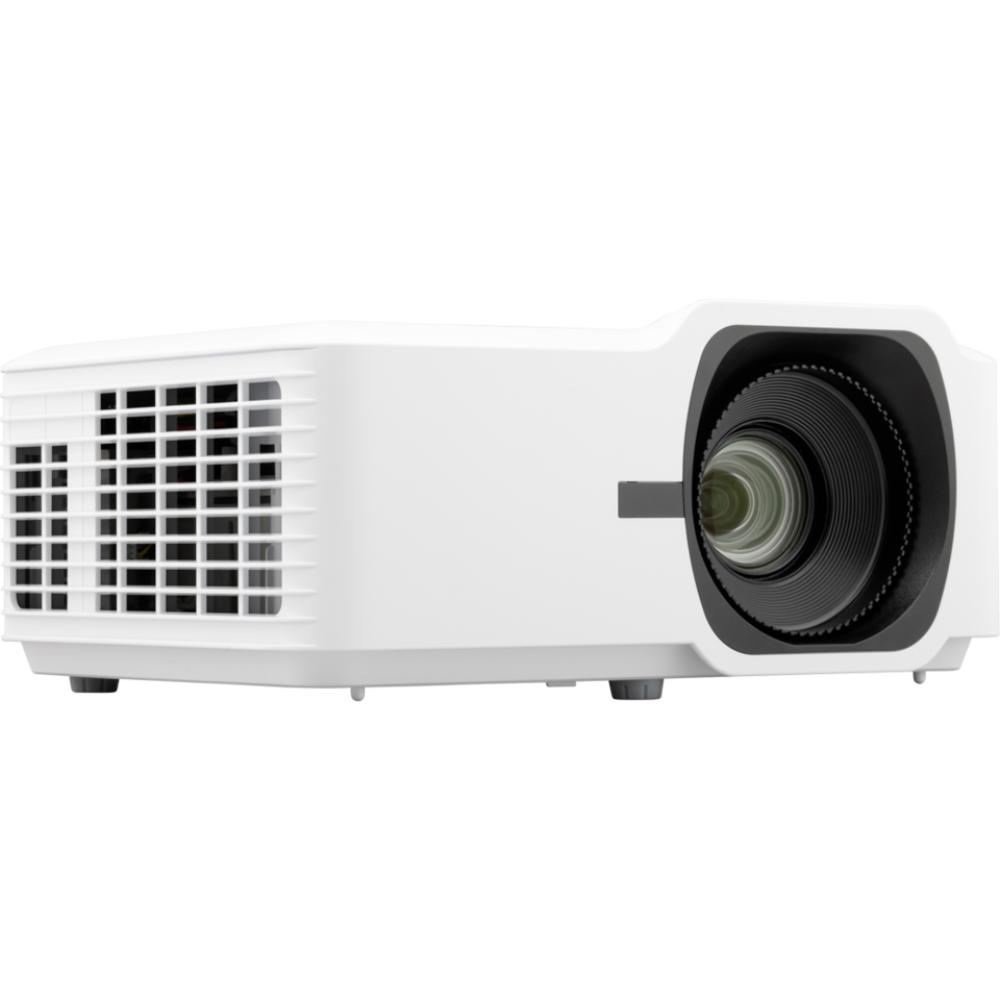

ViewSonic LSD600W Laser Installation Projector | 6000 ANSI Lumens | WXGA 1280×800 | 3,000,000:1 Contrast | 30,000-Hour Laser Life | 1.3x Optical Zoom | H/V Keystone | 360° Projection | Portrait Mode

The ViewSonic LSD600W is a high-brightness WXGA laser installation projector designed for corporate, commercial and large-venue applications. Part of ViewSonic's Luminous Superior series, it combines 6000 ANSI Lumens brightness with a lamp-free laser phosphor light source, providing bright projection with a rated lifespan of up to 30,000 hours in SuperEco/Eco mode.

Built around a 0.65" DMD chip and DLP projection technology, the LSD600W delivers a specified 3,000,000:1 contrast ratio and supports up to 1.07 billion colors. Its 1280 × 800 WXGA native resolution, image sizes up to 300 inches, and high brightness make it suitable for boardrooms, auditoriums, public venues, sports simulation environments and continuous-use applications.

Installation flexibility is provided through a 1.3x optical zoom, 0.8x–2.0x digital zoom, ±30° horizontal and vertical keystone correction, 4-corner adjustment, 360° projection and 90° portrait mode. An IP6X-rated sealed optical engine provides filter-free operation and helps protect internal components from dust.

Key Features

6000 ANSI Lumens High Brightness

The LSD600W produces 6000 ANSI Lumens of brightness, with 6600 Center Lumens, providing vivid and clearly visible images for boardrooms, auditoriums, public venues and other large spaces.

WXGA 1280 × 800 Resolution

The projector features a native 1280 × 800 WXGA resolution and supports input resolutions up to WUXGA Reduced Blanking 1920 × 1200.

3,000,000:1 Contrast Ratio

The LSD600W features a specified 3,000,000:1 contrast ratio, enabled by its 0.65" DMD chip and DLP projection technology.

3rd Generation Laser Phosphor Technology

The projector uses 3rd-generation laser phosphor technology for bright, consistent projection without a conventional lamp.

The supplied specifications rate the light source at:

• 20,000 hours Normal Mode
• 30,000 hours SuperEco/Eco Mode

The lamp-free design also enables instant power-on and power-off operation.

Up to 300" Large-Screen Projection

The LSD600W supports projected image sizes from 30" to 300", providing a large-screen display solution for commercial and professional environments.

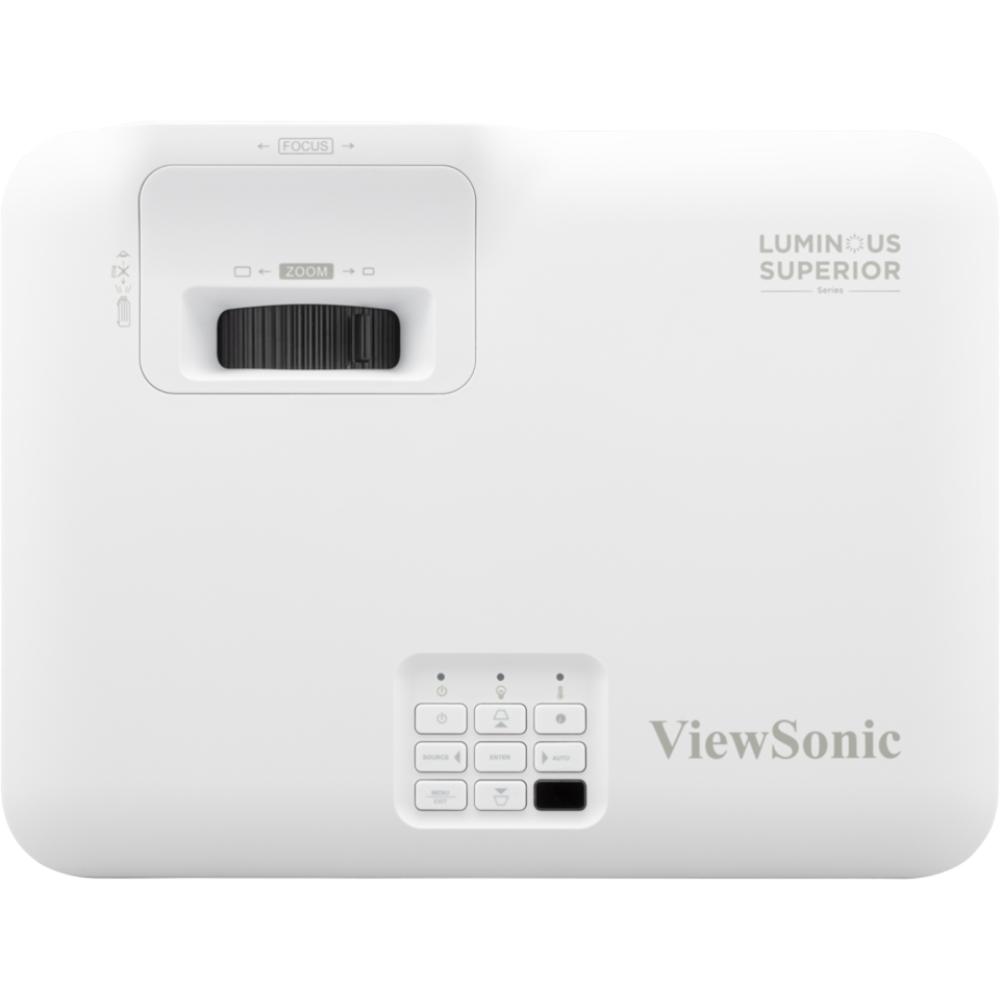

1.3x Optical Zoom

The 1.3x optical zoom provides flexibility when selecting an installation position, allowing users to achieve the desired image size without substantially changing the projector's placement.

H/V Keystone Correction

The projector provides:

• Horizontal Keystone: ±30°
• Vertical Keystone: ±30°

Combined with 4-corner adjustment, these functions help correct image geometry for flexible installation.

360° Projection

The LSD600W can be rotated vertically for projection onto walls, ceilings and floors, providing additional flexibility for creative and commercial applications.

90° Portrait Mode

The dedicated portrait mode supports applications such as projection mapping, staging and creative advertising where vertically oriented projection is required.

Reliable DLP Projection

The LSD600W uses DLP projection technology with a 0.65" DMD chip, providing consistent color performance over time. Its sealed optical engine is rated IP6X, helping prevent dust from reaching internal optical components.

The filter-free design reduces maintenance requirements while supporting long-term operation.

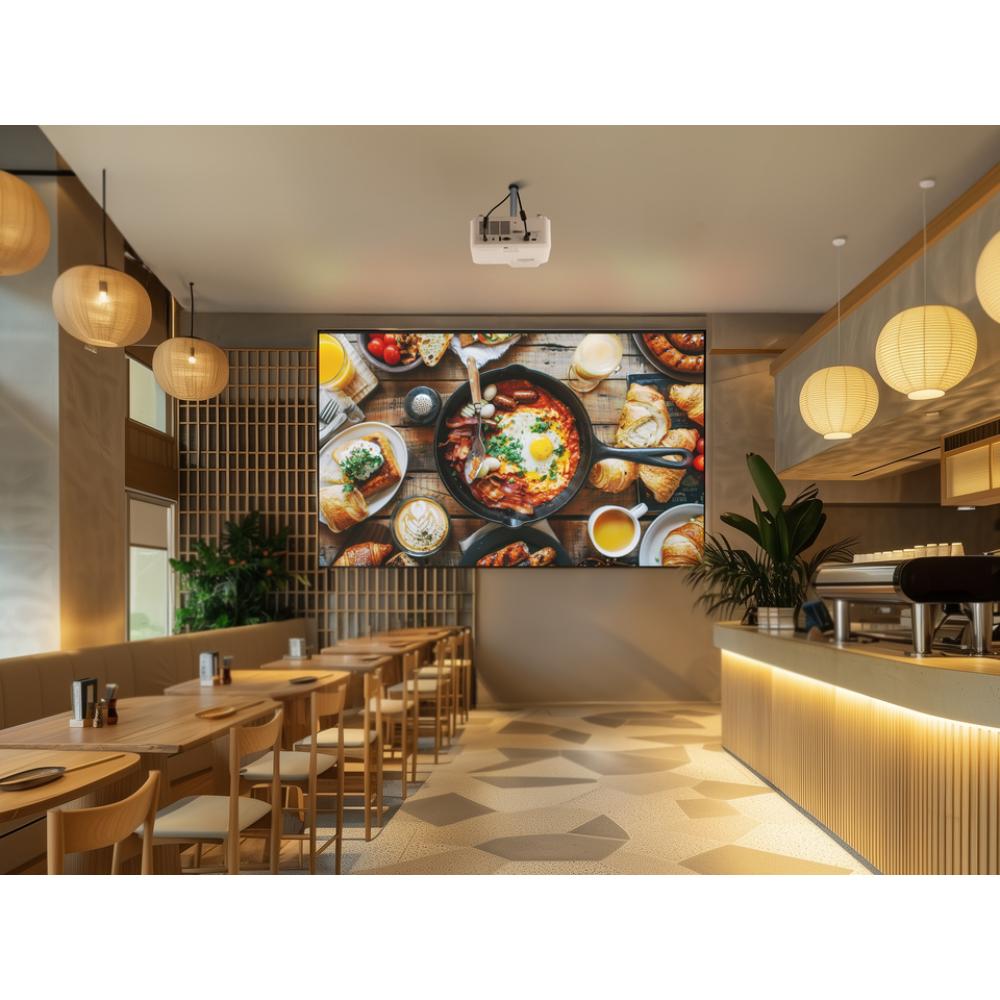

24/7 Operation

The projector's cooling design supports 24/7 operation, making it suitable for environments requiring continuous projection such as:

• Retail stores
• Shopping malls
• Museums
• Airports
• Public venues
• Commercial installations

Energy-Efficient Laser Operation

The lamp-free laser phosphor light source provides a long operating lifespan while reducing maintenance requirements associated with conventional projector lamps.

The supplied product information states that the LSD600W can consume up to 62% less power than competing projectors.

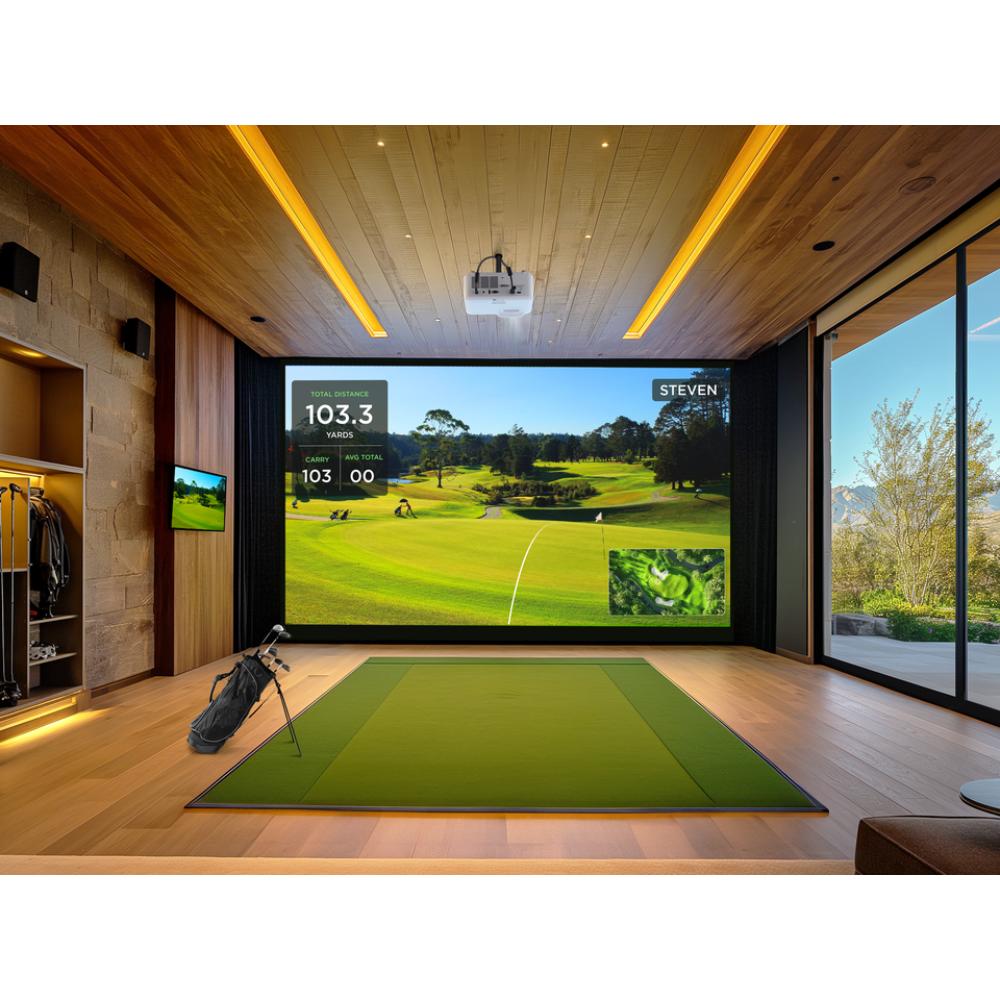

Golf Color Mode

The LSD600W features a dedicated Golf Color Mode designed to enhance greens and blues for sports simulation applications. The mode is intended to make fairways and putting surfaces appear more vivid and realistic.

Wireless Content Casting Support

The projector includes a USB-A 5V/1.5A power output for powering the optional ViewShare Wireless Screen Casting Kit.

ViewShare is sold separately and can provide wireless content-sharing functionality without requiring a separate power adapter.

Software Update via USB

The LSD600W supports projector software updates through a USB cable connection to a laptop, providing a convenient method for updating the projector without requiring a service-center visit.

Technical Specifications

Specification	Details
Product	ViewSonic LSD600W
Projector Type	Laser Installation Projector
Projection System	0.65" WXGA
Native Resolution	1280 × 800
Brightness	6000 ANSI Lumens
Center Brightness	6600 Center Lumens
Contrast Ratio	3,000,000:1
Display Colors	1.07 Billion Colors
Light Source	Laser Phosphor
Light Source Life	20,000 hours Normal / 30,000 hours SuperEco
Lens	F=2.43–2.78, f=16.90–21.61mm
Projection Offset	124% ±10%
Throw Ratio	1.18–1.54
Optical Zoom	1.3x
Digital Zoom	0.8x–2.0x
Image Size	30"–300"
Throw Distance	0.76–9.95m
100" Throw Distance	2.54m
Keystone	H: ±30° / V: ±30°
Audible Noise	32dB Normal / 27dB Eco
Input Lag	25ms
Resolution Support	VGA 640×480 to WUXGA RB 1920×1200
HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency	15K–102KHz
Vertical Scan Rate	24–120Hz

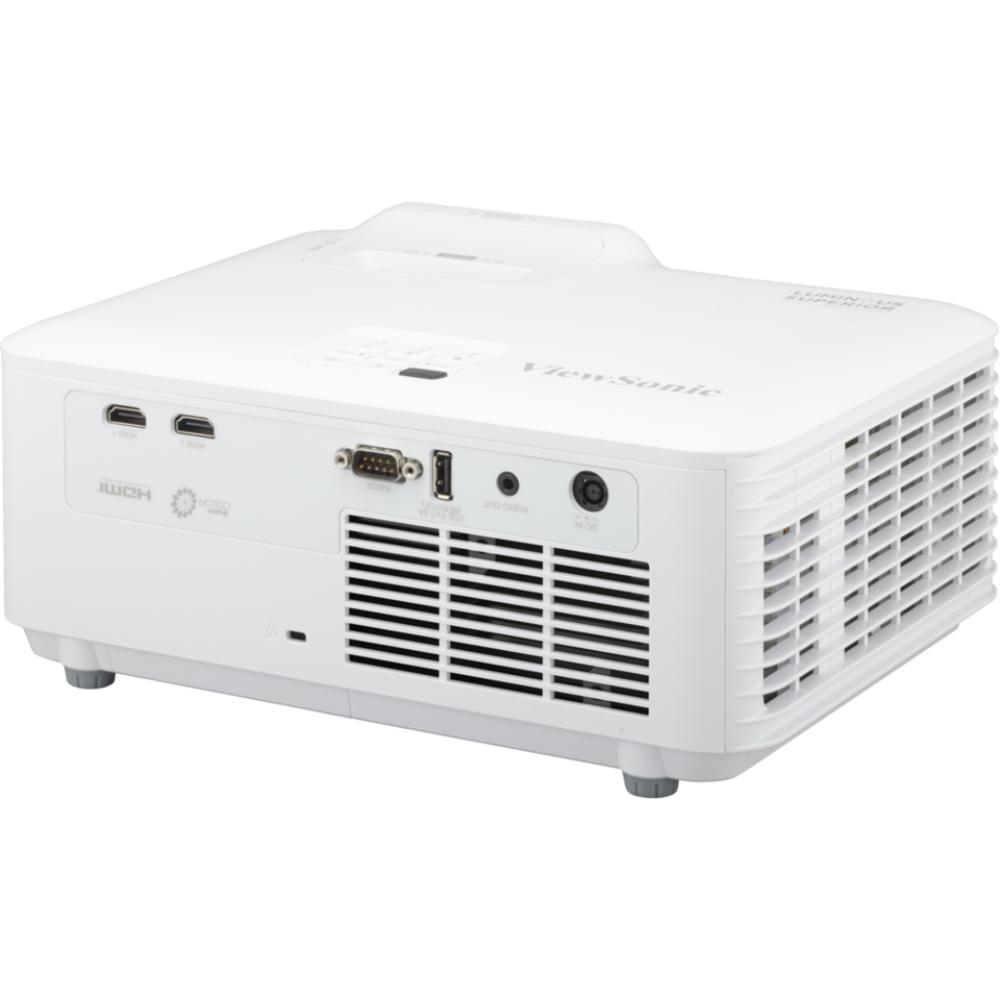

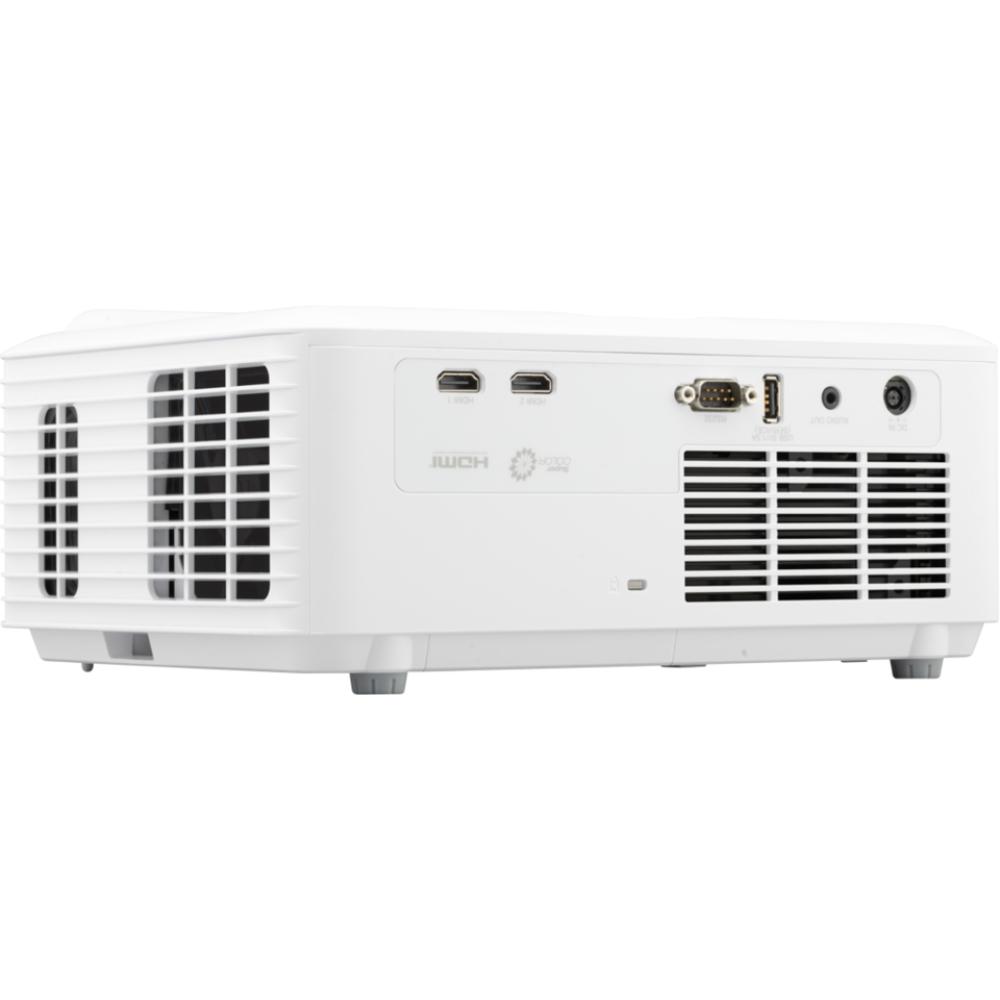

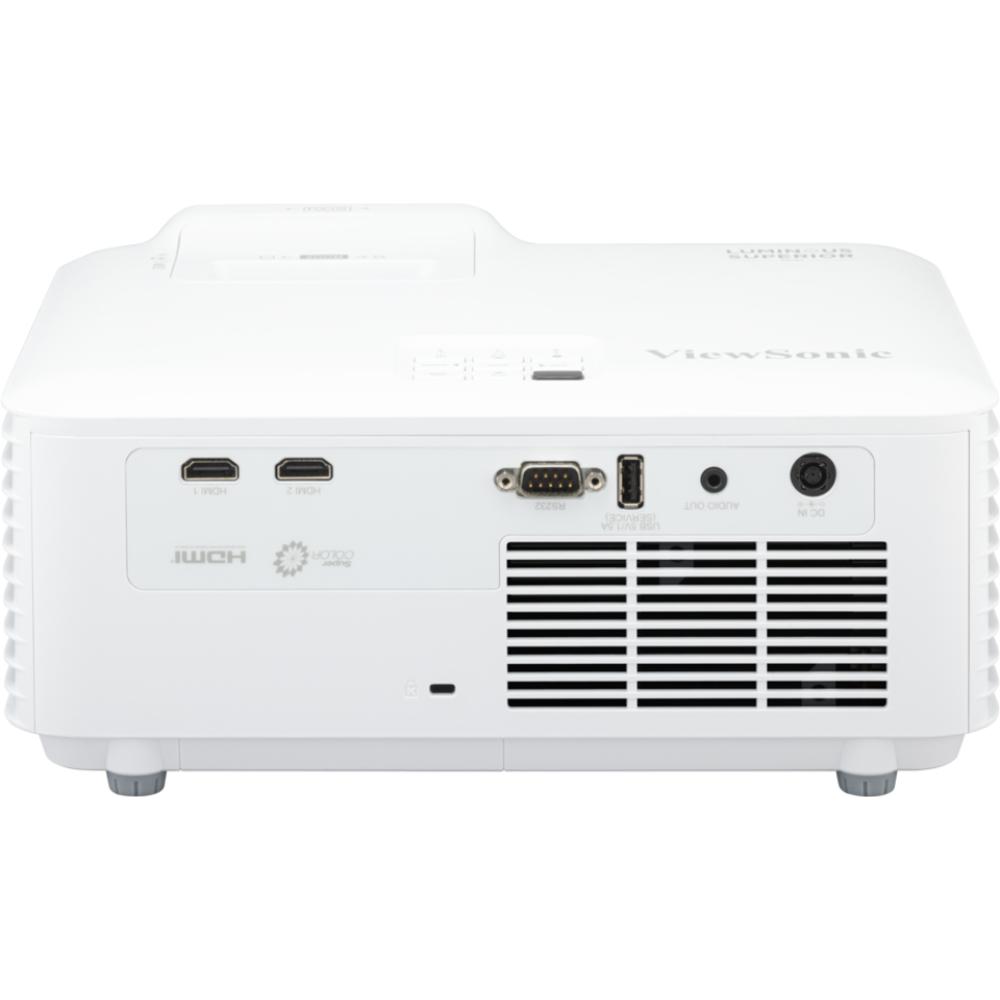

Connectivity

Port / Connection	Details
HDMI	2 × HDMI 1.4 / HDCP 1.4
Audio Output	1 × 3.5mm
USB-A Power	1 × USB-A, 5V/1.5A
USB-A Service	1 × USB-A, shared with USB-A output
RS232	1 × DB-9 Pin Male
Speaker	15W

Installation Features

• 1.3x optical zoom
• 0.8x–2.0x digital zoom
• Horizontal and vertical keystone correction
• 4-corner adjustment
• 360° projection
• 90° portrait mode
• 30"–300" projection size
• 24/7 operation support
• IP6X-rated sealed optical engine
• Filter-free design

Power & Physical Specifications

Specification	Details
Power Adapter Input	100–240V AC
Power Adapter Output	19.5V DC / 11.79A
Power Consumption	163W Normal
Standby Power	<0.5W
Operating Temperature	0–40°C
Dimensions	286 × 216 × 129mm
Net Weight	2.9kg
Gross Weight	4.6kg
Packing Dimensions	400 × 280 × 155mm
Carton	Brown

OSD Languages

The LSD600W supports multiple OSD languages, including English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, Traditional Chinese, Simplified Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese and Hungarian.

The supplied specification also lists Norsk among the OSD languages, with the source indicating a total of 23 languages.

Standard Accessories

• Power Cord × 1

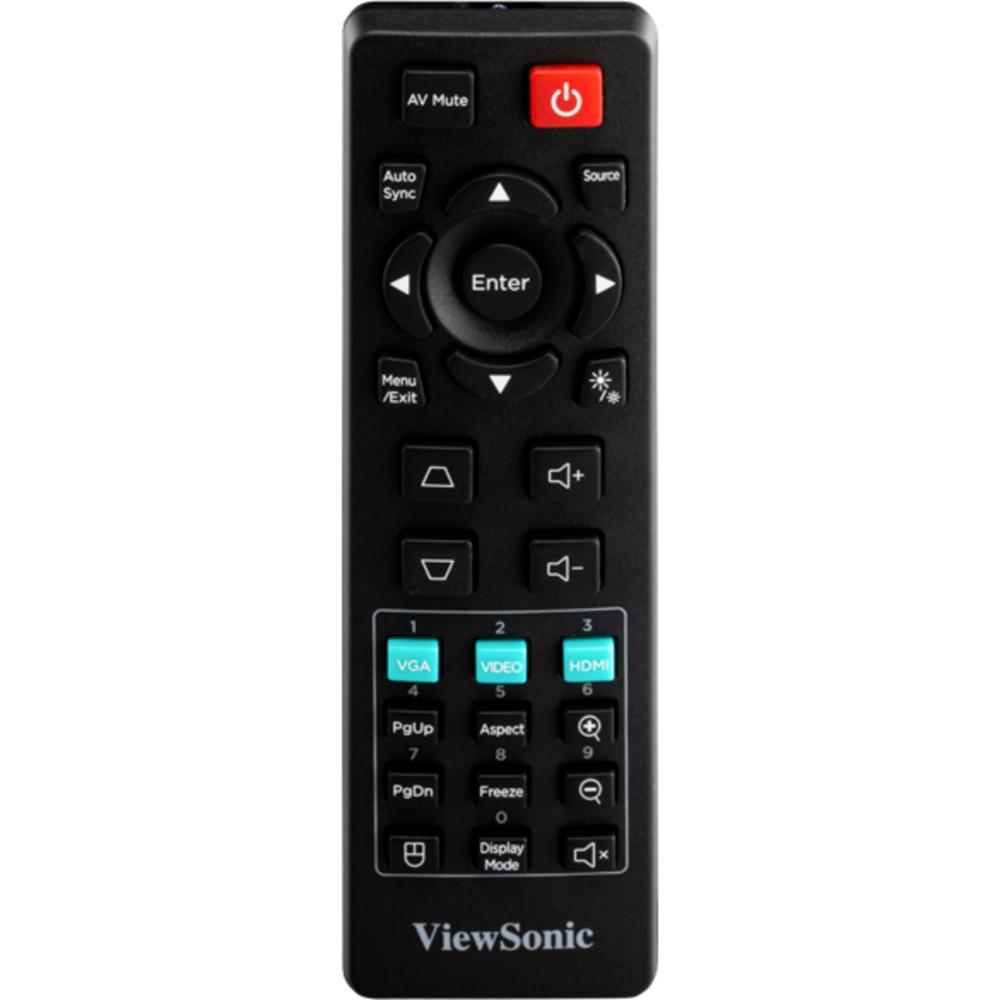

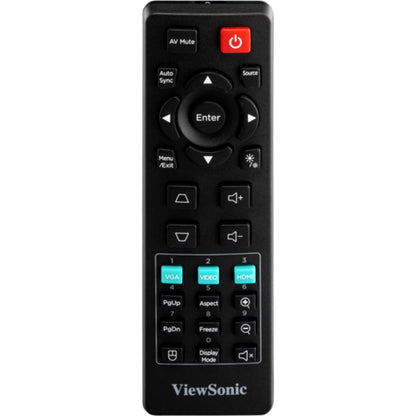

• Remote Control × 1
• Quick Start Guide × 1
• Warranty Card – CN Only

Optional Accessories

• Wall/Ceiling Mount: PJ-WMK-007
• Carry Bag: PJ-CASE-008

Ideal For

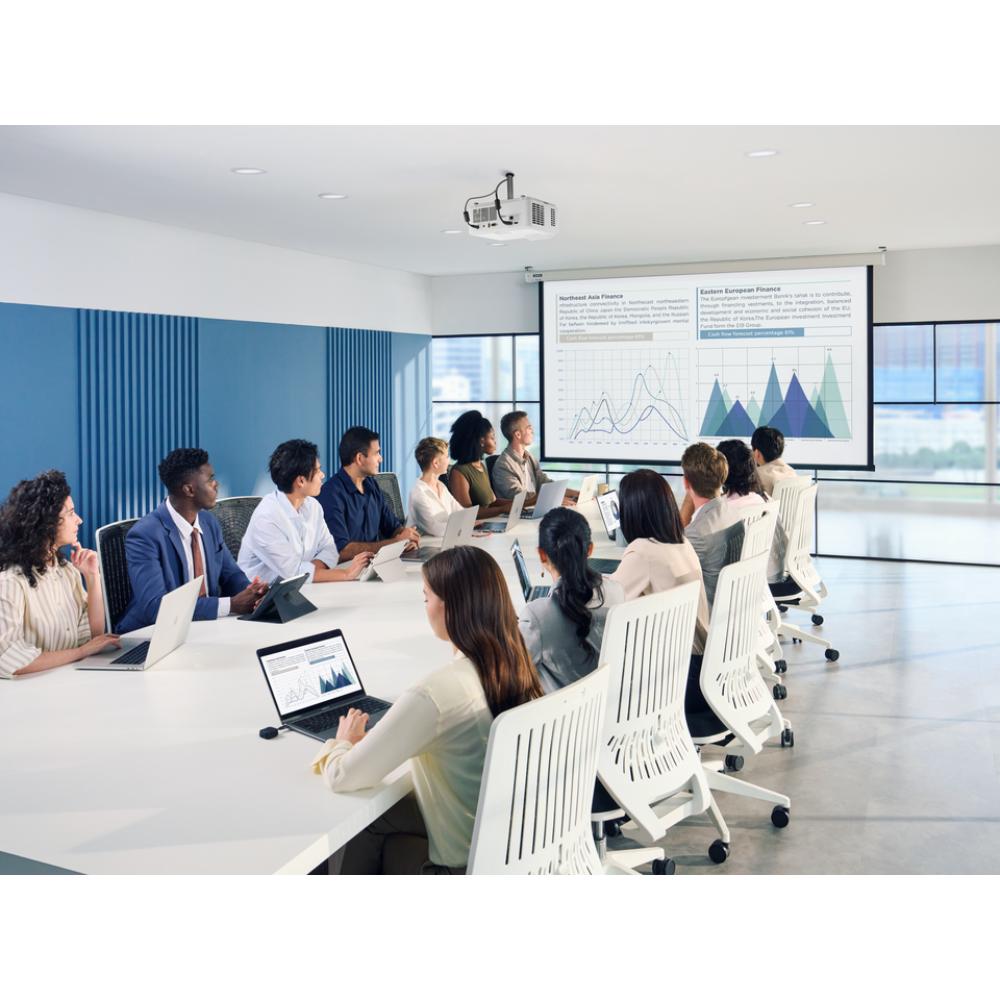

• Corporate boardrooms
• Conference rooms

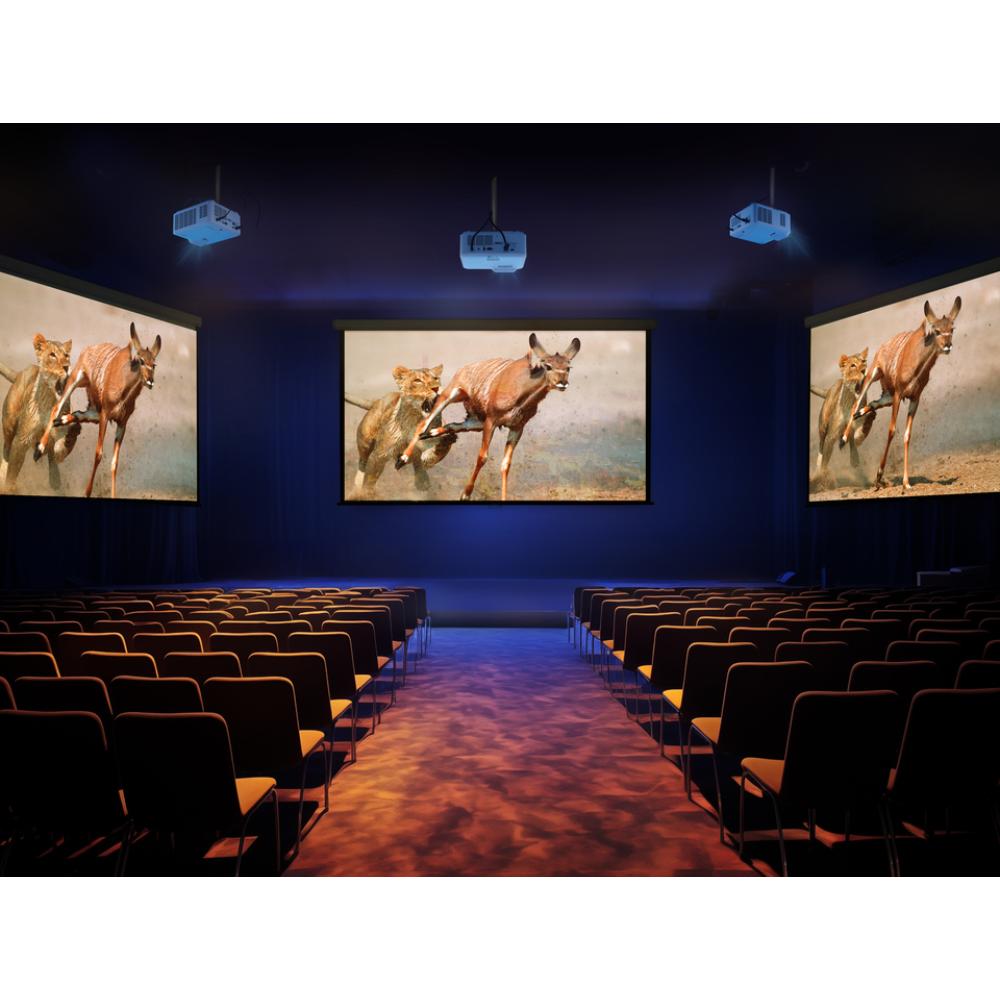

• Auditoriums
• Commercial venues
• Public spaces
• Museums
• Retail stores
• Shopping malls
• Airports
• Sports simulation
• Golf simulation
• Projection mapping
• Stage and event applications
• Creative advertising
• Large-screen presentations
• 24/7 projection environments

Why Choose ViewSonic LSD600W?

The ViewSonic LSD600W combines high-brightness 6000 ANSI Lumens laser projection with WXGA resolution, long light-source life and extensive installation flexibility. Its 1.3x optical zoom, H/V keystone correction, 4-corner adjustment, 360° projection, portrait mode, IP6X sealed optical engine and 24/7 operation capability make it suitable for demanding corporate, commercial and public-space installations.
