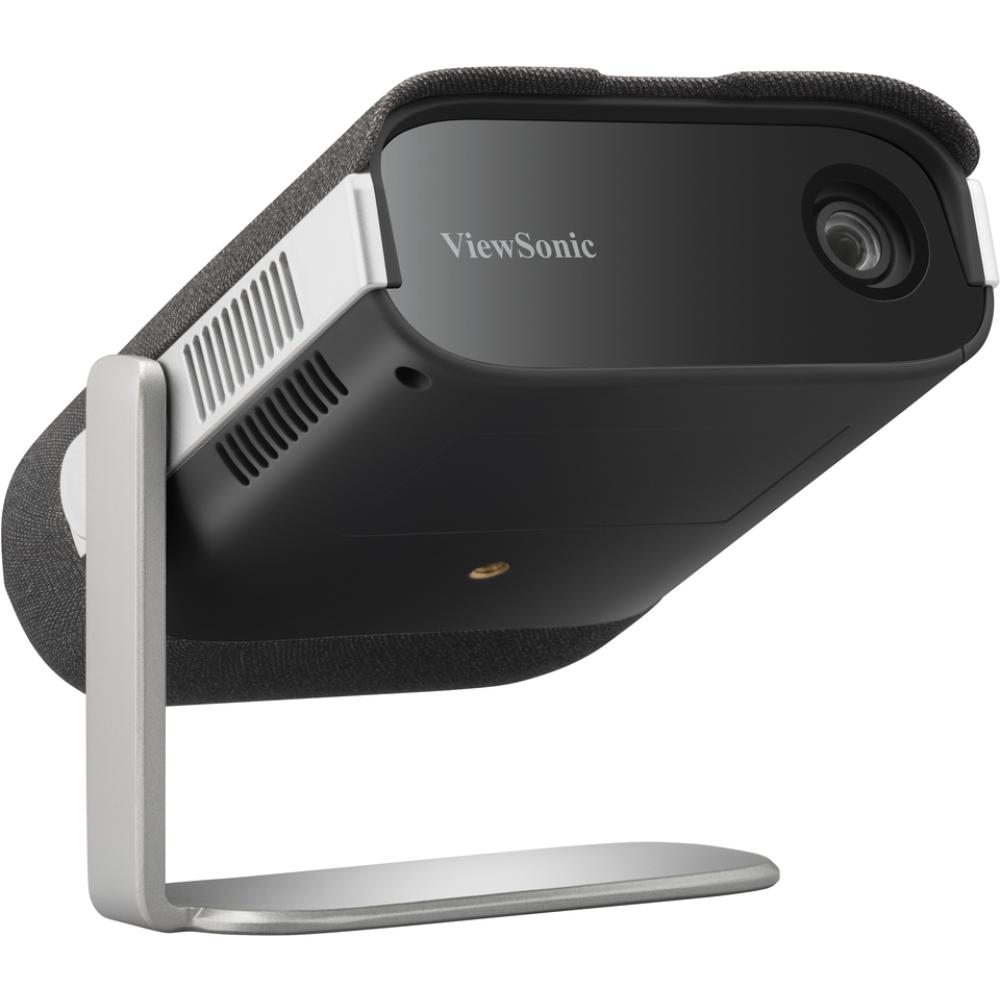

ViewSonic M1X Smart LED Portable Projector | 360° Projection | 360 LED Lumens | WVGA 854×480 | Harman Kardon Speakers | Built-in Battery | Wi-Fi | USB-C | Bluetooth

The ViewSonic M1X is an ultra-portable smart LED projector designed to deliver big-screen entertainment virtually anywhere. Weighing just 0.8kg, it combines a compact design with a patented 3-in-1 smart stand, allowing flexible 360° projection onto walls, ceilings, floors and other surfaces.

With a native 854 × 480 WVGA resolution, 360 LED Lumens, 120,000:1 contrast ratio and ViewSonic Cinema SuperColor+™ Technology with 125% Rec.709 color gamut, the M1X delivers vibrant and immersive visuals on screens from 24" to 100".

Built-in Harman Kardon 3W × 2 speakers provide powerful audio, while the integrated battery enables portable entertainment without requiring a constant power connection. The M1X also supports 5GHz Wi-Fi screen mirroring, USB-C content streaming, Bluetooth audio, HDMI, USB-A and 12GB available local storage, making it a versatile companion for home entertainment, travel and outdoor use.

Key Features

Patented 3-in-1 Smart Stand

The versatile metal stand provides more than simple support. It functions as a protective lens cover, enables automatic power-on when the lens is uncovered, and allows flexible positioning for customized projection angles.

360° Projection

The M1X can project content in different directions, making it suitable for walls, ceilings, floors and other surfaces. Its compact design allows the projector to be positioned wherever convenient for your viewing setup.

Horizontal & Vertical Keystone Correction

With ±40° horizontal and ±40° vertical keystone correction, the projector can compensate for angled placement and help produce a properly shaped image.

4-Corner Adjustment

The M1X also provides 4-corner adjustment, offering additional flexibility when the projector cannot be positioned directly in front of the projection surface.

Ultra-Portable Design

At only 0.8kg, the M1X is designed for easy transportation. Its compact 166 × 138 × 54mm dimensions make it suitable for carrying in a bag or backpack.

Large Screen Projection

The projector supports image sizes from 24" to 100", with a throw distance of 0.64m to 2.66m. It can produce a 60" screen from approximately 1.6m and a 100" screen from approximately 2.6m.

Harman Kardon Audio

Built-in Harman Kardon 3W Cube × 2 full-range speakers provide integrated stereo audio for movies, music, gaming and other entertainment without requiring external speakers.

Cinema SuperColor+™ Technology

ViewSonic's Cinema SuperColor+™ Technology delivers a 125% Rec.709 color gamut, producing vibrant and true-to-life colors for an enhanced viewing experience.

Built-in Battery

The integrated 12,000mAh battery supports portable operation without a constant power connection.

The supplied technical specification rates battery operation at:

• 2.5 hours in Normal Mode
• 3 hours in Eco Mode

The M1X can also be powered by a compatible USB-C power bank. The power bank should provide at least 45W (15V/3A) and support USB Power Delivery (PD).

USB-C Direct Content Streaming

Connect compatible mobile devices directly through USB-C for video streaming, FaceTime calls and supported gaming applications without requiring a docking station.

USB-C video streaming requires a compatible device. iPhone models prior to iPhone 15 require an Apple-authorized Lightning-to-HDMI adapter.

Wireless Screen Mirroring

The M1X supports 5GHz Wi-Fi screen mirroring, allowing compatible smart devices to cast or mirror content wirelessly.

Bluetooth Connectivity

Bluetooth 4.2 connectivity allows the M1X to function as a Bluetooth speaker or connect to compatible Bluetooth headphones and other audio devices.

12GB Available Local Storage

The projector includes 16GB total local storage, with approximately 12GB available storage, allowing compatible content to be stored directly on the projector.

Streaming Device Compatibility

The M1X is compatible with popular streaming devices including Chromecast, Apple TV, Fire TV and Roku. Its USB-A port can also provide power to compatible external streaming devices depending on their power requirements.

Streaming devices are not included with the projector.

Eye Care

The M1X features low blue-light functionality and reflective light technology. The product is certified by TÜV SÜD for its low blue-light ratio.

Long-lasting LED Light Source

The LED light source is rated for up to 60,000 hours in Normal Mode, providing long-term operation without conventional lamp replacement.

Technical Specifications

Specification	Details
Product	ViewSonic M1X
Projector Type	Smart LED Portable Projector
Projection System	0.2" WVGA
Native Resolution	854 × 480
Brightness	360 LED Lumens
Contrast Ratio	120,000:1
Display Colors	1.07 Billion Colors
Light Source	LED
Light Source Life	Up to 60,000 hours (Normal Mode)
Lens	F=1.7, f=5.5mm
Projection Offset	100% ±5%
Throw Ratio	1.2
Optical Zoom	Fixed
Image Size	24"–100"
Throw Distance	0.64m–2.66m
Keystone Correction	H: ±40° / V: ±40°
4-Corner Adjustment	Yes
Audible Noise	26dB Normal / 25dB Eco
Input Lag	73ms
Local Storage	16GB total / 12GB available
Resolution Support	VGA 640×480 to Full HD 1920×1080
HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency	15K–102KHz
Vertical Scan Rate	23–120Hz

Connectivity

Port / Connection	Details
HDMI	1 × HDMI 1.4 / HDCP 1.4
USB Type-C	1 × USB-C, 5V/1.5A
USB Type-A	1 × USB 2.0 Reader
USB-A Power	5V/1.5A
Wi-Fi	5GHz
Bluetooth	Bluetooth 4.2
Audio Out	3.5mm
Bluetooth Audio Out	Yes
USB Services	USB Type-A, shared with USB-A input

Audio

• Harman Kardon audio
• 3W Cube × 2 full-range speakers
• Bluetooth audio support
• Bluetooth headphone connectivity
• 3.5mm audio output
• Bluetooth speaker functionality

Smart & Wireless Features

• 5GHz Wi-Fi screen mirroring
• USB-C direct content streaming
• Bluetooth 4.2
• vCastSender phone control
• Local storage with 12GB available capacity
• HDMI connectivity
• USB media playback
• Compatibility with Chromecast, Apple TV, Fire TV and Roku
• USB-A power output for compatible streaming devices

Battery & Power

Specification	Details
Battery Capacity	12,000mAh
Battery Configuration	4,000mAh 3.7V × 3
Battery Runtime	2.5 hours Normal / 3 hours Eco
Power Adapter Input	100–240V
Power Adapter Output	19V DC / 3.26A
Power Consumption	35W Normal
Standby Power	<0.5W
Power Bank Support	USB-C PD power bank, minimum 45W / 15V 3A

Physical Specifications

Specification	Details
Dimensions	166 × 138 × 54mm
Net Weight	0.8kg
Gross Weight	1.87kg
Packing Dimensions	220 × 190 × 125mm
Operating Temperature	0–35°C
Color	Silver / Mesh-textured design

OSD & User Guide Languages

The M1X supports 23 OSD languages, including English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, Traditional Chinese, Simplified Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Hindi, Arabic, Vietnamese and Greek.

Standard Accessories

• Power Cord × 1
• USB-C Cable, 1m × 1
• Bluetooth Remote Control × 1
• Quick Start Guide
• Warranty Card
• Sleeve Bag

Ideal For

• Home entertainment
• Bedroom and ceiling projection
• Portable movie viewing
• Outdoor entertainment
• Travel and camping
• Gaming
• Presentations and casual business use
• Streaming from smartphones and mobile devices
• Wireless screen mirroring
• Music and Bluetooth audio

Why Choose ViewSonic M1X?

The ViewSonic M1X combines portability, flexible projection and integrated entertainment features in a compact projector. Its 3-in-1 smart stand, 360° projection capability, Harman Kardon audio, built-in battery, Wi-Fi, Bluetooth, USB-C streaming and local storage make it suitable for users who want a flexible big-screen experience without a conventional fixed projector setup.
