Western Digital

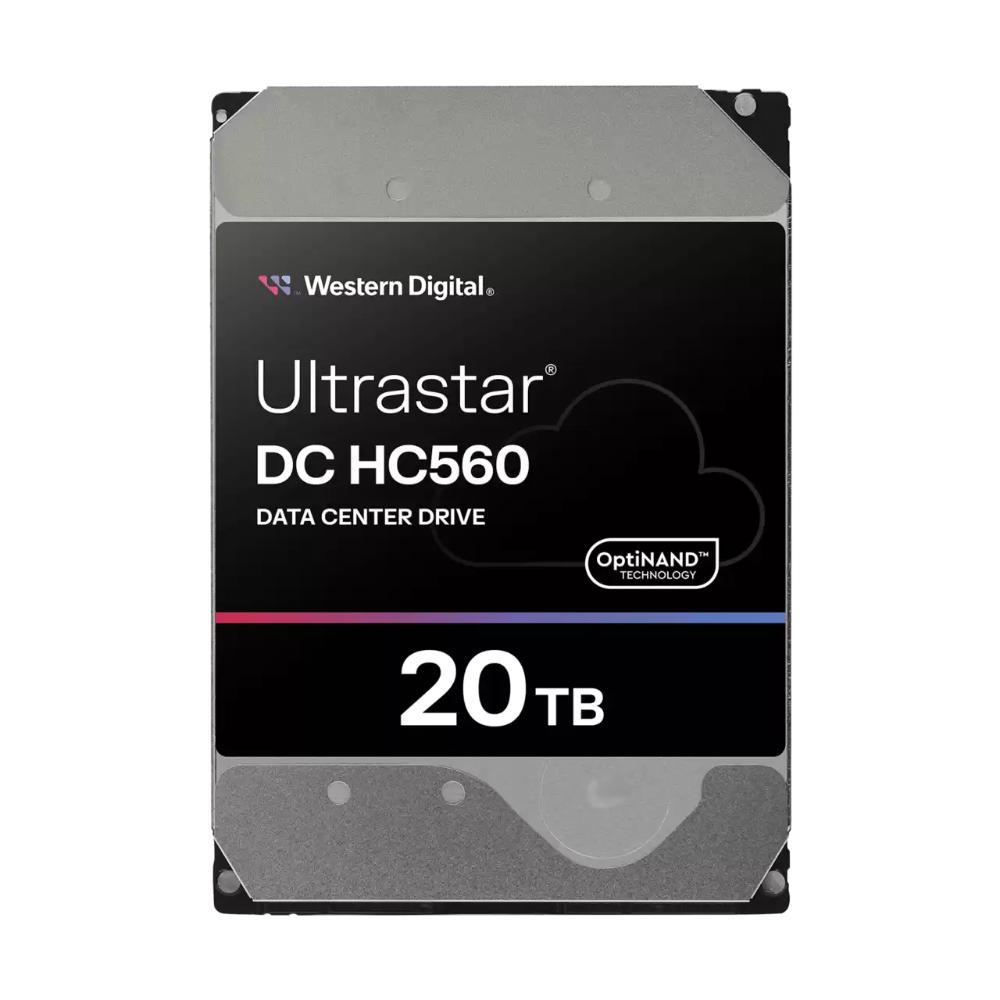

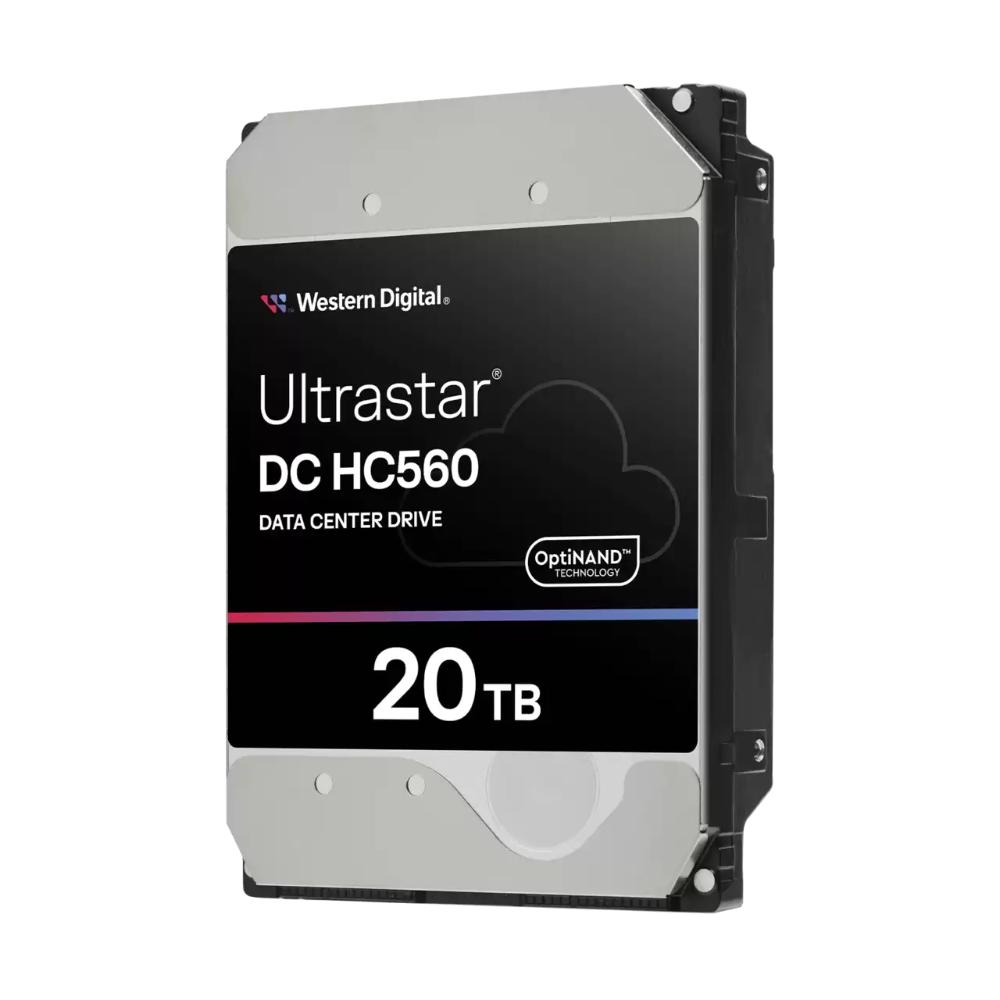

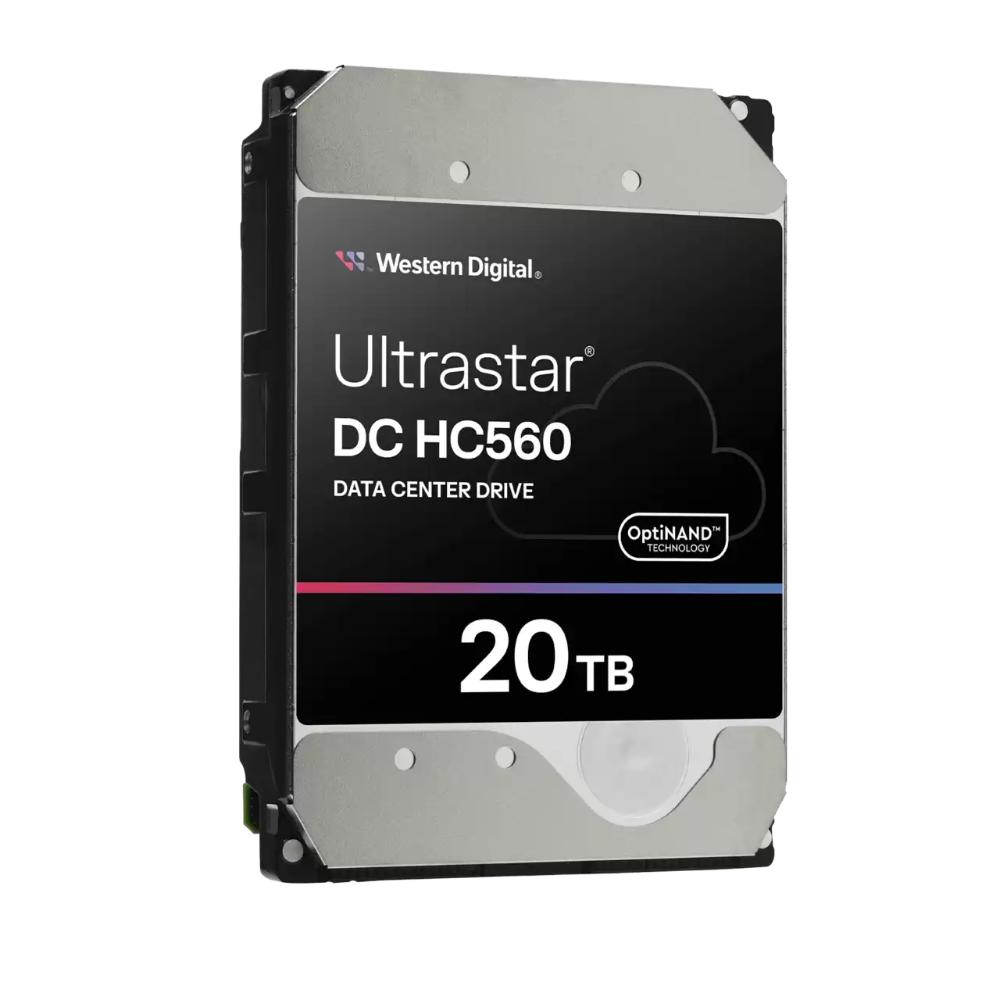

WD Ultrastar DC HC560 20TB | Enterprise SATA HDD | 7200RPM | 512MB Cache | 0F38785

WD Ultrastar DC HC560 20TB | Enterprise SATA HDD | 7200RPM | 512MB Cache | 0F38785

Rs.165,700.00
Rs.165,700.00
Sale Sold out
Shipping calculated at checkout.
CAPACITY
WARRANTY

The Western Digital Ultrastar DC HC560 20TB is a next-generation enterprise hard drive engineered to support hyperscale cloud, data centers, NAS environments, and large-scale surveillance storage. Featuring breakthrough OptiNAND™ technology, this reimagined HDD architecture increases areal density, enhances firmware intelligence, and delivers industry-leading 20TB capacity in a 3.5-inch form factor.

Designed for 24×7 high-intensity workloads, the HC560 combines EAMR (Energy-Assisted Magnetic Recording), Triple-Stage Actuator (TSA), and HelioSeal® helium technology to provide exceptional performance, lower power consumption, and enterprise-grade reliability.

Key Features

Massive 20TB Enterprise Capacity

  • 20TB capacity in 3.5-inch form factor

  • Nine-disk platform (2.2TB per platter)

  • CMR recording format for broad enterprise compatibility

OptiNAND™ Technology

  • Integrates embedded iNAND® UFS flash with HDD

  • Offloads metadata for improved efficiency

  • Enables higher tracks-per-inch (TPI) and greater density

  • Not a hybrid drive — optimized HDD architecture

Enterprise Performance

  • Up to 291MB/s transfer rate

  • 7200 RPM spindle speed

  • 512MB cache

  • Optimized for large-scale data environments

Advanced Data Center Technology

  • Energy-Assisted Magnetic Recording (EAMR)

  • Triple-Stage Actuator (TSA) for precise head positioning

  • HelioSeal® helium-sealed design for lower power per TB

Trusted Reliability

  • Projected 2.5 million hours MTBF

  • 5-Year Limited Warranty

  • Self-Encrypting (SE) model

  • Designed for continuous 24×7 operation

Specifications — WD Ultrastar DC HC560 (0F38785)

General

  • Capacity: 20TB

  • Model Number: 0F38785

  • Form Factor: 3.5-inch

  • Interface: SATA 6Gb/s

  • Security: SE

Performance

  • Transfer Rate: Up to 291MB/s

  • Disk Speed: 7200 RPM

  • Recording Technology: EAMR (CMR)

  • Cache: 512MB

Reliability

  • MTBF: 2.5 Million Hours (projected)

Physical

  • Dimensions: 5.79" × 4" × 1.03"

  • Weight: 690g

Environmental

  • Operating Temperature: 5°C to 60°C

  • Non-Operating Temperature: -40°C to 70°C

Compatibility

  • Windows

  • Windows Server

  • Linux

Warranty

  • 5-Year Limited Warranty

Available Variants

  • 20TB, SAS, SED: 0F38651

  • 20TB, SAS, SE: 0F38652

  • 20TB, SATA, SED: 0F38784

  • 20TB, SATA, SE: 0F38785

Ideal For

  • Hyperscale cloud environments

  • Enterprise storage arrays

  • NAS systems

  • Smart video surveillance storage

  • Large-scale archival and backup

  • Virtualization infrastructure
