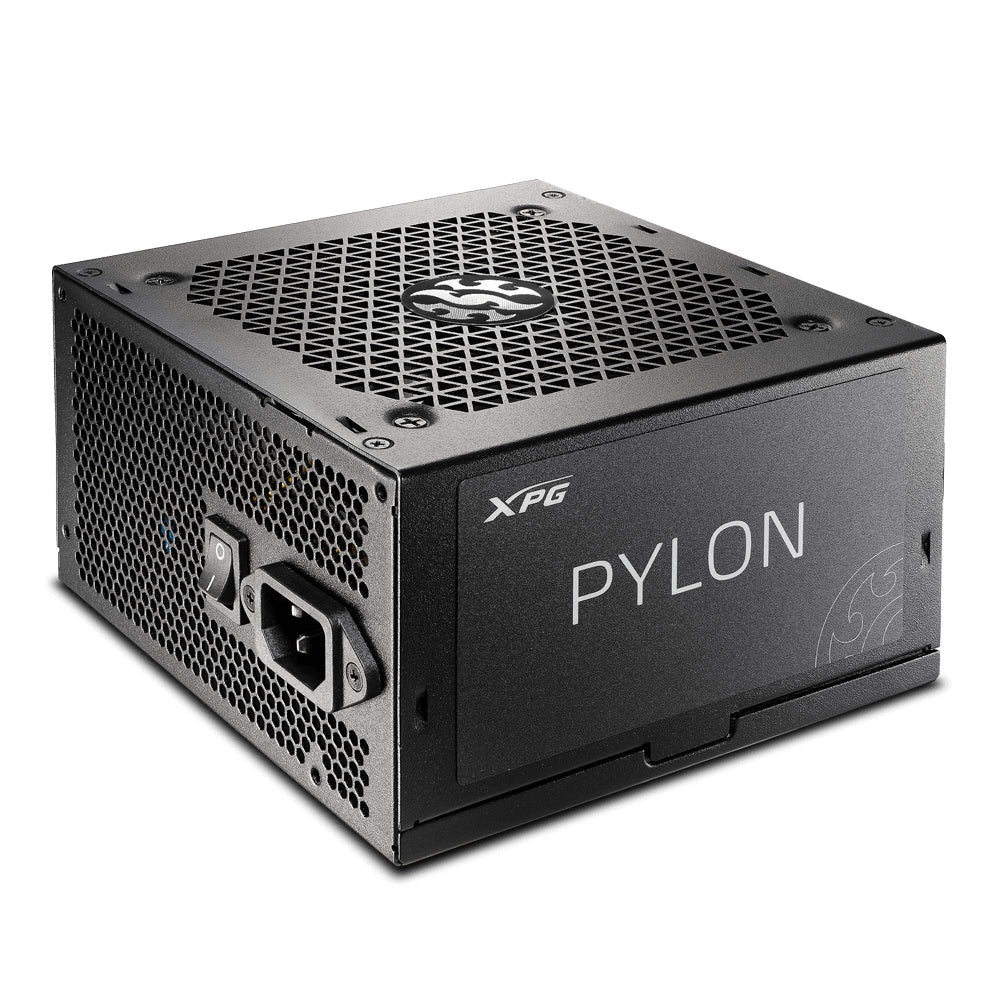

XPG PYLON 650W 80 PLUS Bronze Power Supply Non Modular | Stable Power, Whisper Quiet, Built to Last

XPG PYLON 650W 80 PLUS Bronze Power Supply Non Modular | Stable Power, Whisper Quiet, Built to Last

Rs.15,000.00
Rs.15,000.00
Sale Sold out
Shipping calculated at checkout.
Warranty

Built to deliver raw, uninterrupted energy for gaming and performance PCs, the XPG PYLON 650W PSUs offer high efficiency, solid engineering, and premium-grade reliability. With DC-to-DC circuitry, a quiet 120mm FDB fan, and 80 PLUS Bronze certification, these non-modular power supplies deliver strong performance across mid-to-high-end systems while remaining energy-efficient and cool under pressure.

Whether you're powering a graphics-intensive gaming setup or a 24/7 workstation, the PYLON series ensures your hardware stays safe and stable thanks to its industrial-level 8-way protection system, Cybenetics certification, and Japanese 105°C capacitors.

Consistent +12V DC-to-DC Output

Both the 650W models utilize a 100% +12V DC-to-DC design to maintain voltage regulation and reduce ripple, ensuring cleaner and safer power delivery to critical components like CPUs and GPUs. It supports Intel’s ATX12V 2.52 guideline compliance, making it future-ready and ideal for current-gen processors and GPUs.

80 PLUS Bronze & Cybenetics Certified Efficiency

XPG PYLON delivers reliable efficiency with official 80 PLUS Bronze certification and Cybenetics Silver rating for the 650W model. Whether you’re running at 20%, 50%, or full load, these PSUs maintain strong efficiency and low energy waste, helping to reduce system heat and electricity usage.

Ultra-Quiet 120mm Fluid Dynamic Bearing Fan

Equipped with a 120mm FDB fan that spins at a maximum of 2000 RPM, both models remain whisper-quiet during most tasks and only ramp up during high loads. The fan starts at 700 RPM under light load and ambient temperature, keeping your system cool and silent even during intense operations.

Japanese Capacitors & 8-Tier Industrial Protection

At the core of the PYLON series lies a premium 105°C-rated Japanese capacitor, ensuring long-term stability and peak endurance. Both models come with 8 comprehensive safety features: OVP, OPP, OCP, SCP, UVP, OTP, NLO, and SIP—providing full-spectrum protection against electrical faults.

Connectivity & Power Distribution

The 650W variant come with a full set of power connectors to support multiple GPUs, SATA drives, and peripherals. The 750W model supports dual EPS connectors and more PCI-E & SATA outputs for higher-end or multi-GPU configurations.

Full Specifications

Category 650W Model
Model Name XPG PYLON 650W
Form Factor ATX
Efficiency 80 PLUS Bronze, Cybenetics Silver
DC-to-DC 100% +12V Single Rail
Fan 120mm FDB, 2000 RPM Max
Main Capacitor Japanese 105°C
Protections OVP, OPP, OCP, SCP, UVP, OTP, NLO, SIP
MTBF 100,000 Hours at 25°C
Input Voltage 100–240V
PFC Active, 0.99
Connectors ATX 24-Pin: 1
EPS 8(4+4): 1
EPS 8-Pin: 1
PCI-E 6+2 Pin: 4
SATA: 8
Molex: 3
Floppy: 1






ATX Version Intel ATX 12V V2.4 (compliant with 2.52 timing)
Operating Temp Up to 50°C
Dimensions 140 x 150 x 86mm
Weight 1.87kg (2.38kg with packaging)
Warranty 5 Years
Certifications CE, FCC, CB, UKCA, EAC, TUV, CCC, NOM, BSMI, RCM, KC

Ideal For

  • 650W: Mid-range gaming PCs with a single powerful GPU, content creation rigs, or workstations requiring energy efficiency and stability.

Why Choose XPG PYLON from Mustafa Computers?

At Mustafa Computers, we offer 100% genuine XPG PYLON power supplies with local warranty and competitive pricing. Whether you choose the 650W variant, you’re getting industrial-grade performance backed by trusted support and next-day delivery options across Pakistan.
